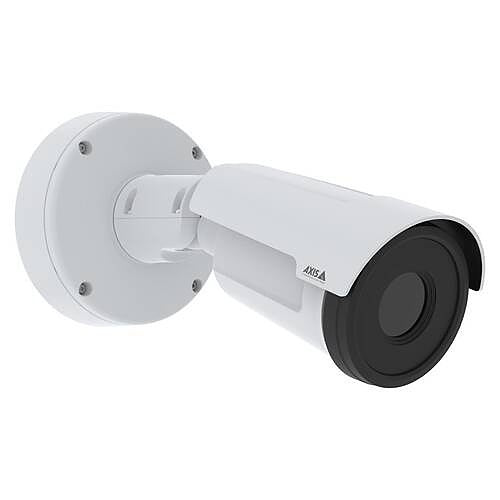

Axis Communications 02945-001 outdoor thermal camera, 7mm

Visit CCTV Cameras
Free Delivery
£ 3,440 42
(Incl. VAT)

About this product

Axis Communications 02945-001 is an outdoor thermal camera from the Q1971-E range.

This robust, halogen-free camera is ideal for perimeter protection and can detect and inspect even in low-contrast scenes, regardless of weather and lighting conditions. With five lens alternatives, it ensures optimal detection for specific requirements. This AI-based camera enables proactive surveillance.

And for enhanced protection, AXIS Perimeter Defender is available. It is based on a powerful platform and supports third-party analytics. It has two I/O ports and with edge-to-edge technology you can, for example, connect a horn speaker to enable audible alarms.

In addition, Axis Edge Vault protects the device and provides FIPS 140-2 Level 2 certified key storage and operations.

Key features

  • Reliable thermal detection 24/7
  • Five lens alternatives
  • Support for AXIS Perimeter Defender
  • Built-In cybersecurity with Axis Edge Vault
  • Compact, robust, and halogen-free
£ 3,440 42
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£3,440.42 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Axis Communications
Manufacturer Part Number
02945-001
Product Series
Q1971-E
Product Type
Thermal cameras
General information
Supported Network Protocols
IPv6
Technical information
Aperture
f/1.18
Connectivity Technology
Wired
Field of View
Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/1.18
Maximum Frame Rate
30fps
Minimum Focal Length
7.00mm
Video Formats
H.264 / AVC
Camera
Image Sensor Type
Uncooled Microbolometer
Certifications
CE marking
Yes
Ingress protection
IP66, IP67
Display & graphics
Image Sensor Size
384 x 288
Number of Sensors
1
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-40°C
Operating Humidity
100%
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
7mm
Lens Included
Yes
Maximum Focal Length
35.00mm
Memory
Memory Card Supported
Yes
Physical characteristics
Colour
White
Form Factor
Bullet
Power description
Input Voltage
12-28V DC
Maximum Power Consumption
13.00W
Power over Ethernet (PoE)
Yes
Storage
Storage Type
SD Card
Miscellaneous
Environmental certification
IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 510.7), MIL-STD-810H (Method 514.8), MIL-STD-810H (Method 516.8), MIL-STD-810H (Method 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Input Voltage
12-28V DC
Package Contents
Cable gaskets; Camera; Connector guard; Drill template; Installation guide; Owner authentication key; RESISTORX L-key; Terminal block connector; TORX L-keys
Specifications
General information
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Interfaces/ports
Lens
Memory
Physical characteristics
Power description
Storage
Miscellaneous
Attributes

Specifications

Brand Name Axis Communications
Manufacturer Part Number 02945-001
Product Series Q1971-E
Product Type Thermal cameras

General information

Supported Network Protocols IPv6

Technical information

Aperture f/1.18
Connectivity Technology Wired
Field of View Horizontal, Vertical
Lens Type Fixed
Maximum Aperture f/1.18
Maximum Frame Rate 30fps
Minimum Focal Length 7.00mm
Video Formats H.264 / AVC

Camera

Image Sensor Type Uncooled Microbolometer

Certifications

CE marking Yes
Ingress protection IP66, IP67

Display & graphics

Image Sensor Size 384 x 288
Number of Sensors 1

Environmental conditions

Maximum Operating Temperature 60°C
Minimum Operating Temperature -40°C
Operating Humidity 100%

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 7mm
Lens Included Yes
Maximum Focal Length 35.00mm

Memory

Memory Card Supported Yes

Physical characteristics

Colour White
Form Factor Bullet

Power description

Input Voltage 12-28V DC
Maximum Power Consumption 13.00W
Power over Ethernet (PoE) Yes

Storage

Storage Type SD Card

Miscellaneous

Environmental certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 510.7), MIL-STD-810H (Method 514.8), MIL-STD-810H (Method 516.8), MIL-STD-810H (Method 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)
Impact protection IK10
Indoor or outdoor use Outdoor

Attributes

Input Voltage 12-28V DC
Package Contents Cable gaskets; Camera; Connector guard; Drill template; Installation guide; Owner authentication key; RESISTORX L-key; Terminal block connector; TORX L-keys

Axis Communications 02945-001 outdoor thermal camera

Axis Communications 02945-001 outdoor thermal camera, 7mm

Who this is for

For the installer — this is the outdoor thermal camera supplied under Axis Communications part number 02945-001. Specify it by that part number.

In plain English: this is an outdoor thermal camera made by Axis Communications. The part number 02945-001 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this outdoor thermal camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

Axis states a 5-year manufacturer's warranty for this model.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact outdoor thermal camera I have been quoted? Check the manufacturer part number 02945-001 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Axis Communications 02945-001 outdoor thermal camera
Axis Communications

Axis Communications 02945-001 outdoor thermal camera, 7mm

£3,440.42

Axis Communications 02945-001 is an outdoor thermal camera from the Q1971-E range.

This robust, halogen-free camera is ideal for perimeter protection and can detect and inspect even in low-contrast scenes, regardless of weather and lighting conditions. With five lens alternatives, it ensures optimal detection for specific requirements. This AI-based camera enables proactive surveillance.

And for enhanced protection, AXIS Perimeter Defender is available. It is based on a powerful platform and supports third-party analytics. It has two I/O ports and with edge-to-edge technology you can, for example, connect a horn speaker to enable audible alarms.

In addition, Axis Edge Vault protects the device and provides FIPS 140-2 Level 2 certified key storage and operations.

Key features
