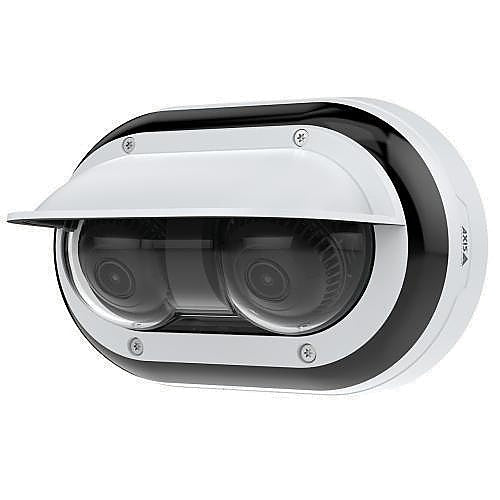

Axis Communications 02944-001 panoramic camera, 8MP
About this product
Axis Communications 02944-001 is a panoramic camera.
Compact in design, this dual-sensor, multidirectional camera offers two 8MP channels and a frame rate of 30 fps to deliver excellent wide-angle overviews and zoomed-in detailed coverage 24/7 - even in challenging light conditions. Featuring 360 deg IR illumination with individually controllable LEDs, this panoramic camera delivers clear images even in low light or complete darkness as well as undistorted colors during the day. And Lightfinder and Forensic WDR, ensure sharp, clear images in challenging or poor light conditions.
With two 4K channels and a frame rate of 30 fps, you can capture both wide-angle and zoomed-in, detailed views. And, thanks to 2.5x zoom, it delivers wide views, and you can zoom in for all the details. Furthermore, audio input makes it possible to add audio capabilities. his compact, multidirectional camera is perfect when you need to see in two directions simultaneously.
It offers flexible positioning of both varifocal camera heads, and you can control each head individually allowing you to monitor scenes in two directions in wide or zoomed-in views. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together. This is the perfect setup for straight hallways or at the corners of an intersection where it can look in both directions simultaneously.
In addition, this IP66- and IP67-rated device includes a weather and sun shield, so image quality isn’t impacted by sun reflections or water drops. Built on ARTPEC-8, this high-performance, AI-based camera enables improved processing and storage capabilities allowing you to collect and analyze even more data than before-on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.
Thanks to AXIS Object Analytics, AXIS P4708-PLVE can detect and classify humans, vehicles, and types of vehicles-all tailored to your specific needs. In addition, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Key features
- 2x4K, multidirectional camera, with one IP address
- Support for AI analytics
- 360 deg IR illumination and 2.5x zoom
- Axis Lightfinder and Forensic WDR
- Axis Edge Vault safeguards the device
If you are matching this to an existing installation, work from the 02944-001 part number rather than the description.
Specifications
General information
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Memory
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 02944-001 |
| Product Type | Fixed dome cameras |
General information
| Packaged Quantity | 1 |
|---|---|
| Supported Network Protocols | IPv6 |
Technical information
| Aperture | f/1.9-3.24 |
|---|---|
| Connectivity Technology | Wired |
| Effective resolution | 8MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.9 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.20mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 2.5x |
| Video Formats | H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, H.265 Main Profile, Motion JPEG, Zipstream |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 15.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 3840 x 2160 |
|---|---|
| Number of Sensors | 2 |
Environmental conditions
| Maximum Operating Temperature | 50°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 100% |
Exposure
| Longest Shutter Speed | 2 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/16000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.26-8.12mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 8.10mm |
| Minimum Aperture | f/3.2 |
Memory
| Memory Card Supported | Yes |
|---|
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Material | Plastic |
| Weight | 975.00g |
Power description
| Maximum Power Consumption | 19.00W |
|---|---|
| Power over Ethernet (PoE) | Yes |
Product information
| Diameter | 55.10mm |
|---|---|
| Mount Type | Junction Box Mount, Tripod Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Environmental certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 512.6) |
|---|---|
| Environmental status | Yes |
| Features | 2D Noise Reduction, 3D Noise Reduction, Auto Gain Control, Cross Line Detection, Day/Night, Face Detection, Forensic WDR, Human Detection, Privacy Masking, Vehicle Detection |
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Package Contents | Cable gaskets; Camera; Connector guard; Connector kit; Installation guide; Weathershield; Windows decoder 1-user license |
|---|---|
| Weight | 975.00g |
