Axis Communications 02635-001 panoramic IP camera, 32MP

Free Delivery
£ 2,238 62
(Incl. VAT)

About this product

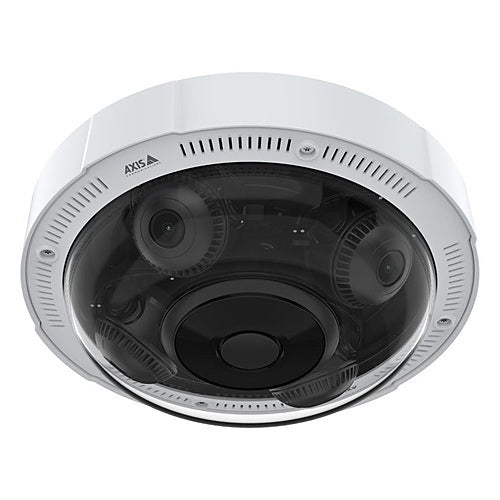

Axis Communications 02635-001 is a panoramic IP camera from the P37 range.

This multidirectional camera offers four channels with 4K per channel to deliver excellent overviews and detailed coverage. It includes 360° IR illumination for clear, reflection-free footage and excellent image quality even in low light or complete darkness. This flexible camera offers various mounting options.

For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. With highly efficient power consumption, it ensures lower operating costs. It also supports powerful analytics based on deep learning.

Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, guarantees the device’s integrity and protects it from unauthorized access.

Key features

  • 4x 4K at 15 fps per channel
  • 360° IR illumination with individually controlled LEDs
  • Flexible mounting options
  • Support for advanced analytics
  • Axis Edge Vault safeguards the device

If you are matching this to an existing installation, work from the 02635-001 part number rather than the description.

£ 2,238 62
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£2,238.62 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Axis Communications
Manufacturer Part Number
02635-001
Product Series
P37
Product Type
Fixed dome cameras
General information
Supported Network Protocols
IPv6
Technical information
Aperture
f/1.9-3.2
Connectivity Technology
Wired
Effective resolution
32MP
Field of View
Horizontal, Vertical
Lens Type
Varifocal
Maximum Aperture
f/1.9
Maximum Frame Rate
15fps
Minimum Focal Length
3.20mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
2.5x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
15.00m
Certifications
CE marking
Yes
Ingress protection
IP66, IP67
Display & graphics
Maximum Illumination
0lux
Maximum video resolution
3840 x 2160
Number of Sensors
4
Environmental conditions
Maximum Operating Temperature
50°C
Minimum Operating Temperature
-30°C
Operating Humidity
100%
Exposure
Longest Shutter Speed
2 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/16000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
3.18-8.12mm
Lens Included
Yes
Maximum Focal Length
8.10mm
Minimum Aperture
f/3.2
Memory
Memory Card Supported
Yes
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Impact Resistant
Form Factor
Dome
Height
91.40mm
Weight
2.00kg
Power description
Maximum Power Consumption
26.00W
Power over Ethernet (PoE)
Yes
Product information
Diameter
254.00mm
Mount Type
Conduit Box Mount, Junction Box Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
Cloud-Only Storage, SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Environmental certification
IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK09, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 512.6), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), VDMA 24364
Environmental status
Yes
Features
3D Noise Reduction, Built-in IR LED, Day/Night, HTTPS Encryption, Human Detection, Ingress Protection, Motion Detection, Privacy Protection, Vehicle Detection, White Balance
Impact protection
IK09
Indoor or outdoor use
Outdoor
Attributes
Package Contents
1 X P3738-PLE Panoramic Camera 4x 4K Multidirectional With Deep Learning; 1 X installation guide; 1 X connector guard; 1 X cable gaskets
Weight
2.00kg

Specifications

Brand Name Axis Communications
Manufacturer Part Number 02635-001
Product Series P37
Product Type Fixed dome cameras

General information

Supported Network Protocols IPv6

Technical information

Aperture f/1.9-3.2
Connectivity Technology Wired
Effective resolution 32MP
Field of View Horizontal, Vertical
Lens Type Varifocal
Maximum Aperture f/1.9
Maximum Frame Rate 15fps
Minimum Focal Length 3.20mm
Night Vision Yes
Night Vision Type Infrared (IR)
Optical Zoom 2.5x
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual
Video Resolution 1280 x 720
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 15.00m

Certifications

CE marking Yes
Ingress protection IP66, IP67

Display & graphics

Maximum Illumination 0lux
Maximum video resolution 3840 x 2160
Number of Sensors 4

Environmental conditions

Maximum Operating Temperature 50°C
Minimum Operating Temperature -30°C
Operating Humidity 100%

Exposure

Longest Shutter Speed 2 Second
Minimum Illumination 0.0000lux
Shortest Shutter Speed 1/16000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 3.18-8.12mm
Lens Included Yes
Maximum Focal Length 8.10mm
Minimum Aperture f/3.2

Memory

Memory Card Supported Yes

Network & communication

Remote Management Yes

Physical characteristics

Colour White
Durability Impact Resistant
Form Factor Dome
Height 91.40mm
Weight 2.00kg

Power description

Maximum Power Consumption 26.00W
Power over Ethernet (PoE) Yes

Product information

Diameter 254.00mm
Mount Type Conduit Box Mount, Junction Box Mount

Storage

Recording Formats H.264, H.265 / HEVC
Storage Type Cloud-Only Storage, SD Card

Video

Maximum Resolution 1280 x 720

Miscellaneous

Environmental certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK09, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 512.6), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), VDMA 24364
Environmental status Yes
Features 3D Noise Reduction, Built-in IR LED, Day/Night, HTTPS Encryption, Human Detection, Ingress Protection, Motion Detection, Privacy Protection, Vehicle Detection, White Balance
Impact protection IK09
Indoor or outdoor use Outdoor

Attributes

Package Contents 1 X P3738-PLE Panoramic Camera 4x 4K Multidirectional With Deep Learning; 1 X installation guide; 1 X connector guard; 1 X cable gaskets
Weight 2.00kg

Axis Communications 02635-001 panoramic IP camera

Axis Communications 02635-001 panoramic IP camera, 32MP

Who this is for

For the installer — this is the panoramic IP camera supplied under Axis Communications part number 02635-001. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a panoramic IP camera made by Axis Communications. The part number 02635-001 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this panoramic IP camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact panoramic IP camera I have been quoted? Check the manufacturer part number 02635-001 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against 02635-001 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
