Axis Communications 01470-001 pole mount, White
About this product
Axis Communications 01470-001 is a pole mount from the T91 range.

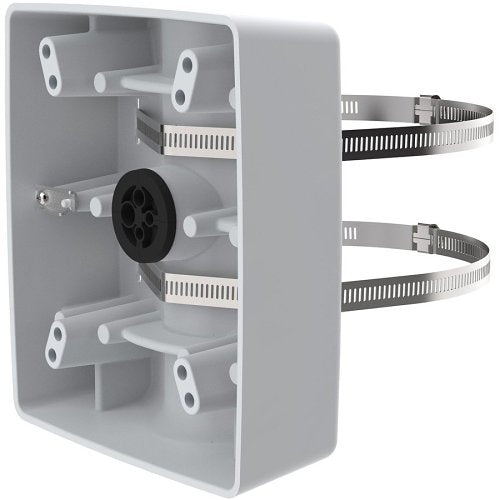

AXIS T91B57 Pole Mount is a versatile and robust, high-quality pole mount. While it can be used indoors, it's particularly appropriate for outdoor installations under harsher conditions. The high-quality pole mount is designed for use with selected AXIS T91 wall mounts and AXIS T98A cabinet series.
It is easily adjustable to fit poles with a diameter between 100-410 mm (4-16 in). AXIS T91B57 Pole Mount has an IK10 rating for impact resistance, which safeguards it against vandalism. And it features a closed back and a cable gasket, which means it's also protected against insect infestation
Key features
- Impact-resistant to prevent vandalism (IK10)
- Cable gasket to prevent insect infestation
- Robust and safe
If you are matching this to an existing installation, work from the 01470-001 part number rather than the description.
Specifications
Technical information
Physical characteristics
Miscellaneous
Attributes
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 01470-001 |
| Product Series | T91 |
| Product Type | Mounts |
Technical information
| Device Supported | Relay Module, Surveillance Cabinet |
|---|---|
| Maximum Load Capacity | 30.00kg |
Physical characteristics
| Colour | White |
|---|---|
| Depth | 6.70cm |
| Height | 21.40cm |
| Material | Aluminium |
| Weight | 1.40kg |
| Width | 19.00cm |
Miscellaneous
| Compatibility | AXIS A9188-VE Relay Module AXIS Cabinets: T98A15-VE T98A15-VE T98A16-VE T98A16-VE T98A17-VE T98A17-VE T98A18-VE T98A18-VE |
|---|---|
| Indoor or outdoor use | Outdoor |
| Package Contents | T91B57 Pole Mount Installation Guide Insect-proof Cable Gasket Stainless Steel Straps |
Attributes
| Compatibility | AXIS A9188-VE Relay Module AXIS Cabinets: T98A15-VE T98A15-VE T98A16-VE T98A16-VE T98A17-VE T98A17-VE T98A18-VE T98A18-VE |
|---|---|
| Device Supported | Relay Module, Surveillance Cabinet |
| Package Contents | T91B57 Pole Mount Installation Guide Insect-proof Cable Gasket Stainless Steel Straps |
| Weight | 1.40kg |
Axis Communications 01470-001 pole mount, White
