Axis Communications 01473-001 pole mount, White
About this product
Axis Communications 01473-001 is a pole mount from the T91 range.

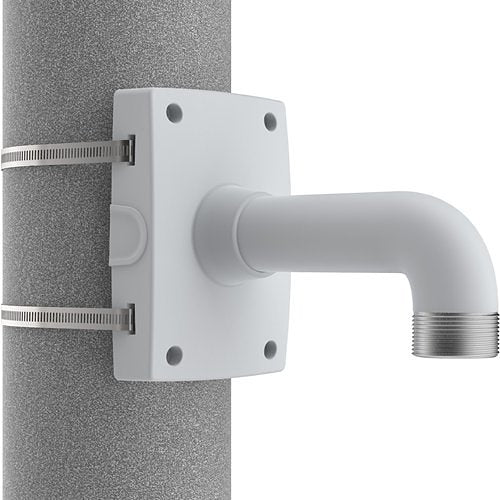

The outdoor-ready AXIS T91B67 Pole Mount has a 1.5" NPS threading for a wide range of Axis pendant kits for Axis fixed dome and panoramic cameras. Thanks to its impact-resistant and outdoor-proven material, the mount can be used in both indoor and outdoor environments. AXIS T91B67 is intended for poles with a diameter between 65-165 mm (2 1/2-6 1/2 in), and also for beams.
It features 3/4" conduit side entries for protected cable runs, and a closed back with cable gasket for protection against insect infestation. The pole mount is tightened with two marine-grade (SS316L) stainless steel straps with TX30 screw interface for ease and secure installation.
Key features
- Robust and safe pole installation
- Suitable for indoor and outdoor use
- Impact-resistant to prevent vandalism
- Cable gasket to prevent insect infestation
- Support for 1.5" NPS threaded Axis pendant kits
If you are matching this to an existing installation, work from the 01473-001 part number rather than the description.
Specifications
Miscellaneous
Physical characteristics
Technical information
Attributes
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 01473-001 |
| Product Series | T91 |
| Product Type | Mounts |
Miscellaneous
| Environmental status | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 25.20cm |
| Height | 19.40cm |
| Weight | 1.20kg |
| Width | 13.40cm |
Technical information
| Device Supported | Network Camera |
|---|---|
| Maximum Load Capacity | 15.00kg |
Attributes
| Device Supported | Network Camera |
|---|---|
| Indoor or outdoor use | Outdoor |
| Weight | 1.20kg |
