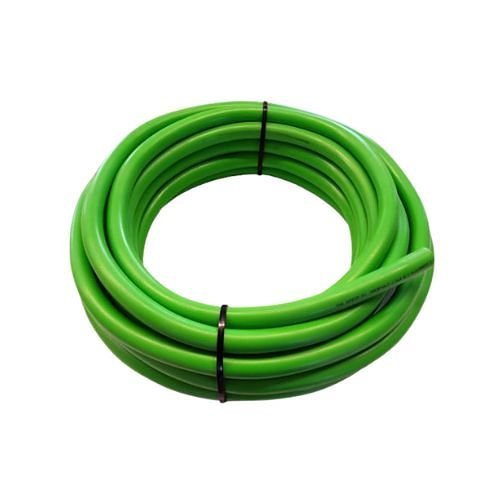

Axis Communications 01545-001 power cable, 95m
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Axis Communications 01545-001 is a power cable.
This armored data and power cable is specially designed for hazardous areas in accordance with EN 60079-14 for use in arctic temperatures (-60 °C/140 °F). The cable is ideal for wiring explosion-protected network cameras in AXIS ExCam Series. ASKDP03-T is a high-speed cable for Industrial Ethernet for fixed installations in dry, wet, or damp rooms.
The cable meets the transmission characteristics for Category 6 of IEC 61156-5 Edition 2. It is halogen-free and resistant to mechanical stress, oils, and greases.
Key features
- Network and power cable
- Ex-certified cable glands included
- For hazardous areas
If you are matching this to an existing installation, work from the 01545-001 part number rather than the description.
-
Download
- 01545-001 — Product Manual
Specifications
Technical information
Physical characteristics
Miscellaneous
Attributes
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 01545-001 |
| Product Type | Data Transfer/Power Cable |
Technical information
| American Wire Gauge | 22AWG |
|---|---|
| Device Supported | Surveillance Camera |
| Shielding | Yes |
Physical characteristics
| Cable Length | 95.00m |
|---|---|
| Colour | Green |
Miscellaneous
| Compatibility | Axis Communication ExCam XPT Q6055 Camera |
|---|---|
| Features | Flame Retardant, PoE, UV Resistant |
| Package Contents | 1x Cat 6 RJ45 connector , ASKDP03-T Armored Cable ExCam 95 m 1x Ex e M20x1.5 cable gland - to connect to EXTB-3 Junction Box ExCam 1x Ex d M20x1.5 cable gland - to connect to Ex Connection Rail PoE PS24 (if required) |
Attributes
| Compatibility | Axis Communication ExCam XPT Q6055 Camera |
|---|---|
| Device Supported | Surveillance Camera |
| Package Contents | 1x Cat 6 RJ45 connector , ASKDP03-T Armored Cable ExCam 95 m 1x Ex e M20x1.5 cable gland - to connect to EXTB-3 Junction Box ExCam 1x Ex d M20x1.5 cable gland - to connect to Ex Connection Rail PoE PS24 (if required) |
