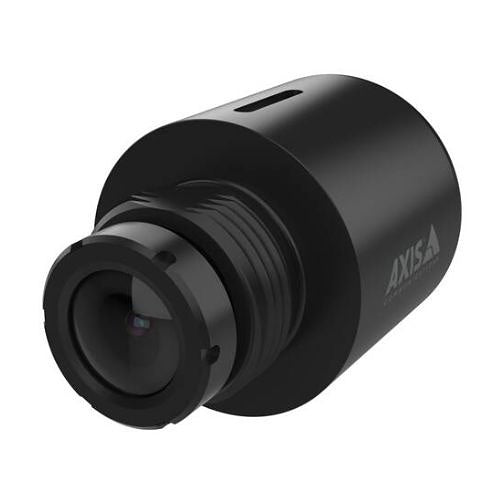

Axis Communications 02868-021 sensor, 2592 x 1944
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Axis Communications 02868-021 is a pack of 8 sensors from the F21 range.
The price shown is for the whole pack of 8.
AXIS F2107-RE Standard sensor 8P is a bulk pack of 8x 5Mp Standard sensor. AXIS F2137-RE has a 110° Horizontal Field of View and 2.8mm focal length. AXIS F2107-RE is a rugged outdoor sensor unit.
It is both IP66 and IP6K9K certified. AXIS F2107-RE is compatible with all AXIS F91 main units. All the accessories available for AXIS F2105-RE are also compatible with AXIS F2107-RE.
No cable is included with AXIS F2107-RE fisheye sensor. AXIS TU600X cables shall be purchased separately. No mounting accessory is included with AXIS F2107-RE fisheye sensor.
Mounting accessories shall be purchased separately.
Key features
- 5MP Standard Sensor, 8-Pack
- 110° Horizontal Field of View
- 2.8mm Focal Length
- Rugged Outdoor Sensor Unit
- IP66 and IP6K9K Certified
- Compatible with AXIS F91 Main Units
- Supports AXIS F2105-RE Accessories
-
Download
- 02868-021 — Product Manual
Specifications
General information
Technical information
Camera
Certifications
Display & graphics
Exposure
Lens
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 02868-021 |
| Product Series | F21 |
| Product Type | Sensor units |
| Pack Quantity | 8 |
General information
| Packaged Quantity | 8 |
|---|
Technical information
| Aperture | f/2.2 |
|---|---|
| Field of View | Horizontal, Vertical |
| Lens Mount Type | M12 (S-Mount) |
| Maximum Frame Rate | 60fps |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP66, IP67, IP6K9K |
|---|
Display & graphics
| Maximum video resolution | 2592 x 1944 |
|---|
Exposure
| Minimum Illumination | 0.2500lux |
|---|
Lens
| Focal Length | 2.8mm |
|---|
Power description
| Maximum Power Consumption | 2.00W |
|---|
Miscellaneous
| Compatibility | All AXIS F91 main units |
|---|---|
| Environmental certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC TR 60721-4-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP66, IEC/EN 60529 IP67, ISO 20653 IP6K9K, ISO 21207 (Method B), NEMA 250 Type 4X |
| Indoor or outdoor use | Outdoor |
Attributes
| Compatibility | All AXIS F91 main units |
|---|
