Axis Communications 01026-001 sensor unit, 2MP

Free Delivery
£ 173 71
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Axis Communications 01026-001 is a sensor unit from the FA range.

AXIS FA3105-L Eyeball Sensor Unit is a discreet flat-faced sensor unit with eyeball design for optimized installation flexibility. With built-in IR illumination and automatic IR cut filter, it is a true day-and-night device, ideally suited for installation in banks, shops, and gas stations that need video around the clock. For use with an AXIS FA Main Unit, AXIS FA3105-L offers HDTV 1080p for excellent video quality, and features Forensic WDR for clarity in all light conditions.

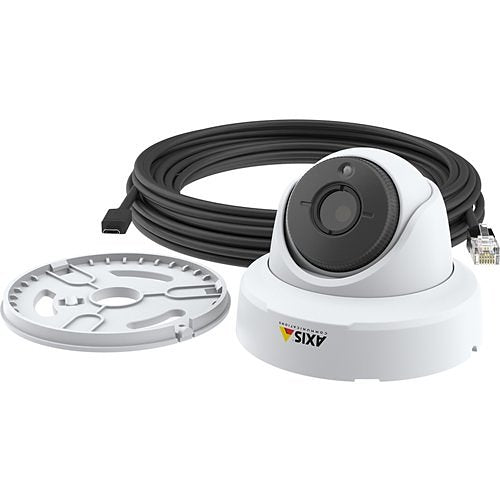

The unit comes with a plate for easy surface mounting and an 8 m (26 ft) cable for connection to a main unit.

Key features

  • Eyeball design for optimized installation flexibility
  • Built-in IR for video in complete darkness
  • Forensic WDR
  • Corridor format for vertically oriented coverage areas
  • For remote surveillance needs, this network camera is best suited
  • Up to 49.21 ft of night vision
  • Features RGB CMOS sensor
  • Up to 1920 x 1080 resolution for surveillance in real-time

If you are matching this to an existing installation, work from the 01026-001 part number rather than the description.

£ 173 71
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£173.71 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Axis Communications
Manufacturer Part Number
01026-001
Product Series
FA
Product Type
Sensor units
Technical information
Aperture
f/2.0
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/2
Maximum Frame Rate
30fps
Minimum Focal Length
3.13mm
Night Vision
Yes
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
15.00m
Certifications
CE marking
Yes
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
50°C
Minimum Operating Temperature
-20°C
Operating Humidity
85%
Exposure
Longest Shutter Speed
1/30 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/32500 Second
Lens
Focal Length
3.13mm
Lens Included
Yes
Maximum Focal Length
3.13mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Form Factor
Eyeball
Weight
88.00g
Power description
Maximum Power Consumption
2.00W
Product information
Diameter
72.70mm
Mount Type
Surface Mount
Video
Maximum Resolution
1280 x 720
Miscellaneous
Environmental certification
IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP3X
Features
Built-in IR LED, Day/Night
Indoor or outdoor use
Indoor
Attributes
Weight
88.00g

Specifications

Brand Name Axis Communications
Manufacturer Part Number 01026-001
Product Series FA
Product Type Sensor units

Technical information

Aperture f/2.0
Connectivity Technology Wired
Effective resolution 2MP
Field of View Horizontal, Vertical
Lens Type Fixed
Maximum Aperture f/2
Maximum Frame Rate 30fps
Minimum Focal Length 3.13mm
Night Vision Yes
Video Resolution 1280 x 720
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 15.00m

Certifications

CE marking Yes

Display & graphics

Maximum video resolution 1920 x 1080

Environmental conditions

Maximum Operating Temperature 50°C
Minimum Operating Temperature -20°C
Operating Humidity 85%

Exposure

Longest Shutter Speed 1/30 Second
Minimum Illumination 0.0000lux
Shortest Shutter Speed 1/32500 Second

Lens

Focal Length 3.13mm
Lens Included Yes
Maximum Focal Length 3.13mm

Network & communication

Remote Management Yes

Physical characteristics

Colour White
Form Factor Eyeball
Weight 88.00g

Power description

Maximum Power Consumption 2.00W

Product information

Diameter 72.70mm
Mount Type Surface Mount

Video

Maximum Resolution 1280 x 720

Miscellaneous

Environmental certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP3X
Features Built-in IR LED, Day/Night
Indoor or outdoor use Indoor

Attributes

Weight 88.00g

Axis Communications 01026-001 sensor unit

Axis Communications 01026-001 sensor unit, 2MP

Who this is for

For the installer — this is the sensor unit supplied under Axis Communications part number 01026-001. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a sensor unit made by Axis Communications. The part number 01026-001 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this sensor unit is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact sensor unit I have been quoted? Check the manufacturer part number 01026-001 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against 01026-001 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Axis Communications 01026-001 sensor unit
Axis Communications

Axis Communications 01026-001 sensor unit, 2MP

£173.71

Please note: this is a non-returnable item (excluding faulty goods)

Axis Communications 01026-001 is a sensor unit from the FA range.

AXIS FA3105-L Eyeball Sensor Unit is a discreet flat-faced sensor unit with eyeball design for optimized installation flexibility. With built-in IR illumination and automatic IR cut filter, it is a true day-and-night device, ideally suited for installation in banks, shops, and gas stations that need video around the clock. For use with an AXIS FA Main Unit, AXIS FA3105-L offers HDTV 1080p for excellent video quality, and features Forensic WDR for clarity in all light conditions.

The unit comes with a plate for easy surface mounting and an 8 m (26 ft) cable for connection to a main unit.

Key features

If you are matching this to an existing installation, work from the 01026-001 part number rather than the description.
