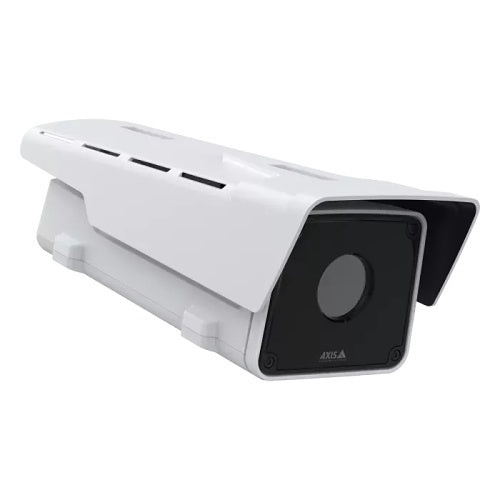

Axis Communications 02605-001 thermal box camera, 800 x 600
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Axis Communications 02605-001 is a thermal box camera from the Q21 range.
Q2112-E is an ARTPEC 8 based VGA resolution thermal camera with exceptionally high thermal sensitivity (low NETD-value). It comes with a a variety of lens options for long range surveillance. Please note that lenses are not user changeable so order the correct version!
Robust and impact-resistant (IK10 and IP66/67), it includes built-in cybersecurity features to help safeguard your system. The product is halogen free. Edge-to-edge functionality lets you connect network speakers and other Axis network devices.
Q2112-E can be PT-mounted (PT head sold separately). When PT-mounted, Q2112-E supports guard tour, giving you to monitor very large and complex scenes. No mounting accessory is included so an arm or a PT-unit must be ordered separately.
Key features
- VGA resolution thermal camera with high sensitivity
- 19mm lens for long-range surveillance
- Robust, impact-resistant design (IK10, IP66/67)
- Built-in cybersecurity features
- Halogen-free construction
- Edge-to-edge functionality for device connectivity
- Supports PT-mounting and guard tour
- Lenses are not user changeable
- No mounting accessory included
-
Download
- 02605-001 — Product Manual
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Lens
Physical characteristics
Power description
Product information
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 02605-001 |
| Product Series | Q21 |
| Product Type | Thermal cameras |
Technical information
| Aperture | f/1 |
|---|---|
| Field of View | Horizontal |
| Maximum Aperture | f/1.2 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 10.00mm |
| Motion Detection | Yes |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
Camera
| Image Sensor Type | Uncooled Microbolometer |
|---|
Certifications
| Ingress protection | IP66, IP67 |
|---|
Display & graphics
| Maximum video resolution | 800 x 600 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 10-100% |
| Operating Temperature (T-T) | -40-60°C |
Lens
| Focal Length | 10mm, 19mm, 25mm, 35mm, 60mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 60.00mm |
| Minimum Aperture | f/1 |
Physical characteristics
| Colour | White |
|---|
Power description
| Input Voltage | 10-28V DC |
|---|
Product information
| Mount Type | Wall Mount |
|---|
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Environmental certification | CE, FCC, UL |
|---|---|
| Environmental status | Yes |
| Impact protection | IK10 |
Attributes
| Input Voltage | 10-28V DC |
|---|
