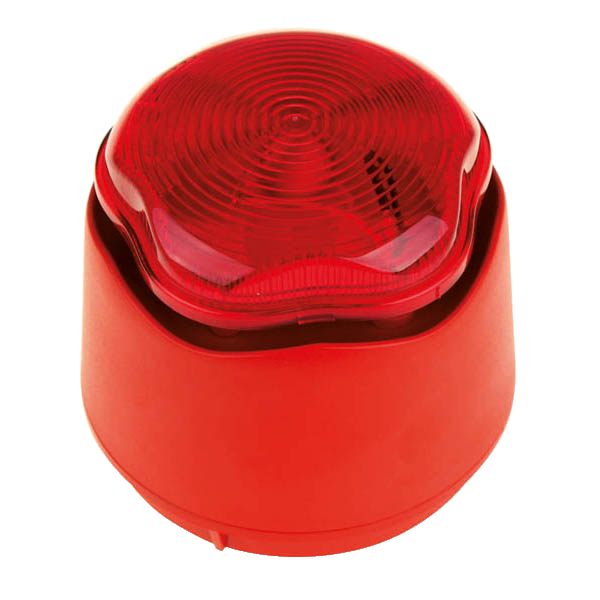

Banshee CB-1R Combined Red Banshee Sounder + Strobe
£
60
23
(Incl. VAT)
3 Years Warranty
combined RED BANSHEE sounder + strobe
About this product
About this product
The Banshee CB-1R, from ESP's Fire Protection range, is a red banshee sounder and strobe for conventional 4-wire sounder circuits. It has 32 user selectable tones and a choice of 3 volume levels, its LED colour is red with a flash rate of 60/minute, and it is approved to EN54-3.
Key features
- Suitable for conventional 4-wire sounder circuits
- 32 user selectable tones; 3 volume levels: low (-20dBA), medium (-10dBA) and high
- Sound output @ 1m: 88 - 110 dB
- Red LED, flash rate 60/minute
- Easy push and twist lockable base; side and rear cable entry
- Operating voltage 9 - 30 V DC
- Approved to EN54-3
- Red ABS housing, ø90 x 90 mm
Frequently asked questions
Which circuits is the CB-1R for?
Conventional 4-wire sounder circuits.
How many tones and volume levels does it have?
32 user selectable tones and 3 volume levels: low (-20dBA), medium (-10dBA) and high.
How loud is it?
Sound output at 1m is 88 - 110 dB.
What voltage does it need?
9 - 30 V DC.
Which EN54 part is it approved to?
EN54-3.
-
Download
- CB-1R Tech Sheet
£
60
23
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø90 x 90
Colour
Red
Materials
Housing: ABS
LED colour
Red
Flash Rate
60/Minute
Warranty (Years)
3
Operating Voltage (V DC)
9 - 30
Cable Size (mm²)
0.28 - 2.5
Current Consumption (Sounder)(mA)
3 - 39
Current Consumption (Strobe)(mA)
12 (@12V DC), 16 (@24V DC)
Sound Output @ 1m (db)
88 - 110
Operating Temperature (°C)
-20 to +70
Weight
0.3 kg
GTIN
5060224101094
Commodity Code
8531103000
Number of Available Tones
32
Volume Levels
3; Low (-20dBA) , Medium (-10dBA) & High
Wiring Type
4-Wire Conventional
Dimensions
Dimensions (mm)
ø90 x 90
Specifications
| Dimensions (mm) | ø90 x 90 |
|---|---|
| Colour | Red |
| Materials | Housing: ABS |
| LED colour | Red |
| Flash Rate | 60/Minute |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 9 - 30 |
| Cable Size (mm²) | 0.28 - 2.5 |
| Current Consumption (Sounder)(mA) | 3 - 39 |
| Current Consumption (Strobe)(mA) | 12 (@12V DC), 16 (@24V DC) |
| Sound Output @ 1m (db) | 88 - 110 |
| Operating Temperature (°C) | -20 to +70 |
| Weight | 0.3 kg |
| GTIN | 5060224101094 |
| Commodity Code | 8531103000 |
| Number of Available Tones | 32 |
| Volume Levels | 3; Low (-20dBA) , Medium (-10dBA) & High |
| Wiring Type | 4-Wire Conventional |
Dimensions
| Dimensions (mm) | ø90 x 90 |
|---|
combined RED BANSHEE sounder + strobe features
