BC Series Indoor Speaker (100V, 5.25", Black)
About this product
BC Series - 100V Indoor Speakers
Industry standard 100V indoor speakers featuring robust ABS enclosures and a powder coated steel grille. Designed for flexibility, these speakers can be wall or ceiling mounted using the adjustable steel bracket. The trapezoidal design allows for seamless corner mounting or angled directional coverage, ensuring optimal sound distribution.
Designed for various applications, these speakers boast:
- Quality coated paper cones for rich low and mid-range frequencies, ideal for music playback and clear voice announcements.

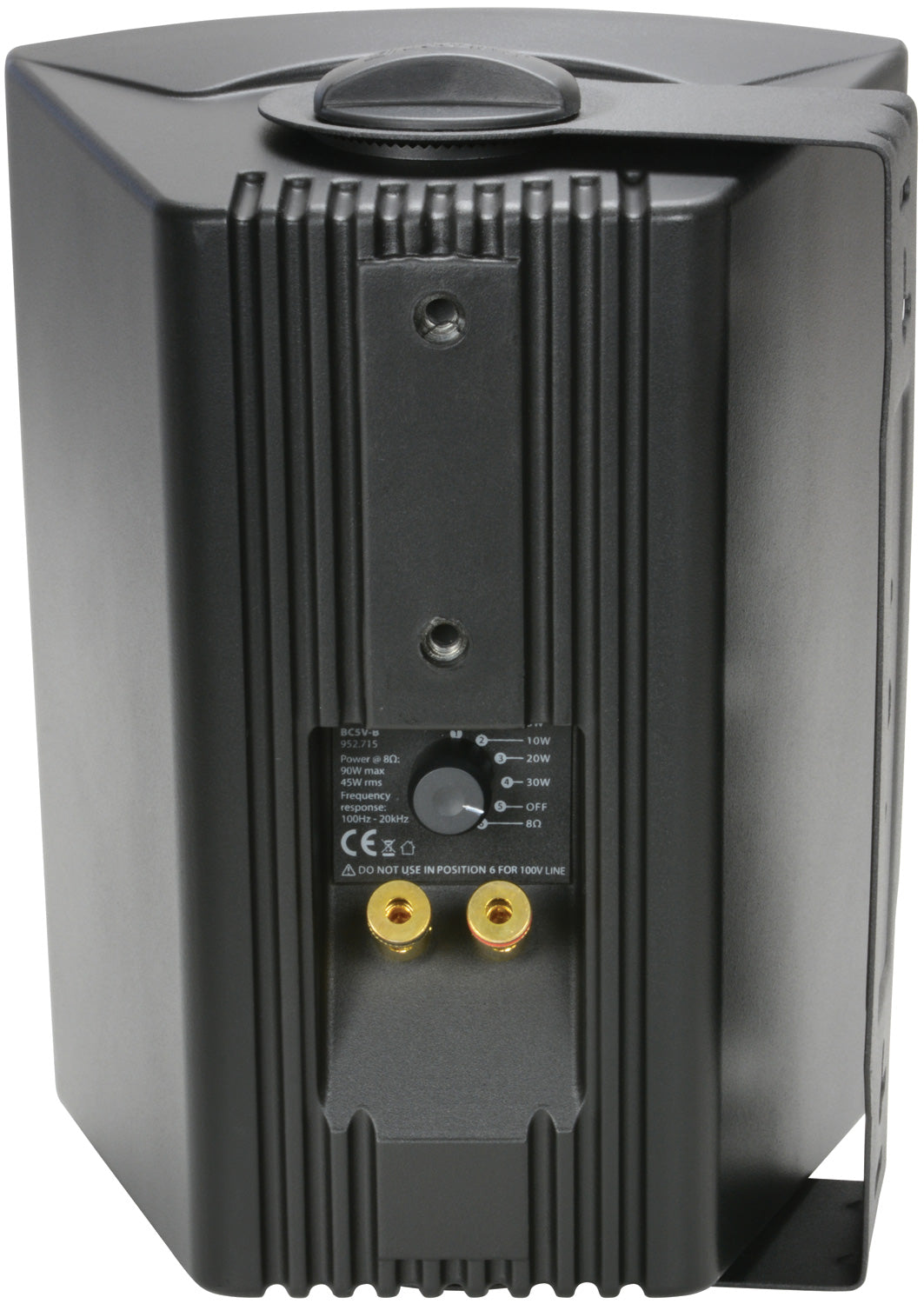

- Rotary selector switch for 100V line tappings or 8 Ohm operation.
- 2-way speaker system with an integrated crossover network.
- Included wall mounting bracket for easy installation.
- Alternative M6 threaded mounting points.
- Simple spring terminal connections.
- Supplied singly for versatile deployment.
Specifications
Specifications
Model | BC5V-B |
---|---|
Colour | Black |
Weight | 2.38 kg |
Woofer | 130 mm (5.25") reinforced paper cone |
Tweeter | 25 mm (1") balanced dome |
Tappings | 30W, 20W, 10W, 5W + 8 Ohms |
Connection | Spring terminals |
SPL @ 1W/1m | 89 dB |
Impedance: 100V | 333, 500, 1k, 2k Ohms |
Frequency response | 100 Hz - 20 kHz |
Power rms: 8 Ohms | 45 W |
Power max.: 8 Ohms | 90 W |
BC Series Indoor Speaker (100V, 5.25", Black) features

BC Series 100V Indoor Speakers, 5.25" Woofer, Black, 952.715UK
