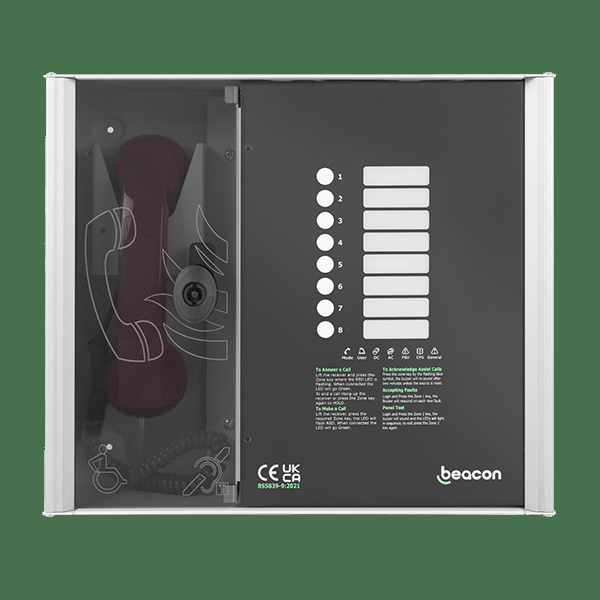

Beacon B1M2 Master Station 2 Line
Free Delivery
£
882
74
(Incl. VAT)
2 Years Warranty
Master Station 2 Line
About this product
About this product
A 2 line master control panel for EVCS systems, the Beacon B1M2 from ESP's Disabled Refuge and Assistance Alarm range is expandable from 2 to 8 lines and compliant to BS5839-9:2021. It has an integrated assist call & acknowledgement system, full duplex operation and a 1.5A EN54-4:A2 PSU (battery not included).
Key features
- 2 line master control panel for EVCS systems; expandable from 2 to 8 lines
- Compliant to BS5839-9:2021
- Integrated assist call & acknowledgement system; full duplex operation
- 1.5A EN54-4:A2 PSU (battery not included)
- Monitored open, short, fuses, high impedance
- 8 zone LEDs, 3 fault LEDs (PSU, system, general) and 2 supply LEDs (AC & DC present)
- Outstations on a 1 x 2 core radial, up to 500 m (point to point)
- Lockable handset cover
Frequently asked questions
How many lines does the B1M2 have?
2 input lines, expandable up to 8.
Which standard is it compliant to?
BS5839-9:2021.
Is a battery included?
No. The 1.5A EN54-4:A2 PSU takes a standby supply of up to 12V 7Ah, not included.
Can it be flush mounted?
Yes, with the BMSF flush bezel; otherwise it surface mounts.
Which outstations are accessories for it?
The BTAS, BTAR, BTB, BTA66 and BTB66 outstations.
What is the communication range?
Up to 500 m (point to point), on a 1 x 2 core radial.
-
Download
- B1M2 Tech Sheet
£
882
74
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
300 x 350 x 95
Colour
Black & Grey
Materials
Power Coated Zintec, with a Smoked Perspex Door
Mounting
Surface or Flush (BMSF required for flushing)
Weight (Kg)
5.0
Warranty (Years)
2
Operating Voltage (V AC)
230
Frequency (Hz)
50/60
Operating Voltage (Internal Supply)(DC)
5V, 16V, 27V
Cable Size (mm²)
1 - 1.5
Fuses
240V 1A HRC (Mains Fuse), 750mA PTC (Battery Fuse)
Standby Supply
Up to 12V 7Ah (Not Included) (400mAh charge current)
Connection Type
Outstation Cables; 1 x 2 Core Radial
Adjustment Type
8 Zone Keys
Maximum Communication Range (m)
500 (point to point)
Input Lines
2
Number of Lines (Maximum)
Expandable up to 8
Remote Enable
Short to Use
GTIN
5060654466251
Commodity Code
8531103000
Features
Deep Discharge, Short & Thermal Protection; Monitored Open, Short, Fuses, High Impedance; 8 Zone LEDs, 3 Fault LEDs (PSU, System, general), and 2 Supply LEDs (AC & DC present); Compliant to BS5839-9:2021
Accessories
BTAS: Disabled Refuge Type A Outstation; BTAR: Disabled Refuge Type A Red Outstation; BTB: Disable Refuge Type B Outstation; BTA66: Type A Red Outstation IP66; BTB66: Disabled Refuge Type B Outstation IP66; BAKIT: Assitance Alarm Kit; BABEDKIT: Bed Room Assistance Alarm Kit; BM2EX: 2 Line Expansion Card for Master Station; BMSF: Flush Bezel for Master Station; BAT7: 12V - 7.0ah SLA Battery
Alarm Zone End of Line (Resistance)(Ω)
10k
Programming Outputs Fault & In-Use
Volt free, 1A @ 30V DC
Dimensions
Dimensions (mm)
300 x 350 x 95
Specifications
| Dimensions (mm) | 300 x 350 x 95 |
|---|---|
| Colour | Black & Grey |
| Materials | Power Coated Zintec, with a Smoked Perspex Door |
| Mounting | Surface or Flush (BMSF required for flushing) |
| Weight (Kg) | 5.0 |
| Warranty (Years) | 2 |
| Operating Voltage (V AC) | 230 |
| Frequency (Hz) | 50/60 |
| Operating Voltage (Internal Supply)(DC) | 5V, 16V, 27V |
| Cable Size (mm²) | 1 - 1.5 |
| Fuses | 240V 1A HRC (Mains Fuse), 750mA PTC (Battery Fuse) |
| Standby Supply | Up to 12V 7Ah (Not Included) (400mAh charge current) |
| Connection Type | Outstation Cables; 1 x 2 Core Radial |
| Adjustment Type | 8 Zone Keys |
| Maximum Communication Range (m) | 500 (point to point) |
| Input Lines | 2 |
| Number of Lines (Maximum) | Expandable up to 8 |
| Remote Enable | Short to Use |
| GTIN | 5060654466251 |
| Commodity Code | 8531103000 |
| Features | Deep Discharge, Short & Thermal Protection; Monitored Open, Short, Fuses, High Impedance; 8 Zone LEDs, 3 Fault LEDs (PSU, System, general), and 2 Supply LEDs (AC & DC present); Compliant to BS5839-9:2021 |
| Accessories | BTAS: Disabled Refuge Type A Outstation; BTAR: Disabled Refuge Type A Red Outstation; BTB: Disable Refuge Type B Outstation; BTA66: Type A Red Outstation IP66; BTB66: Disabled Refuge Type B Outstation IP66; BAKIT: Assitance Alarm Kit; BABEDKIT: Bed Room Assistance Alarm Kit; BM2EX: 2 Line Expansion Card for Master Station; BMSF: Flush Bezel for Master Station; BAT7: 12V - 7.0ah SLA Battery |
| Alarm Zone End of Line (Resistance)(Ω) | 10k |
| Programming Outputs Fault & In-Use | Volt free, 1A @ 30V DC |
Dimensions
| Dimensions (mm) | 300 x 350 x 95 |
|---|
