ESP B1TB Disabled Refuge Type B Outstation Green
Free Delivery
£
182
23
(Incl. VAT)
2 Years Warranty
Disabled Refuge Type B Outstation Green
About this product
About this product

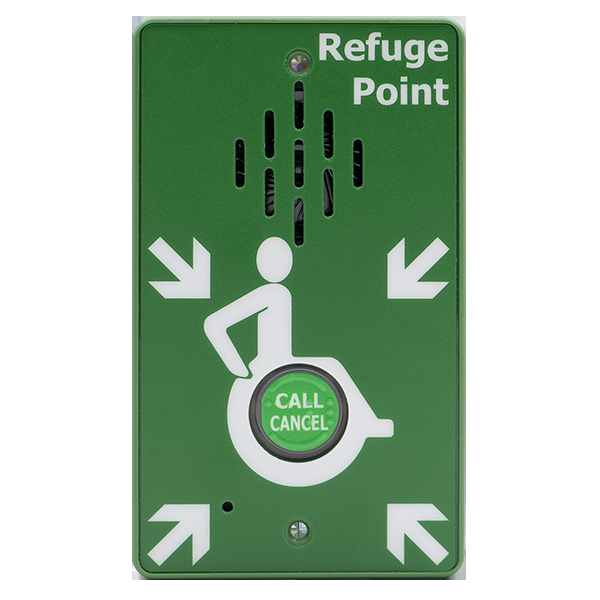

The ESP B1TB, from ESP's Disabled Refuge and Assistance Alarm range, is a Type B disabled refuge outstation in green, with handsfree full duplex operation and a Braille enhanced call button. Its line output is a single line, to go to the master station's line.
Key features
- Type B disabled refuge outstation, green polycarbonate
- Handsfree full duplex operation
- High volume ringer
- Braille enhanced call button with a red status LED
- Green flashing call button for location
- Fully monitored to BS5839-9:2021
- Fits a standard 2-gang backbox (not included); surface or flush mounting
- Maximum communication range 500 m (point to point)
Frequently asked questions
Is the B1TB a Type A or Type B outstation?
Type B.
Is it handsfree?
Yes. It has handsfree full duplex operation.
Is a backbox included?
No. It fits a standard 2-gang backbox, which is not included.
Which standard is it monitored to?
It is fully monitored to BS5839-9:2021.
What is its maximum communication range?
500 m (point to point).
-
Download
- B1TB Tech Sheet
£
182
23
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
146 x 86 x 22
Colour
Green
Materials
Polycarbonate
Mounting
Surface or Flush
Class
Type B
Weight (Kg)
0.40
Warranty (Years)
2
Cable Size (mm²)
1 - 1.5
Connection Type
Master Station/Expander Panel Line Cabling; 1 x 2 Core Radial
Maximum Communication Range (m)
500 (point to point)
Line Outputs
Single Line; to go to Master Station's Line
GTIN
5060654466282
Commodity Code
8531103000
Audio
Full Duplex
Backbox
Fits Standard 2-Gang Backbox (not included)
Dimensions
Dimensions (mm)
146 x 86 x 22
Specifications
| Dimensions (mm) | 146 x 86 x 22 |
|---|---|
| Colour | Green |
| Materials | Polycarbonate |
| Mounting | Surface or Flush |
| Class | Type B |
| Weight (Kg) | 0.40 |
| Warranty (Years) | 2 |
| Cable Size (mm²) | 1 - 1.5 |
| Connection Type | Master Station/Expander Panel Line Cabling; 1 x 2 Core Radial |
| Maximum Communication Range (m) | 500 (point to point) |
| Line Outputs | Single Line; to go to Master Station's Line |
| GTIN | 5060654466282 |
| Commodity Code | 8531103000 |
| Audio | Full Duplex |
| Backbox | Fits Standard 2-Gang Backbox (not included) |
Dimensions
| Dimensions (mm) | 146 x 86 x 22 |
|---|
Disabled Refuge Type B Outstation Green features
