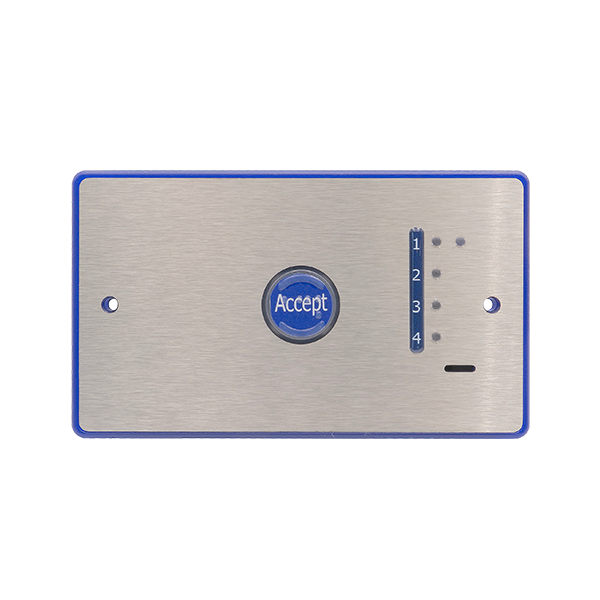

Beacon B1A4ZM Assist Call 4 Zone Module
Free Delivery
£
241
12
(Incl. VAT)
2 Years Warranty
Assist Call 4 Zone Module
About this product
About this product
The Beacon B1A4ZM, from ESP's Disabled Refuge and Assistance Alarm range, is an assist call 4 zone controller: it can support up to 4 lines, with an LED indicator for each line, and includes a buzzer, buzzer volume and active relay.
Key features
- Can support up to 4 lines, with an LED indicator for each line
- 5 LEDs: zones 1-4 and power
- Includes buzzer, buzzer volume, active relay
- Single "Accept" button
- Requires a power supply
- Mounts onto a standard 2-gang back box (not supplied); surface or flush
- Fully compliant to BS8300
- Blue "Halo"
Frequently asked questions
How many lines does the B1A4ZM support?
Up to 4 lines, with an LED indicator for each line.
Does it need a power supply?
Yes, it requires a power supply.
Where should it be placed?
In a staffed area, to provide acknowledgement.
Which standard is it compliant to?
It is fully compliant to BS8300.
Is a back box supplied?
No: it mounts onto a standard 2-gang back box, not supplied.
-
Download
- B1A4ZM Tech Sheet
£
241
12
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
146 x 86
Finish
Brushed Steel
Materials
Stainless Steel & Polycarbonate
Mounting
Surface or Flush
Indication
5 LEDs: (Zones 1-4, Power)
Weight (Kg)
0.60
Warranty (Years)
2
Operating Voltage (V DC)
12
Cable Size (mm²)
1 - 1.5
Connection Type
1 x 2 Core Radial
Adjustment Type
Single "Accept" Button
Maximum Communication Range (m)
500 (point to point)
Input Lines
4
Zone End of Line (Resistance)(Ω)
10k
Features
Can Support up to 4 Lines, LED Indicator for Each Line, Blue “Halo”
Compliance
Fully compliant to BS8300
Dimensions
Dimensions (mm)
146 x 86
Specifications
| Dimensions (mm) | 146 x 86 |
|---|---|
| Finish | Brushed Steel |
| Materials | Stainless Steel & Polycarbonate |
| Mounting | Surface or Flush |
| Indication | 5 LEDs: (Zones 1-4, Power) |
| Weight (Kg) | 0.60 |
| Warranty (Years) | 2 |
| Operating Voltage (V DC) | 12 |
| Cable Size (mm²) | 1 - 1.5 |
| Connection Type | 1 x 2 Core Radial |
| Adjustment Type | Single "Accept" Button |
| Maximum Communication Range (m) | 500 (point to point) |
| Input Lines | 4 |
| Zone End of Line (Resistance)(Ω) | 10k |
| Features | Can Support up to 4 Lines, LED Indicator for Each Line, Blue “Halo” |
| Compliance | Fully compliant to BS8300 |
Dimensions
| Dimensions (mm) | 146 x 86 |
|---|
