Beacon B1ACM Assist Call Cancel Module
£
73
14
(Incl. VAT)
2 Years Warranty
Assist Call Cancel Module
About this product
About this product

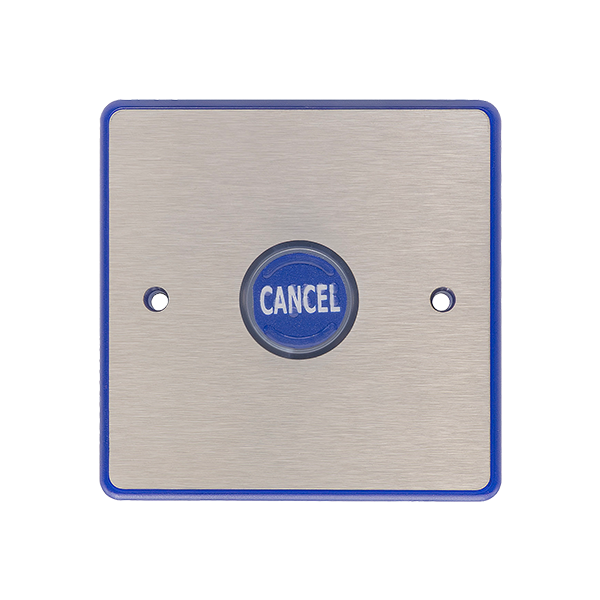

The Beacon B1ACM, from ESP's Disabled Refuge and Assistance Alarm range, is an assist call cancel module: an assist call cancel plate with a single cancel button and a blue “Halo” indication. It has a brushed steel finish and measures 86 x 86 x 22 mm.
Key features
- Assist call cancel plate with a single cancel button
- Braille enhanced cancel button
- Blue “Halo” indication: it lights steadily, and the tone double bleeps every 15 seconds to assure the caller that help is on the way
- High volume sounder
- Flush or surface mounting (backbox not included); fits onto a standard 1 gang backbox
- 1 x 2 core radial connection; cable size 1 - 1.5 mm²
- Maximum communication range 500 m (point to point)
- Brushed steel finish; 86 x 86 x 22 mm; 0.60 kg
Frequently asked questions
How is an assist call cancelled at the B1ACM?
With its single cancel button, which is Braille enhanced.
What does the “Halo” do?
It lights steadily, and the tone double bleeps every 15 seconds to assure the caller that help is on the way.
Is a backbox included?
No. It mounts flush or on the surface, and it fits onto a standard 1 gang backbox.
What does it require?
BM2/4/8, BMNET, BMNETEX, B1A4ZM.
-
Download
- B1ACM Tech Sheet
£
73
14
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 86 x 22
Finish
Brushed Steel
Materials
Stainless Steel & Polycarbonate
Mounting
Surface or Flush
Indication
Blue "Halo"
Weight (Kg)
0.60
Warranty (Years)
2
Cable Size (mm²)
1 - 1.5
Connection Type
1 x 2 Core Radial
Adjustment Type
Single Cancel Button
Maximum Communication Range (m)
500 (point to point)
Input Lines
1
Line Outputs
Single Line
Zone End of Line (Resistance)(Ω)
10k
Features
Compact Design, High Volume Sounder, Braille Enhanced Cancel Button
Requires
BM2/4/8, BMNET, BMNETEX, B1A4ZM
Dimensions
Dimensions (mm)
86 x 86 x 22
Specifications
| Dimensions (mm) | 86 x 86 x 22 |
|---|---|
| Finish | Brushed Steel |
| Materials | Stainless Steel & Polycarbonate |
| Mounting | Surface or Flush |
| Indication | Blue "Halo" |
| Weight (Kg) | 0.60 |
| Warranty (Years) | 2 |
| Cable Size (mm²) | 1 - 1.5 |
| Connection Type | 1 x 2 Core Radial |
| Adjustment Type | Single Cancel Button |
| Maximum Communication Range (m) | 500 (point to point) |
| Input Lines | 1 |
| Line Outputs | Single Line |
| Zone End of Line (Resistance)(Ω) | 10k |
| Features | Compact Design, High Volume Sounder, Braille Enhanced Cancel Button |
| Requires | BM2/4/8, BMNET, BMNETEX, B1A4ZM |
Dimensions
| Dimensions (mm) | 86 x 86 x 22 |
|---|
Assist Call Cancel Module features
Beacon B1ACM Assist Call Cancel Module
