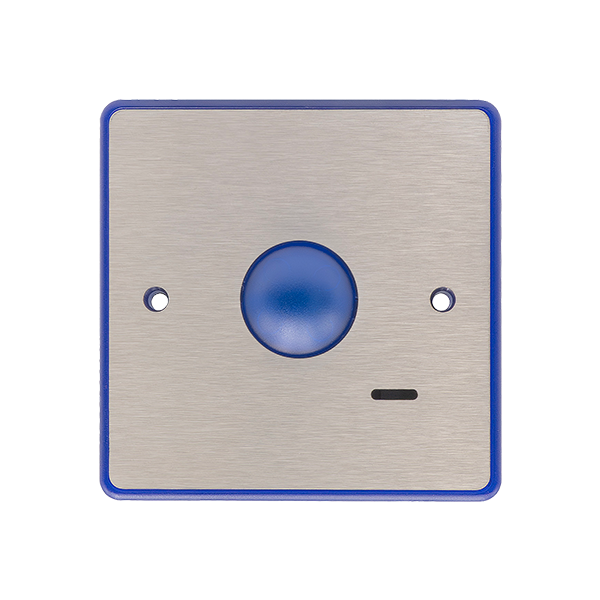

Beacon B1AM Assist Call Alert Module
£
66
46
(Incl. VAT)
2 Years Warranty
Assist Call Alert Module
About this product
About this product
The Beacon B1AM, from ESP's Disabled Refuge and Assistance Alarm range, is an assist call alert module: an assist call over door plate with a high volume sounder and a blue “Halo” indicator. It has a brushed steel finish and measures 86 x 86 x 22 mm.
Key features
- Assist call over door plate
- High volume sounder
- Blue “Halo” indication: it lights steadily, and the tone double bleeps every 15 seconds to assure the caller that help is on the way
- Braille enhanced cancel button
- Flush or surface mounting (backbox not included); fits onto a standard 1-gang backbox
- 1 x 2 core radial connection; cable size 1 - 1.5 mm²
- Maximum communication range 500 m (point to point)
- Brushed steel finish; 86 x 86 x 22 mm; 0.60 kg
Frequently asked questions
What does the “Halo” do?
It lights steadily, and the tone double bleeps every 15 seconds to assure the caller that help is on the way.
Is a backbox included?
No. It mounts flush or on the surface, and it fits onto a standard 1-gang backbox.
What does it require?
BM2/4/8, BMNET, BMNETEX, B1A4ZM.
What is its maximum communication range?
500 m (point to point).
-
Download
- B1AM Tech Sheet
£
66
46
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 86 x 22
Finish
Brushed Steel
Materials
Stainless Steel & Polycarbonate
Mounting
Surface or Flush
Indication
Blue "Halo"
Weight (Kg)
0.60
Warranty (Years)
2
Cable Size (mm²)
1 - 1.5
Connection Type
1 x 2 Core Radial
Maximum Communication Range (m)
500 (point to point)
Input Lines
1
Line Outputs
Single Line
Zone End of Line (Resistance)(Ω)
10k
Features
Compact Design, High Volume Sounder, Braille Enhanced Cancel Button
Requires
BM2/4/8, BMNET, BMNETEX, B1A4ZM
Dimensions
Dimensions (mm)
86 x 86 x 22
Specifications
| Dimensions (mm) | 86 x 86 x 22 |
|---|---|
| Finish | Brushed Steel |
| Materials | Stainless Steel & Polycarbonate |
| Mounting | Surface or Flush |
| Indication | Blue "Halo" |
| Weight (Kg) | 0.60 |
| Warranty (Years) | 2 |
| Cable Size (mm²) | 1 - 1.5 |
| Connection Type | 1 x 2 Core Radial |
| Maximum Communication Range (m) | 500 (point to point) |
| Input Lines | 1 |
| Line Outputs | Single Line |
| Zone End of Line (Resistance)(Ω) | 10k |
| Features | Compact Design, High Volume Sounder, Braille Enhanced Cancel Button |
| Requires | BM2/4/8, BMNET, BMNETEX, B1A4ZM |
Dimensions
| Dimensions (mm) | 86 x 86 x 22 |
|---|
Assist Call Alert Module features
