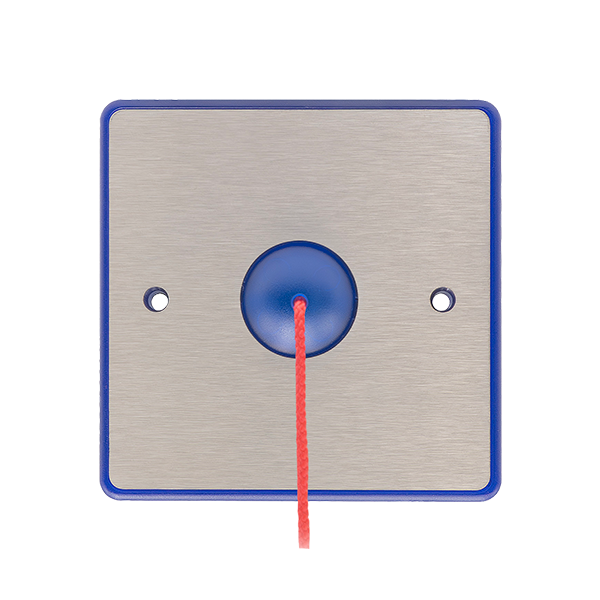

Beacon B1APCM Assist Call Pull Cord Module
£
63
18
(Incl. VAT)
2 Years Warranty
Assist Call Pull Cord Module
About this product
About this product
The Beacon B1APCM, from ESP's Disabled Refuge and Assistance Alarm range, is an assist call pull cord module for flush or surface mounting (backbox not included).
Key features
- Assist call pull cord: 2.8m pull cord with 2 x 50mm diameter pull rings
- Fits onto a 1 gang back box
- Blue "Halo" indication
- Requires BM2/4/8, BMNET, BMNETEX, B1A4ZM
- 1 x 2 core radial connection, 1 - 1.5 mm² cable
- Compact design, 86 x 86 x 22 mm, brushed steel finish
Frequently asked questions
Can the B1APCM be flush mounted?
Yes: it is for flush or surface mounting; the backbox is not included.
What does it need to work?
It requires BM2/4/8, BMNET, BMNETEX, B1A4ZM.
What is its maximum communication range?
500 m (point to point).
What does it weigh?
0.60 kg.
-
Download
- B1APCM Tech Sheet
£
63
18
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 86 x 22
Finish
Brushed Steel
Materials
Stainless Steel & Polycarbonate
Mounting
Surface or Flush
Indication
Blue "Halo"
Weight (Kg)
0.60
Warranty (Years)
2
Cable Size (mm²)
1 - 1.5
Connection Type
1 x 2 Core Radial
Adjustment Type
Pull Cord
Maximum Communication Range (m)
500 (point to point)
Input Lines
1
Line Outputs
Single Line
Zone End of Line (Resistance)(Ω)
10k
Features
Compact Design, Blue “Halo”, 2.8m Pull Cord, 2 x 50mm diameter pull rings, Fits onto 1 Gang Back Box
Requires
BM2/4/8, BMNET, BMNETEX, B1A4ZM
Dimensions
Dimensions (mm)
86 x 86 x 22
Specifications
| Dimensions (mm) | 86 x 86 x 22 |
|---|---|
| Finish | Brushed Steel |
| Materials | Stainless Steel & Polycarbonate |
| Mounting | Surface or Flush |
| Indication | Blue "Halo" |
| Weight (Kg) | 0.60 |
| Warranty (Years) | 2 |
| Cable Size (mm²) | 1 - 1.5 |
| Connection Type | 1 x 2 Core Radial |
| Adjustment Type | Pull Cord |
| Maximum Communication Range (m) | 500 (point to point) |
| Input Lines | 1 |
| Line Outputs | Single Line |
| Zone End of Line (Resistance)(Ω) | 10k |
| Features | Compact Design, Blue “Halo”, 2.8m Pull Cord, 2 x 50mm diameter pull rings, Fits onto 1 Gang Back Box |
| Requires | BM2/4/8, BMNET, BMNETEX, B1A4ZM |
Dimensions
| Dimensions (mm) | 86 x 86 x 22 |
|---|
Assist Call Pull Cord Module features
Beacon B1APCM Assist Call Pull Cord Module
