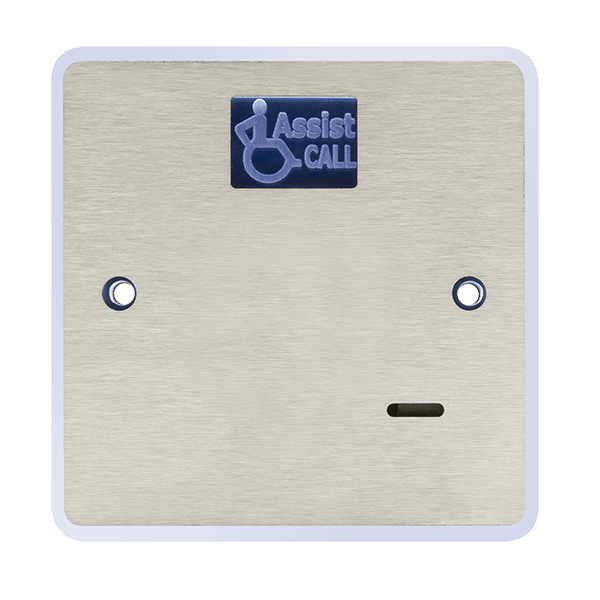

Beacon BAIM Assist Call Input Module
£
76
79
(Incl. VAT)
2 Years Warranty
Assist Call Input Module
About this product
About this product
The Beacon BAIM is an assistance alarm input module in stainless steel: an assist call switch interface plate that provides a facility to connect to a 3rd party switch. It is part of ESP's Disabled Refuge and Assistance Alarm range and requires a BM2/4/8, BMNET, BMNETEX or BA4ZM.
Key features
- Assist call switch interface plate
- Provides a facility to connect to a 3rd party switch
- Lines & relay input (compatible with 3rd party switches): 1 each
- Single line output
- Requires BM2/4/8, BMNET, BMNETEX or BA4ZM
- Compact design; fits onto a standard 1 gang backbox (backbox not included)
- Brushed steel finish, stainless steel & acrylic, blue “Halo” indication
Frequently asked questions
What does the BAIM connect to?
It provides a facility to connect to a 3rd party switch, through its lines & relay input (compatible with 3rd party switches).
What does it need to work?
It requires a BM2/4/8, BMNET, BMNETEX or BA4ZM.
How is it wired?
1 x 2 core radial, in 1 - 1.5 mm² cable, up to a maximum communication range of 500 m (point to point).
Is a backbox included?
No. It fits onto a standard 1 gang backbox, which is not included.
-
Download
- BAIM Tech Sheet
£
76
79
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 86 x 22
Finish
Brushed Steel
Materials
Stainless Steel & Acrylic
Mounting
Surface or Flush
Indication
Blue "Halo"
Weight (Kg)
0.60
Warranty (Years)
2
Cable Size (mm²)
1 - 1.5
Connection Type
1 x 2 Core Radial
Maximum Communication Range (m)
500 (point to point)
Line Outputs
Single Line
Lines & Relay Input (compatible with 3rd Party switches)
1 Each
Alarm Zone End of Line (Resistance)(Ω)
10k
Required Equipment
BM2/4/8, BMNET, BMNETEX, BA4ZM
Dimensions
Dimensions (mm)
86 x 86 x 22
Specifications
| Dimensions (mm) | 86 x 86 x 22 |
|---|---|
| Finish | Brushed Steel |
| Materials | Stainless Steel & Acrylic |
| Mounting | Surface or Flush |
| Indication | Blue "Halo" |
| Weight (Kg) | 0.60 |
| Warranty (Years) | 2 |
| Cable Size (mm²) | 1 - 1.5 |
| Connection Type | 1 x 2 Core Radial |
| Maximum Communication Range (m) | 500 (point to point) |
| Line Outputs | Single Line |
| Lines & Relay Input (compatible with 3rd Party switches) | 1 Each |
| Alarm Zone End of Line (Resistance)(Ω) | 10k |
| Required Equipment | BM2/4/8, BMNET, BMNETEX, BA4ZM |
Dimensions
| Dimensions (mm) | 86 x 86 x 22 |
|---|
