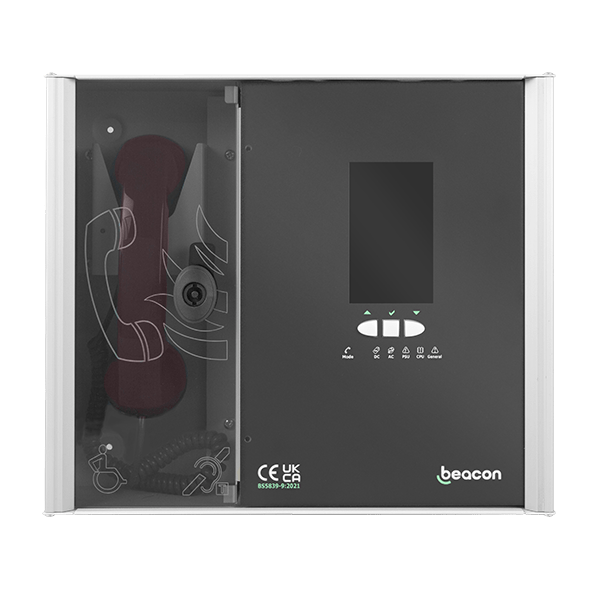

Beacon BMNET Touchscreen Master Station
Free Delivery
£
1,622
27
(Incl. VAT)
2 Years Warranty
Touchscreen Master Station
About this product
About this product
The Beacon BMNET is a networkable master station for disabled refuge (EVCS) systems, from ESP's Disabled Refuge and Assistance Alarm range. It gives 8 line networkable master control on a 4.3" full colour touchscreen and is fully compliant to BS5839-9:2021.
Key features
- 8 line networkable master control for EVCS systems
- 4.3" full colour touchscreen (272 x 480 x RGB) with 3 navigation keys
- Fully compliant to BS5839-9:2021
- 1.5A EN54-4:A2 PSU (battery not included)
- Full duplex operation and integrated assist call & acknowledgement system
- Lockable handset cover
- Number of lines (maximum): expandable up to 8; the system has the capacity to install up to 512 lines
- Deep discharge, short and thermal protection; monitors open, short, fuses and high impedance
Frequently asked questions
How many lines does the BMNET control?
It has 8 input lines; its number of lines (maximum) is expandable up to 8. The system has the capacity to install up to 512 lines.
Which standard is it compliant to?
It is fully compliant to BS5839-9:2021.
Is a battery included?
No. Standby is from a battery of up to 12V 7Ah, which is not included.
Can it be flush mounted?
Yes, with the BMSF flush bezel, which is required for flushing.
What cabling does it use?
2 x 2 core loops for the network (2 cores for data, 2 for audio) and 1 x 2 core radial cables for outstations, at 1 - 1.5 mm².
-
Download
- BMNET Tech Sheet
£
1,622
27
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
300 x 350 x 95
Colour
Black & Grey
Materials
Power Coated Zintec, with a Smoked Perspex Door
Mounting
Surface or Flush (BMSF required for flushing)
Indication
4.3" Touch Screen (272 x 480 x RGB)
Weight (Kg)
5.0
Warranty (Years)
2
Operating Voltage (V AC)
230
Frequency (Hz)
50/60
Operating Voltage (Internal Supply)(DC)
5V, 16V, 27V
Cable Size (mm²)
1 - 1.5
Fuses
240V 1A HRC (Mains Fuse), 750mA PTC (Battery Fuse)
Standby Supply
Up to 12V 7Ah (Not Included) (400mAh charge current)
Connection Type
Network Cables; 2 x 2 Core Loops - 2 Core for Data, 2 Cores for Audio; Outstation Cables; 1 x 2 Core Radial
Adjustment Type
3 Navigation Keys & Touchscreen
Maximum Communication Range (m)
500 (point to point)
Input Lines
8
Number of Lines (Maximum)
Expandable up to 8
Remote Enable
Short to Use
Outputs Fault & In-Use
Volt free, 1A @ 30V DC
Alarm Zone End of Line (Resistance)(Ω)
10k
Protection
Deep Discharge, Short & Thermal Protection
Monitoring
Monitored Open, Short, Fuses, High Impedance
Status LEDs
8 Zone LEDs, 3 Fault LEDs (PSU, System, general), and 2 Supply LEDs (AC & DC present)
Dimensions
Dimensions (mm)
300 x 350 x 95
Specifications
| Dimensions (mm) | 300 x 350 x 95 |
|---|---|
| Colour | Black & Grey |
| Materials | Power Coated Zintec, with a Smoked Perspex Door |
| Mounting | Surface or Flush (BMSF required for flushing) |
| Indication | 4.3" Touch Screen (272 x 480 x RGB) |
| Weight (Kg) | 5.0 |
| Warranty (Years) | 2 |
| Operating Voltage (V AC) | 230 |
| Frequency (Hz) | 50/60 |
| Operating Voltage (Internal Supply)(DC) | 5V, 16V, 27V |
| Cable Size (mm²) | 1 - 1.5 |
| Fuses | 240V 1A HRC (Mains Fuse), 750mA PTC (Battery Fuse) |
| Standby Supply | Up to 12V 7Ah (Not Included) (400mAh charge current) |
| Connection Type | Network Cables; 2 x 2 Core Loops - 2 Core for Data, 2 Cores for Audio; Outstation Cables; 1 x 2 Core Radial |
| Adjustment Type | 3 Navigation Keys & Touchscreen |
| Maximum Communication Range (m) | 500 (point to point) |
| Input Lines | 8 |
| Number of Lines (Maximum) | Expandable up to 8 |
| Remote Enable | Short to Use |
| Outputs Fault & In-Use | Volt free, 1A @ 30V DC |
| Alarm Zone End of Line (Resistance)(Ω) | 10k |
| Protection | Deep Discharge, Short & Thermal Protection |
| Monitoring | Monitored Open, Short, Fuses, High Impedance |
| Status LEDs | 8 Zone LEDs, 3 Fault LEDs (PSU, System, general), and 2 Supply LEDs (AC & DC present) |
Dimensions
| Dimensions (mm) | 300 x 350 x 95 |
|---|
Touchscreen Master Station features
