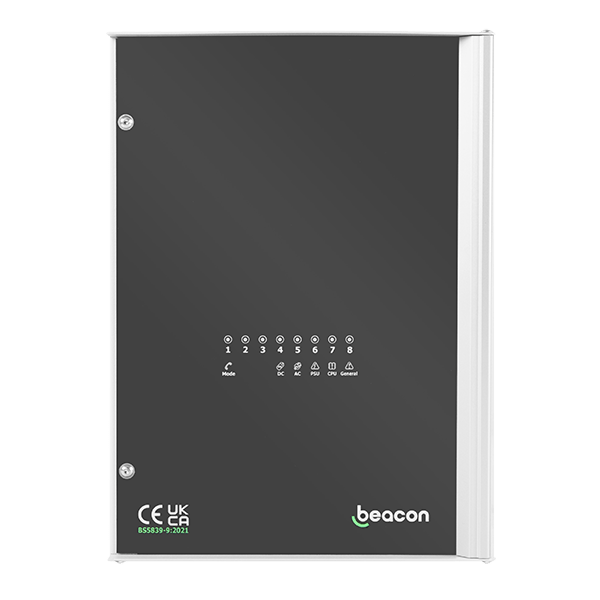

Beacon BMNETEX Touchscreen Master Station Expander
Free Delivery
£
931
36
(Incl. VAT)
2 Years Warranty
Touchscreen Master Station Expander
About this product
About this product
The Beacon BMNETEX touchscreen master station expander is a disabled refuge networkable expander panel. It expands a BMNET system by up to 8 lines, and its inbuilt networking allows it to form 1 of 64 panels on a Beacon disabled refuge network.
Key features
- Increases a BMNET's networked lines by 8; 8 input lines
- Inbuilt networking: forms 1 of 64 panels on a Beacon disabled refuge network
- Integrated assist call & acknowledgement system; full duplex operation
- Lines auto identify: flashing red for EVCS calls, blue for assist calls, flashing green for connected calls
- 1.5A EN54-4:A2 PSU (battery not included)
- Compliant to BS5839-9:2021
- 8 zone LEDs, 1 state LED, 3 fault LEDs (PSU, system, general) and 2 supply LEDs (AC & DC present)
Frequently asked questions
What does the BMNETEX add to a BMNET?
8 lines: it is used to increase a BMNET's networked lines by 8.
How many panels can be on one Beacon network?
Its inbuilt networking allows it to form 1 of 64 panels on a Beacon disabled refuge network.
Is a battery included?
No: the 1.5A EN54-4:A2 PSU comes without a battery, and the 12V 7Ah SLA battery is not supplied.
Is it compliant to BS5839-9:2021?
Yes.
How are calls shown?
Lines auto identify by flashing red for EVCS calls, blue for assist calls or flashing green for connected calls.
-
Download
- BMNETEX Tech Sheet
£
931
36
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
300 x 220 x 95
Colour
Black & Grey
Materials
Power Coated Zintec
Mounting
Surface
Weight (Kg)
5.0
Warranty (Years)
2
Operating Voltage (V AC)
230
Frequency (Hz)
50/60
Operating Voltage (Internal Supply)(DC)
5V, 16V, 27V
Cable Size (mm²)
1 - 1.5
Fuses
240V 1A HRC (Mains Fuse), 750mA PTC (Battery Fuse)
Standby Supply
Up to 12V 7Ah (Not Included) (400mAh charge current)
Connection Type
Network Cables; 2 x 2 Core Loops - 2 Core for Data, 2 Cores for Audio; Outstation Cables; 1 x 2 Core Radial
Maximum Communication Range (m)
500 (point to point)
Input Lines
8
Number of Lines (Maximum)
Expandable up to 8
Remote Enable
Short to Use
Programming Outputs Fault & In-Use
Volt free, 1A @ 30V DC
Alarm Zone End of Line (Resistance)(Ω)
10k
Audio
Full Duplex
Features
Deep Discharge, Short & Thermal Protection; Monitored Open, Short, Fuses, High Impedance; 8 Zone LEDs, 1 state LED, 3 Fault LEDs (PSU, System, general), and 2 Supply LEDs (AC & DC present); Compliant to BS5839-9:2021; Expands a BMNET System by up to 8 Lines; With Inbuilt Networking Allows it to Form 1 of 64 Panels on a Beacon Disabled Refuge Network; Lines Auto Identify by Flashing RED for EVCS Calls, BLUE for Assist Calls or Flashing GREEN for Connected Calls
Accessories
BTAS: Disabled Refuge Type A Outstation; BTAR: Disabled Refuge Type A Red Outstation; BTB: Disable Refuge Type B Outstation; BTA66: Type A Red Outstation IP66; BTB66: Disabled Refuge Type B Outstation IP66; BAKIT: Assitance Alarm Kit; BABEDKIT: Bed Room Assistance Alarm Kit; BM2EX: 2 Line Expansion Card for Master Station; BM2, BM4, BM8, BMNET: Master Stations; BMNETEX: Networkable Master Station Expander Panel; BAT7: 12V - 7.0ah SLA Battery
Dimensions
Dimensions (mm)
300 x 220 x 95
Specifications
| Dimensions (mm) | 300 x 220 x 95 |
|---|---|
| Colour | Black & Grey |
| Materials | Power Coated Zintec |
| Mounting | Surface |
| Weight (Kg) | 5.0 |
| Warranty (Years) | 2 |
| Operating Voltage (V AC) | 230 |
| Frequency (Hz) | 50/60 |
| Operating Voltage (Internal Supply)(DC) | 5V, 16V, 27V |
| Cable Size (mm²) | 1 - 1.5 |
| Fuses | 240V 1A HRC (Mains Fuse), 750mA PTC (Battery Fuse) |
| Standby Supply | Up to 12V 7Ah (Not Included) (400mAh charge current) |
| Connection Type | Network Cables; 2 x 2 Core Loops - 2 Core for Data, 2 Cores for Audio; Outstation Cables; 1 x 2 Core Radial |
| Maximum Communication Range (m) | 500 (point to point) |
| Input Lines | 8 |
| Number of Lines (Maximum) | Expandable up to 8 |
| Remote Enable | Short to Use |
| Programming Outputs Fault & In-Use | Volt free, 1A @ 30V DC |
| Alarm Zone End of Line (Resistance)(Ω) | 10k |
| Audio | Full Duplex |
| Features | Deep Discharge, Short & Thermal Protection; Monitored Open, Short, Fuses, High Impedance; 8 Zone LEDs, 1 state LED, 3 Fault LEDs (PSU, System, general), and 2 Supply LEDs (AC & DC present); Compliant to BS5839-9:2021; Expands a BMNET System by up to 8 Lines; With Inbuilt Networking Allows it to Form 1 of 64 Panels on a Beacon Disabled Refuge Network; Lines Auto Identify by Flashing RED for EVCS Calls, BLUE for Assist Calls or Flashing GREEN for Connected Calls |
| Accessories | BTAS: Disabled Refuge Type A Outstation; BTAR: Disabled Refuge Type A Red Outstation; BTB: Disable Refuge Type B Outstation; BTA66: Type A Red Outstation IP66; BTB66: Disabled Refuge Type B Outstation IP66; BAKIT: Assitance Alarm Kit; BABEDKIT: Bed Room Assistance Alarm Kit; BM2EX: 2 Line Expansion Card for Master Station; BM2, BM4, BM8, BMNET: Master Stations; BMNETEX: Networkable Master Station Expander Panel; BAT7: 12V - 7.0ah SLA Battery |
Dimensions
| Dimensions (mm) | 300 x 220 x 95 |
|---|
Touchscreen Master Station Expander features
Beacon BMNETEX Touchscreen Master Station Expander
