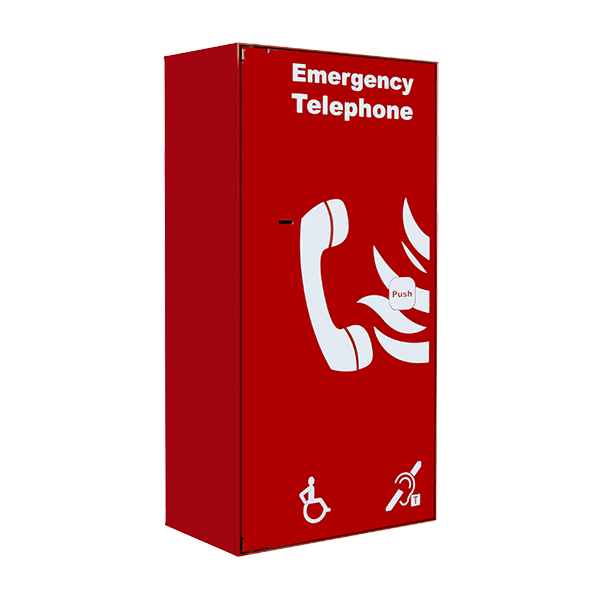

Beacon BTAR Fire Telephone Type A Red Outstation
Free Delivery
£
245
52
(Incl. VAT)
2 Years Warranty
Fire Telephone Type A Red Outstation
About this product
About this product
The red Beacon BTAR is a Type A outstation from ESP's Disabled Refuge and Assistance Alarm range (fire telephone Type A red outstation; disabled refuge Type A red outstation), finished in RAL3001 with white signage, with full duplex audio and full compliance to BS5839-9:2021.
Key features
- RAL3001 red with white signage
- Ruggedised handset
- High volume ringer and status LED
- Telecoil for hearing impaired users
- Magnetic push catch
- 20mm cable gland knock-out
- Full duplex audio; class Type A
- Fully compliant to BS5839-9:2021
Frequently asked questions
What colour is the BTAR?
Red, RAL 3001, with white signage.
Which standard is it compliant to?
It is fully compliant to BS5839-9:2021.
Does it help hearing impaired users?
It has a telecoil for hearing impaired users.
What class of outstation is it?
Type A, with full duplex audio.
How far can it be from the master station?
The maximum communication range is 500 m (point to point).
-
Download
- BTAR Tech Sheet
£
245
52
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
300 x 150 x 105
Colour
Red
Materials
Stainless Steel
Mounting
Surface
Class
Type A
Weight (Kg)
1.40
Warranty (Years)
2
Cable Size (mm²)
1 - 1.5
Connection Type
Master Station/Expander Panel Line Cabling; 1 x 2 Core Radial
Maximum Communication Range (m)
500 (point to point)
Line Outputs
Single Line; to go to Master Station's Line
Audio
Full Duplex
RAL
RAL 3001
Features
RAL3001 with White Signage, Rugged Handset, High Volume Ringer, Status LED, 20mm Cable Gland knock-out, Telecoil for Hearing Impaired Users, Magnetic Push Catch
Compliance
Fully compliant to BS5839-9:2021
Dimensions
Dimensions (mm)
300 x 150 x 105
Specifications
| Dimensions (mm) | 300 x 150 x 105 |
|---|---|
| Colour | Red |
| Materials | Stainless Steel |
| Mounting | Surface |
| Class | Type A |
| Weight (Kg) | 1.40 |
| Warranty (Years) | 2 |
| Cable Size (mm²) | 1 - 1.5 |
| Connection Type | Master Station/Expander Panel Line Cabling; 1 x 2 Core Radial |
| Maximum Communication Range (m) | 500 (point to point) |
| Line Outputs | Single Line; to go to Master Station's Line |
| Audio | Full Duplex |
| RAL | RAL 3001 |
| Features | RAL3001 with White Signage, Rugged Handset, High Volume Ringer, Status LED, 20mm Cable Gland knock-out, Telecoil for Hearing Impaired Users, Magnetic Push Catch |
| Compliance | Fully compliant to BS5839-9:2021 |
Dimensions
| Dimensions (mm) | 300 x 150 x 105 |
|---|
Fire Telephone Type A Red Outstation features
