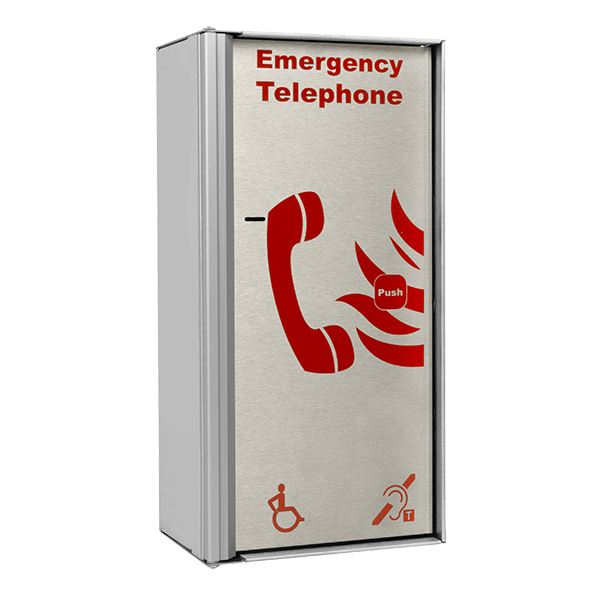

Beacon BTAS Fire Telephone Type A Outstation
Free Delivery
£
341
98
(Incl. VAT)
2 Years Warranty
Fire Telephone Type A Outstation
About this product
About this product
The Beacon BTAS, from ESP's Disabled Refuge and Assistance Alarm range, is a Type A outstation (fire telephone Type A outstation; disabled refuge Type A outstation) with full duplex audio, fully compliant to BS5839-9:2021.
Key features
- Ruggedised red telephone handset behind a push door
- Magnetic push catch
- Brushed stainless steel finish with a high contrast red screen print
- High volume ringer and status LED
- Telecoil for hearing impaired users
- 20mm cable gland knock-out
- Compact design
Frequently asked questions
Which standard is the BTAS compliant to?
It is fully compliant to BS5839-9:2021.
Does it have anything for hearing impaired users?
Yes: a telecoil for hearing impaired users.
What class of outstation is it?
Type A.
How is the handset housed?
Behind a push door.
What is its maximum communication range?
500 m (point to point).
-
Download
- BTAS Tech Sheet
£
341
98
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
300 x 150 x 105
Finish
Brushed Steel
Materials
Stainless Steel
Mounting
Surface
Class
Type A
Weight (Kg)
1.40
Warranty (Years)
2
Cable Size (mm²)
1 - 1.5
Connection Type
Master Station/Expander Panel Line Cabling; 1 x 2 Core Radial
Maximum Communication Range (m)
500 (point to point)
Line Outputs
Single Line; to go to Master Station's Line
Audio
Full Duplex
Features
High Volume Ringer, Status LED, 20mm Cable Gland Knock-out, Telecoil for Hearing Impaired Users, Magnetic Push Catch
Compliance
Fully compliant to BS5839-9:2021
Dimensions
Dimensions (mm)
300 x 150 x 105
Specifications
| Dimensions (mm) | 300 x 150 x 105 |
|---|---|
| Finish | Brushed Steel |
| Materials | Stainless Steel |
| Mounting | Surface |
| Class | Type A |
| Weight (Kg) | 1.40 |
| Warranty (Years) | 2 |
| Cable Size (mm²) | 1 - 1.5 |
| Connection Type | Master Station/Expander Panel Line Cabling; 1 x 2 Core Radial |
| Maximum Communication Range (m) | 500 (point to point) |
| Line Outputs | Single Line; to go to Master Station's Line |
| Audio | Full Duplex |
| Features | High Volume Ringer, Status LED, 20mm Cable Gland Knock-out, Telecoil for Hearing Impaired Users, Magnetic Push Catch |
| Compliance | Fully compliant to BS5839-9:2021 |
Dimensions
| Dimensions (mm) | 300 x 150 x 105 |
|---|
Fire Telephone Type A Outstation features
Beacon BTAS Fire Telephone Type A Outstation
