Beacon BTB Disabled Refuge Type B Outstation
Free Delivery
£
214
15
(Incl. VAT)
2 Years Warranty
Disabled Refuge Type B Outstation
About this product
About this product

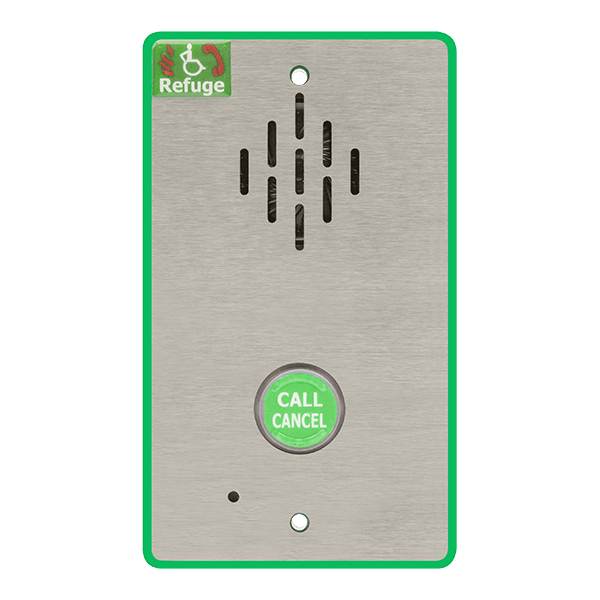

The Beacon BTB, from ESP's Disabled Refuge and Assistance Alarm range, is a Type B disabled refuge outstation with handsfree full duplex operation and a Braille enhanced call button. It is fully monitored to BS5839-9:2021.
Key features
- Type B disabled refuge outstation
- Handsfree full duplex operation and a high volume ringer
- Braille enhanced call button with a red status LED; green flashing call button for location
- Fully monitored to BS5839-9:2021
- Single line output, to go to the master station's line; up to 500 m (point to point)
- Fits a standard 2-gang backbox (not included)
- Brushed steel finish; stainless steel & acrylic; 146 x 86 x 22 mm
Frequently asked questions
What class is the BTB?
Type B.
Is it handsfree?
Yes. It has handsfree full duplex operation.
Does it fit a standard backbox?
It fits a standard 2-gang backbox, which is not included.
What range does it have?
A maximum communication range of 500 m (point to point).
Which standard is it monitored to?
It is fully monitored to BS5839-9:2021.
-
Download
- BTB Tech Sheet
£
214
15
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
146 x 86 x 22
Finish
Brushed Steel
Materials
Stainless Steel & Acrylic
Mounting
Surface
Class
Type B
Weight (Kg)
0.40
Warranty (Years)
2
Cable Size (mm²)
1 - 1.5
Connection Type
Master Station/Expander Panel Line Cabling; 1 x 2 Core Radial
Maximum Communication Range (m)
500 (point to point)
Line Outputs
Single Line; to go to Master Station's Line
Audio
Full Duplex
Monitoring
Fully monitored to BS5839-9:2021
Dimensions
Dimensions (mm)
146 x 86 x 22
Specifications
| Dimensions (mm) | 146 x 86 x 22 |
|---|---|
| Finish | Brushed Steel |
| Materials | Stainless Steel & Acrylic |
| Mounting | Surface |
| Class | Type B |
| Weight (Kg) | 0.40 |
| Warranty (Years) | 2 |
| Cable Size (mm²) | 1 - 1.5 |
| Connection Type | Master Station/Expander Panel Line Cabling; 1 x 2 Core Radial |
| Maximum Communication Range (m) | 500 (point to point) |
| Line Outputs | Single Line; to go to Master Station's Line |
| Audio | Full Duplex |
| Monitoring | Fully monitored to BS5839-9:2021 |
Dimensions
| Dimensions (mm) | 146 x 86 x 22 |
|---|
Disabled Refuge Type B Outstation features
