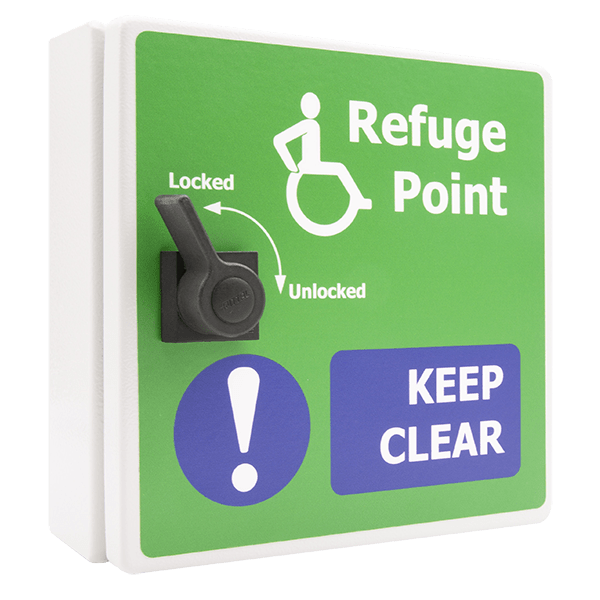

Beacon BTB66 Disabled Refuge Type B Outstation IP66
Free Delivery
£
462
06
(Incl. VAT)
2 Years Warranty
Disabled Refuge Type B Outstation IP66
About this product
About this product
The Beacon BTB66 is a disabled refuge Type B outstation from ESP's Disabled Refuge and Assistance Alarm range: IP66 cased, with handsfree full duplex operation, fully monitored to BS5839-9:2021. It has a Braille enhanced call button, a red status LED and standards compliant signage integrated in the design.
Key features
- Type B outstation: handsfree, full duplex operation
- IP66 cased
- Fully monitored to BS5839-9:2021
- Braille enhanced call button
- Standards compliant signage integrated in design
- Red status LED
- Stainless steel, light grey (RAL 7035); surface mounted
- 1 x 2 core radial connection; maximum communication range 500 m (point to point)
Frequently asked questions
What type of outstation is the BTB66?
A Type B disabled refuge outstation, with handsfree full duplex operation.
Which standard is it monitored to?
It is fully monitored to BS5839-9:2021.
What is its ingress protection?
IP66 (IP66 cased).
What is its maximum communication range?
500 m (point to point), over a 1 x 2 core radial connection.
Does it have a Braille call button?
Yes: a Braille enhanced call button.
-
Download
- BTB66 Tech Sheet
£
462
06
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
200 x 200
Colour
Light Grey
Materials
Stainless Steel
Mounting
Surface
Class
Type B
Weight (Kg)
2.30
Warranty (Years)
2
Cable Size (mm²)
1 - 1.5
Connection Type
1 x 2 Core Radial
Maximum Communication Range (m)
500 (point to point)
Line Outputs
Single Line; to go to Master Station's Line
Audio
Full Duplex
RAL
RAL 7035
Ingress Protection
IP66
Features
Red Status LED
Dimensions
Dimensions (mm)
200 x 200
Specifications
| Dimensions (mm) | 200 x 200 |
|---|---|
| Colour | Light Grey |
| Materials | Stainless Steel |
| Mounting | Surface |
| Class | Type B |
| Weight (Kg) | 2.30 |
| Warranty (Years) | 2 |
| Cable Size (mm²) | 1 - 1.5 |
| Connection Type | 1 x 2 Core Radial |
| Maximum Communication Range (m) | 500 (point to point) |
| Line Outputs | Single Line; to go to Master Station's Line |
| Audio | Full Duplex |
| RAL | RAL 7035 |
| Ingress Protection | IP66 |
| Features | Red Status LED |
Dimensions
| Dimensions (mm) | 200 x 200 |
|---|
Disabled Refuge Type B Outstation IP66 features
Beacon BTB66 Disabled Refuge Type B Outstation IP66
