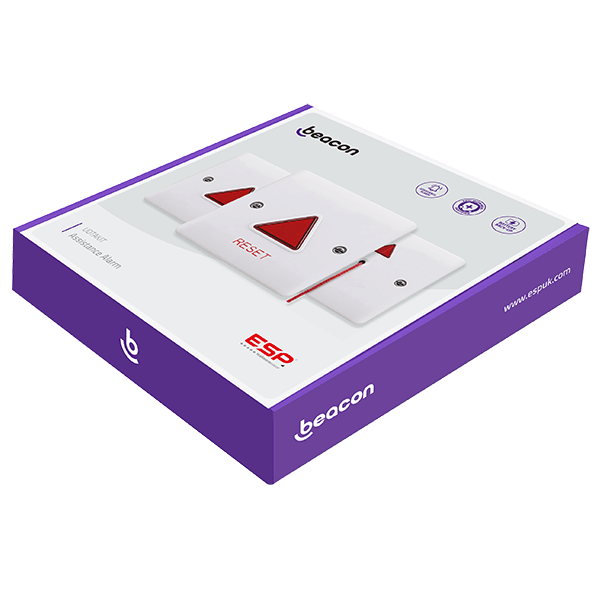

Beacon UDTAKIT Disabled Toilet Alarm Kit, White
About this product
The Beacon UDTAKIT, from ESP's Disabled Refuge and Assistance Alarm range, is a 3-part disabled toilet alarm kit: the UDTAPCM pull cord module, the UDTAPLBM power, light and buzzer module and the UDTAREM reset module, in white anti-microbial ABS. It raises an alert for assistance and has battery backup, with the battery included.
Key features
- 3-part kit: pull cord, indication (power, light and buzzer) and reset modules
- Battery backup facility, battery included (A23)
- Meets Part-M building regulations and BS8300, as stated by the maker
- Anti-ligature pull cord, 3 m including 2 triangular bangles
- Red LED indication in alarm state; buzzer >80 dB
- White anti-microbial ABS, single gang plates, surface or flush mounting (surface box included)
- Supplied with a disabled persons sign
- Expandable with additional indication and pull cord modules
Frequently asked questions
What is in the UDTAKIT?
A UDTAPCM pull cord module, a UDTAPLBM power, light and buzzer module and a UDTAREM reset module, with a battery and a disabled persons sign.
Does the UDTAKIT meet Part M?
The maker states that it meets Part-M building regulations and BS8300.
Is a battery included?
Yes. It has a battery backup facility with the battery included (A23).
How long is the pull cord?
3 m, including 2 triangular bangles. The cord is anti-ligature.
Can more pull cords be added?
Yes. The system is expandable with additional indication and pull cord modules.
How loud is the buzzer?
Over 80 dB when activated.
-
Download
- UDTAKIT Tech Sheet
Specifications
Dimensions
Specifications
| UDTAPCM - Pull Cord Module | 1 |
|---|---|
| UDTAPLBM - Power, Light and Buzzer Module | 1 |
| Dimensions (mm) | 87 x 87 x 41 |
| Colour | White |
| Plate Size | Single Gang |
| Pull Cord Length (m) | 3 (Including 2 Triangular Bangles) |
| Mounting | Surface or Flush (Surface Box Included) |
| Indication | LED illuminates in red when in alarm state |
| Pull cord module (UDTAPCM) anti-ligature | Yes |
| Pull cord module (UDTAPCM) pull cord | Anti-ligature, red |
| Activated Buzzer Sound Level (db) | >80 |
| Pull cord and reset module operating voltage (V DC) | 12 |
| Maximum Cable Size (mm²) | 1.5 |
| Power, light and buzzer module (UDTAPLBM) power consumption (A) | 0.2 |
| Pull cord module (UDTAPCM) power consumption (W) | 0.3 |
| Reset module (UDTAREM) power consumption (W) | 0.9 |
| Battery Backup | A23 Battery |
| Operating Temperature (°C) | -10 to +40 |
| Activation Type | Energise with a Normally Open Clean Contact |
| Output Type | 1 Switched Live sharing common ground; separate output for additional sounders |
| Number of Outputs | 2 |
| Output Rating | 12V 500mA |
| UDTAREM - Assistance Alarm Reset Module | 1 |
| Materials | Anti-Microbial ABS |
| Buzzer Sound Level When Activated (db) | >80 |
| Warranty Years | 2 |
Dimensions
| Dimensions (mm) | 87 x 87 x 41 |
|---|
Assistance Alarm Kit features
