Beacon UDTAKITG Disabled Toilet Alarm Kit, Grey

What is in the kit

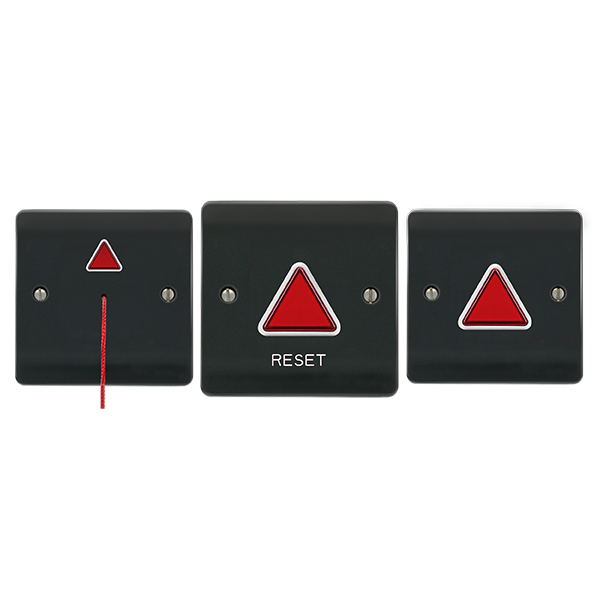

The UDTAKITG contains one each of the UDTAPCMG pull cord module, the UDTAPLBMG power, light and buzzer module and the UDTAREMG assistance alarm reset module, with a disabled persons sign. It is an alarm to raise alert for assistance, and the system is expandable to include additional indication and pull cord modules if required.

Each module has a single gang plate in grey anti-microbial ABS and measures 87 x 87 x 41 mm. Each module is rated IP20.

How the modules work

The pull cord module is anti-ligature, with a red pull cord 3 m long including 2 triangular bangles; it runs at 12 V DC with a power consumption of 0.3 W, and its operating temperature is -10 to +40 °C.

The power, light and buzzer module's purpose is activation and reset circuits. Its LED illuminates in red when in alarm state and its activated buzzer sound level is >80 dB. It is energised with a normally open clean contact and takes ground and 2 live circuits (X1 and X2). It has 2 outputs (output rating 12V 500mA): 1 switched live sharing common ground, and a separate output for additional sounders. Battery backup is from an A23 battery, and its power consumption is 0.2 A.

The reset module's LED illuminates in red when in alarm state and its buzzer sound level when activated is >80 dB; it runs at 12 V DC with a power consumption of 0.9 W, and its operating temperature is -10 to +40 °C.

Installation notes

The modules mount on the surface or flush, with the surface box included. Each module takes cable up to 1.5 mm².

Accessories include the UDTALBMG light and buzzer module and the UDTASPC replacement pull cord.
