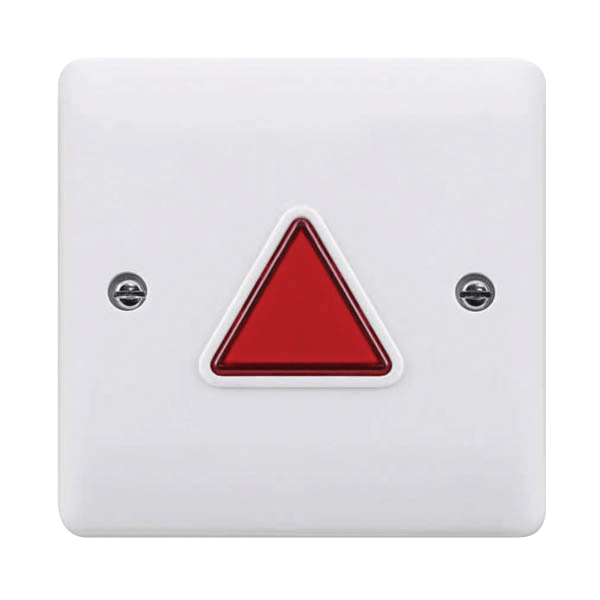

Beacon UDTALBM Disabled Toilet Alarm Light & Buzzer Module, White
£
12
84
(Incl. VAT)
2 Years Warranty
Assistance Alarm Light and Buzzer Module, White
About this product
About this product
Beacon's UDTALBM is a white assistance alarm light and buzzer module in anti-microbial ABS, for use with UDTAKIT, from ESP's Disabled Refuge and Assistance Alarm range. In alarm state its LED illuminates in red, and its buzzer gives a distinctive audible alert.
Key features
- Light & buzzer module for use with UDTAKIT
- Clear alarm LED alert: the LED illuminates in red when in alarm state
- Anti-microbial ABS, white; single gang
- Surface or flush mounting; surface box included
- 12 V DC; power consumption 0.9 W
- Supplied with 1 x backbox, installation bolts and a user manual
Frequently asked questions
What is the UDTALBM used with?
It is the light and buzzer module for use with UDTAKIT.
How does it show an alarm?
Its LED illuminates in red when in alarm state, and the buzzer gives a distinctive audible alert.
Is a back box included?
Yes: it mounts surface or flush, and the surface box is included.
What supply does it need?
12 V DC; its power consumption is 0.9 W.
What is it made of?
Anti-microbial ABS, in white.
-
Download
- UDTALBM Tech Sheet
£
12
84
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
87 x 87 x 41
Plate Size
Single Gang
Colour
White
Materials
Anti-Microbial ABS
Mounting
Surface or Flush (Surface Box Included)
Indication
LED illuminates in red when in alarm state
Buzzer Sound Level When Activated (db)
>80
Warranty (Years)
2
Operating Voltage (V DC)
12
Maximum Cable Size (mm²)
1.5
Power Consumption (W)
0.9
Supplied
1 x Backbox, Installation Bolts, User Manual
Ingress Protection
IP20
Accessories
UDTAPLBM: Assistance Alarm, Power, Light and Buzzer Module; UDTAPCM: Assistance Alarm Pull Cord Module; UDTASPC: Assistance Alarm Replacement Pull Cord; UDTAREM: Assistance Alarm Reset Module
Dimensions
Dimensions (mm)
87 x 87 x 41
Specifications
| Dimensions (mm) | 87 x 87 x 41 |
|---|---|
| Plate Size | Single Gang |
| Colour | White |
| Materials | Anti-Microbial ABS |
| Mounting | Surface or Flush (Surface Box Included) |
| Indication | LED illuminates in red when in alarm state |
| Buzzer Sound Level When Activated (db) | >80 |
| Warranty (Years) | 2 |
| Operating Voltage (V DC) | 12 |
| Maximum Cable Size (mm²) | 1.5 |
| Power Consumption (W) | 0.9 |
| Supplied | 1 x Backbox, Installation Bolts, User Manual |
| Ingress Protection | IP20 |
| Accessories | UDTAPLBM: Assistance Alarm, Power, Light and Buzzer Module; UDTAPCM: Assistance Alarm Pull Cord Module; UDTASPC: Assistance Alarm Replacement Pull Cord; UDTAREM: Assistance Alarm Reset Module |
Dimensions
| Dimensions (mm) | 87 x 87 x 41 |
|---|
