Beacon UDTALBMG Disabled Toilet Alarm Light & Buzzer Module, Grey
£
14
03
(Incl. VAT)
2 Years Warranty
Assist WC Alarm Light Buzz Mod Grey
About this product
About this product

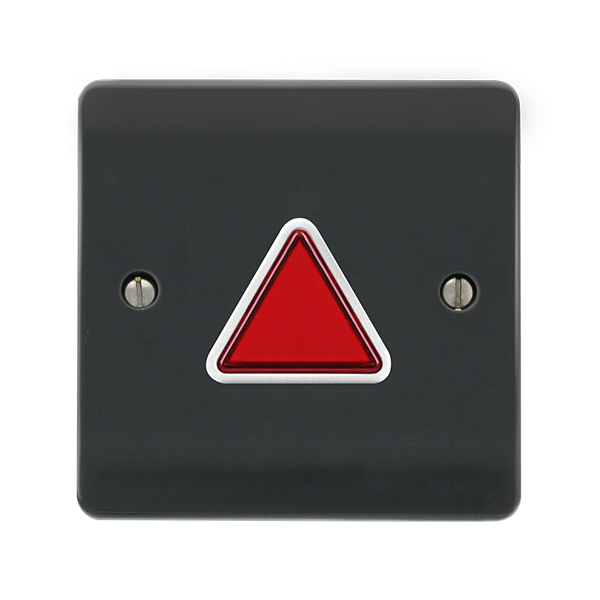

The Beacon UDTALBMG is a grey assistance alarm light and buzzer module from ESP's Disabled Refuge and Assistance Alarm range, for use with UDTAKIT. It gives a clear alarm LED alert and a distinctive audible alert.
Key features
- Assistance alarm light and buzzer module, for use with UDTAKIT
- Red LED illuminates in alarm state; buzzer >80 dB when activated
- Clear alarm LED alert and distinctive audible alert
- Grey, light reflectance value (LRV) 32
- Anti-microbial ABS, single gang plate
- Surface or flush mounting, surface box included
- 12 V DC, 0.9 W
Frequently asked questions
What does the UDTALBMG work with?
It is a light & buzzer module for use with UDTAKIT.
What indication does it give?
Its LED illuminates in red when in alarm state, and its buzzer sound level when activated is >80 dB.
Can it be flush mounted?
Yes. It mounts on the surface or flush, and a surface box is included.
What is its light reflectance value?
LRV 32, in grey.
What power does it need?
12 V DC, with a power consumption of 0.9 W.
-
Download
- UDTALBMG Tech Sheet
£
14
03
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
87 x 87 x 41
Plate Size
Single Gang
Colour
Grey
Light Reflectance Value (LRV)
32
Materials
Anti-Microbial ABS
Mounting
Surface or Flush (Surface Box Included)
Indication
LED illuminates in red when in alarm state
Buzzer Sound Level When Activated (db)
>80
Warranty (Years)
2
Operating Voltage (V DC)
12
Maximum Cable Size (mm²)
1.5
Power Consumption (W)
0.9
Operating Temperature (°C)
-10 to +40
Supplied
1 x Backbox, Installation Bolts, User Manual
Ingress Protection
IP20
Dimensions
Dimensions (mm)
87 x 87 x 41
Specifications
| Dimensions (mm) | 87 x 87 x 41 |
|---|---|
| Plate Size | Single Gang |
| Colour | Grey |
| Light Reflectance Value (LRV) | 32 |
| Materials | Anti-Microbial ABS |
| Mounting | Surface or Flush (Surface Box Included) |
| Indication | LED illuminates in red when in alarm state |
| Buzzer Sound Level When Activated (db) | >80 |
| Warranty (Years) | 2 |
| Operating Voltage (V DC) | 12 |
| Maximum Cable Size (mm²) | 1.5 |
| Power Consumption (W) | 0.9 |
| Operating Temperature (°C) | -10 to +40 |
| Supplied | 1 x Backbox, Installation Bolts, User Manual |
| Ingress Protection | IP20 |
Dimensions
| Dimensions (mm) | 87 x 87 x 41 |
|---|
