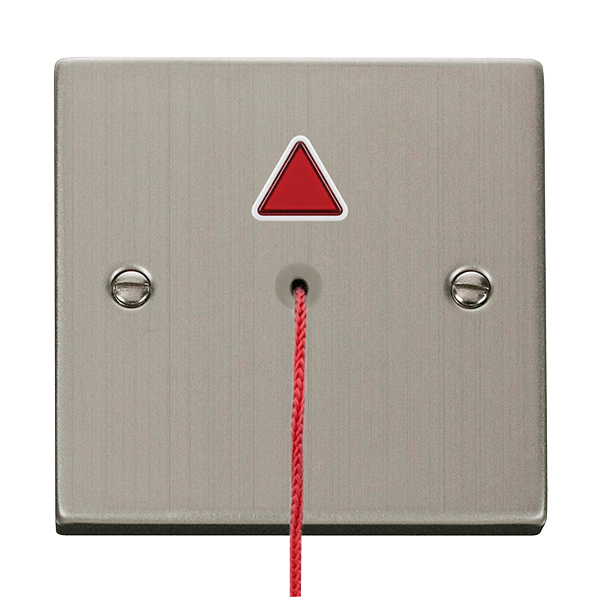

Beacon UDTAPCMSS Disabled Toilet Alarm Pull Cord Module, Stainless Steel
£
24
35
(Incl. VAT)
2 Years Warranty
Assistance Alarm Pull Cord Module
About this product
About this product
The Beacon UDTAPCMSS, from ESP's Disabled Refuge and Assistance Alarm range, is an assistance alarm pull cord module in grade 304 stainless steel, with a distinctive red 3m pull cord complete with an anti-ligature mechanism.
Key features
- Assistance alarm pull cord module, stainless steel (grade 304), grey, single gang
- Distinctive red 3m pull cord, including 2 triangular bangles
- Pull cord complete with anti-ligature mechanism; anti-microbial properties
- Clear alarm LED alert: the LED illuminates in red when in alarm state
- 12 V DC operating voltage, 0.3 W power consumption
- Surface or flush mounting; surface mounting needs the UDTASMBSS surface mount back box (not included)
- Pull cord module for use with UDTAKIT
Frequently asked questions
How long is the pull cord?
3 m, including 2 triangular bangles.
Is a back box included?
No. Surface mounting needs the UDTASMBSS surface mount back box.
Is the pull cord anti-ligature?
Yes. The pull cord is complete with an anti-ligature mechanism.
What voltage does it run at?
12 V DC; power consumption is 0.3 W.
What is it made of?
Stainless steel (grade 304), in grey.
-
Download
- UDTAPCMSS Tech Sheet
£
24
35
Price
Technical Details
Specifications
Dimensions (mm)
87 x 87 x 41
Pull Cord Length (m)
3 (Including 2 Triangular Bangles)
Plate Size
Single Gang
Colour
Grey
Materials
Stainless Steel (Grade 304)
Mounting
Surface or Flush (Surface Back Box Not Included)
Anti-Ligature
Yes
Indication
LED illuminates in red when in alarm state
Warranty (Years)
2
Operating Voltage (V DC)
12
Maximum Cable Size (mm²)
1.5
Power Consumption (W)
0.3
Operating Temperature (°C)
-10 to +40
Supplied
User Manual
Additional Information
If mounting surface you will need UDTASMBSS Surface Mount Back Box.
Ingress Protection
IP20
Features
Anti-Microbial Properties, Anti-Ligature Red Pull Cord
Dimensions
Dimensions (mm)
87 x 87 x 41
Specifications
| Dimensions (mm) | 87 x 87 x 41 |
|---|---|
| Pull Cord Length (m) | 3 (Including 2 Triangular Bangles) |
| Plate Size | Single Gang |
| Colour | Grey |
| Materials | Stainless Steel (Grade 304) |
| Mounting | Surface or Flush (Surface Back Box Not Included) |
| Anti-Ligature | Yes |
| Indication | LED illuminates in red when in alarm state |
| Warranty (Years) | 2 |
| Operating Voltage (V DC) | 12 |
| Maximum Cable Size (mm²) | 1.5 |
| Power Consumption (W) | 0.3 |
| Operating Temperature (°C) | -10 to +40 |
| Supplied | User Manual |
| Additional Information | If mounting surface you will need UDTASMBSS Surface Mount Back Box. |
| Ingress Protection | IP20 |
| Features | Anti-Microbial Properties, Anti-Ligature Red Pull Cord |
Dimensions
| Dimensions (mm) | 87 x 87 x 41 |
|---|
