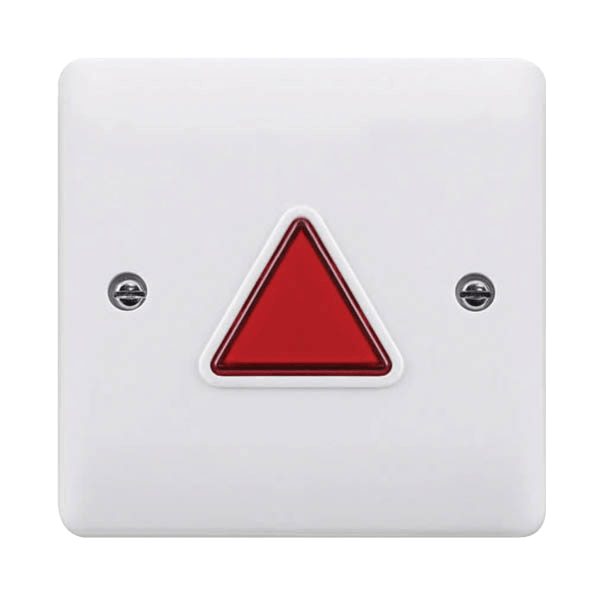

Beacon UDTAPLBM Disabled Toilet Alarm Power Light & Buzzer Module, White
About this product
The Beacon UDTAPLBM, from ESP's Disabled Refuge and Assistance Alarm range, is an assistance alarm power, light and buzzer module: a replacement power, light and buzzer module for the UDTAKIT. Its LED illuminates in red when in alarm state and its buzzer sounds at >80 dB when activated.
Key features
- Replacement power, light & buzzer module for UDTAKIT
- Red LED alert in alarm state; buzzer >80 dB when activated
- Built-in battery backup with supplied A23 battery; the sounder buzzes intermittently when the battery needs replacing
- 100 - 230 V AC operating voltage, 0.2 A power consumption
- Activation and reset circuits: ground and 2 live circuits (X1 & X2), energised by a normally open clean contact
- 2 outputs: 1 switched live sharing common ground and a separate output for additional sounders, rated 12V 500mA
- Single gang, white anti-microbial ABS, 87 x 87 x 41 mm; surface or flush mounting (surface box included)
Frequently asked questions
Which kit does the UDTAPLBM replace a module in?
It is a replacement power, light and buzzer module for the UDTAKIT.
How does it show an alarm?
Its LED illuminates in red when in alarm state, and the buzzer sounds at >80 dB when activated.
Does it have battery backup?
Yes. It has built-in battery backup with a supplied A23 battery, and the sounder buzzes intermittently when the battery needs replacing.
What supply does it need?
100 - 230 V AC, with 0.2 A power consumption.
Can extra sounders be added?
It has a separate output for additional sounders, rated 12V 500mA.
-
Download
- UDTAPLBM Tech Sheet
Specifications
Dimensions
Specifications
| Dimensions (mm) | 87 x 87 x 41 |
|---|---|
| Plate Size | Single Gang |
| Colour | White |
| Materials | Anti-Microbial ABS |
| Mounting | Surface or Flush (Surface Box Included) |
| Indication | LED illuminates in red when in alarm state |
| Buzzer Sound Level When Activated (db) | >80 |
| Purpose | Activation and Reset Circuits |
| Warranty (Years) | 2 |
| Operating Voltage (V AC) | 100 - 230 |
| Maximum Cable Size (mm²) | 1.5 |
| Power Consumption (A) | 0.2 |
| Battery Backup | Yes |
| Input Type | Ground & 2 live circuits - X1 & X2 |
| Activation Type | Energise with a Normally Open Clean Contact |
| Number of Outputs | 2 |
| Operating Temperature (°C) | -10 to +40 |
| Supplied | 1 x Backbox, Installation Bolts, User Manual |
| Ingress Protection | IP20 |
| Output Rating | 12V 500mA |
| Output Type | 1 Switched Live sharing common ground; separate output for additional sounders |
Dimensions
| Dimensions (mm) | 87 x 87 x 41 |
|---|
