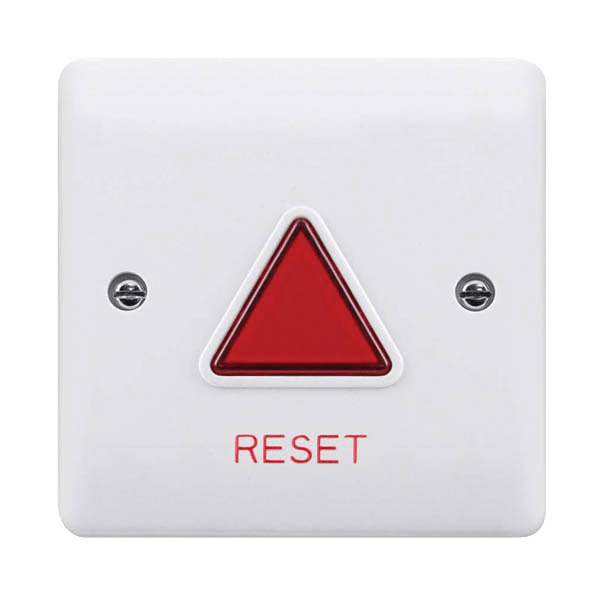

Beacon UDTAREM Disabled Toilet Alarm Reset Module, White
£
12
67
(Incl. VAT)
2 Years Warranty
Assistance Alarm Reset Module, White
About this product
About this product
Beacon's UDTAREM is a white assistance alarm reset module in anti-microbial ABS, for use with UDTAKIT. In alarm state its LED illuminates in red with a distinctive audible alert, and it provides the reset system function; the surface box is included.
Key features
- Clear alarm LED alert: the LED illuminates in red when in alarm state
- Distinctive audible alert: buzzer sound level >80 dB when activated
- Anti-microbial ABS, white; single gang
- Surface or flush mounting; surface box included
- 12 V DC; power consumption 0.9 W
- Supplied with 1 x backbox, installation bolts and a user manual
- Reset module for use with UDTAKIT; reset system function
Frequently asked questions
What is the UDTAREM for?
It is a reset module for use with UDTAKIT, providing the reset system function.
Can it be surface mounted?
Yes: it mounts surface or flush, and the surface box is included.
How does it show an alarm?
Its LED illuminates in red when in alarm state, with a distinctive audible alert; the buzzer sound level is >80 dB when activated.
What is it made of?
Anti-microbial ABS, white.
What does it run on?
12 V DC, with a power consumption of 0.9 W; maximum cable size 1.5 mm².
-
Download
- UDTAREM Tech Sheet
£
12
67
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
87 x 87 x 41
Plate Size
Single Gang
Colour
White
Materials
Anti-Microbial ABS
Mounting
Surface or Flush (Surface Box Included)
Indication
LED illuminates in red when in alarm state
Buzzer Sound Level When Activated (db)
>80
Warranty (Years)
2
Operating Voltage (V DC)
12
Maximum Cable Size (mm²)
1.5
Power Consumption (W)
0.9
Operating Temperature (°C)
-10 to +40
Supplied
1 x Backbox, Installation Bolts, User Manual
Ingress Protection
IP20
Accessories
UDTAPLBM: Assistance Alarm, Power, Light and Buzzer Module; UDTALBM: Assistance Alarm Light and Buzzer Module; UDTAPCM: Assistance Alarm Pull Cord Module; UDTASPC: Assistance Alarm Replacement Pull Cord
Dimensions
Dimensions (mm)
87 x 87 x 41
Specifications
| Dimensions (mm) | 87 x 87 x 41 |
|---|---|
| Plate Size | Single Gang |
| Colour | White |
| Materials | Anti-Microbial ABS |
| Mounting | Surface or Flush (Surface Box Included) |
| Indication | LED illuminates in red when in alarm state |
| Buzzer Sound Level When Activated (db) | >80 |
| Warranty (Years) | 2 |
| Operating Voltage (V DC) | 12 |
| Maximum Cable Size (mm²) | 1.5 |
| Power Consumption (W) | 0.9 |
| Operating Temperature (°C) | -10 to +40 |
| Supplied | 1 x Backbox, Installation Bolts, User Manual |
| Ingress Protection | IP20 |
| Accessories | UDTAPLBM: Assistance Alarm, Power, Light and Buzzer Module; UDTALBM: Assistance Alarm Light and Buzzer Module; UDTAPCM: Assistance Alarm Pull Cord Module; UDTASPC: Assistance Alarm Replacement Pull Cord |
Dimensions
| Dimensions (mm) | 87 x 87 x 41 |
|---|
Assistance Alarm Reset Module, White features
