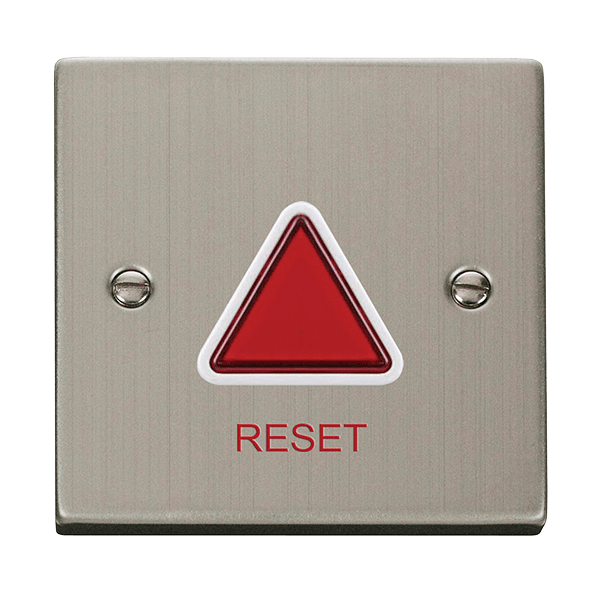

Beacon UDTAREMSS Disabled Toilet Alarm Reset Module, Stainless Steel
About this product
The Beacon UDTAREMSS is a stainless steel (Grade 304) assistance alarm reset module for use with UDTAKIT, from ESP's Disabled Refuge and Assistance Alarm range. Its LED illuminates in red when in alarm state, it gives a distinctive audible alert, and it provides the reset system function.
Key features
- Reset module for use with UDTAKIT; reset system function
- Clear alarm LED alert: the LED illuminates in red when in alarm state
- Distinctive audible alert: buzzer sound level >80 dB when activated
- Stainless steel (Grade 304), grey; single gang
- Surface or flush mounting; surface back box not included (UDTASMBSS for surface mounting)
- 12 V DC; power consumption 0.9 W
Frequently asked questions
What is the UDTAREMSS for?
It is a reset module for use with UDTAKIT, providing the reset system function.
How does it show an alarm?
Its LED illuminates in red when in alarm state, with a distinctive audible alert; the buzzer sound level is >80 dB when activated.
Can it be surface mounted?
Yes: it mounts surface or flush. The surface back box is not included; for surface mounting you will need the UDTASMBSS surface mount back box.
What does it run on?
12 V DC, with a power consumption of 0.9 W; maximum cable size 1.5 mm².
What is it made of?
Stainless steel (Grade 304), grey.
-
Download
- UDTAREMSS Tech Sheet
Specifications
Dimensions
Specifications
| Dimensions (mm) | 87 x 87 x 41 |
|---|---|
| Plate Size | Single Gang |
| Colour | Grey |
| Materials | Stainless Steel (Grade 304) |
| Mounting | Surface or Flush (Surface Back Box Not Included) |
| Indication | LED illuminates in red when in alarm state |
| Buzzer Sound Level When Activated (db) | >80 |
| Warranty (Years) | 2 |
| Operating Voltage (V DC) | 12 |
| Maximum Cable Size (mm²) | 1.5 |
| Power Consumption (W) | 0.9 |
| Operating Temperature (°C) | -10 to +40 |
| Supplied | User Manual |
| Additional Information | If mounting surface you will need UDTASMBSS Surface Mount Back Box. |
| Ingress Protection | IP20 |
| Accessories | UDTAPLBMSS: Stainless Steel Assistance Alarm, Power, Light and Buzzer Module; UDTALBMSS: Stainless Steel Assistance Alarm Light and Buzzer Module; UDTAPCMSS: Stainless Steel Assistance Alarm Pull Cord Module; UDTASPCSS: Stainless Steel Assistance Alarm Replacement Pull Cord; UDTASMBSS: Stainless Steel Surface mount Box |
Dimensions
| Dimensions (mm) | 87 x 87 x 41 |
|---|
Assistance Alarm Reset Module features
