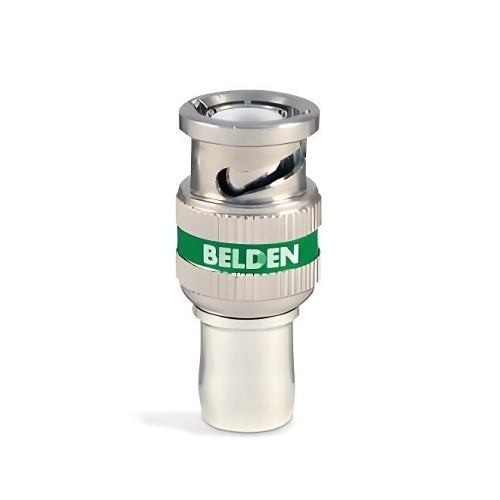

Belden 1694ABHD1 BNC connector, Green

Please note: this is a non-returnable item (excluding faulty goods)

Belden 1694ABHD1 is a BNC connector.

This page covers Belden part 1694ABHD1. Everything below is recorded against that exact part number rather than against the wider range it belongs to.

The figures held against it cover application/usage, connector gender, packaged quantity among others. Anything not listed we have not stated.

Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.

Key features

• Application/Usage: HD-SDI, Video, Digital Video, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P. This is the figure the record carries for this exact part number.
• Connector Gender: Male. Parts in the same family can differ here, so check the code rather than the family.
• Packaged Quantity: 50. It is listed for this part number, not for the range as a whole.
• American Wire Gauge: 18AWG. Where your specification names a figure, compare it against this one before ordering.
• Cable Type: Category 6. Parts in the same family can differ here, so check the code rather than the family.
• Contact Plating: Gold. This is the figure the record carries for this exact part number.
• Impedance: 75Ohm. Where your specification names a figure, compare it against this one before ordering.
• RoHS compliance: Recorded as compliant with the Restriction of Hazardous Substances rules, which limit specified hazardous materials in electrical equipment. It is listed for this part number, not for the range as a whole.
• WEEE Compliant: Compliant. This is the figure the record carries for this exact part number.
• Connector Type: BNC. Parts in the same family can differ here, so check the code rather than the family.
• Colour: Green. It is listed for this part number, not for the range as a whole.
• Material: Brass, Gold Plated, Nickel Plated, PTFE. Where your specification names a figure, compare it against this one before ordering.
• Environmental certification: ELV, EU WEEE, RoHS 2. Parts in the same family can differ here, so check the code rather than the family.
• Environmental status: Present on this part number. The record states it as a property of this part rather than of the wider range. This is the figure the record carries for this exact part number.

Use cases

Specify this part where the BNC connector role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.

• Where it goes: Recorded for indoor use.
• Typical application: HD-SDI, Video, Digital Video, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P.

If you are matching this to an existing installation, work from the 1694ABHD1 part number rather than the description.
