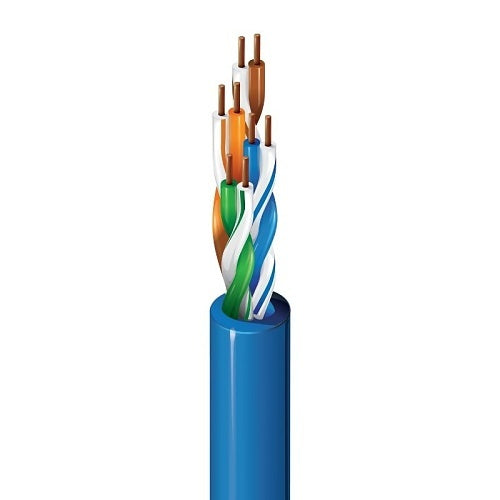

Belden 1583E.01U305 cable, 305.00m
Free Delivery
£
153
91
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Belden 1583E.01U305 is a cable from the Category Cable range.
Category 5e Premise Horizontal Cable (100MHz), 4-Pair, 24AWG solid bare copper conductors, U/UTP, Polyethylene insulation, PVC jacket. Suitable as horizontal and building backbone cable; Support current and future Category 5e applications, such as: 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM.
Key features
- Voltage Rating of 72V DC
- Operating Temperature from -30°C to 60°C
- Electrical values are expected performance based on cable testing and representative performance within a typical Belden system
- Fully compatible with network devices
£
153
91
Price
Technical Details
Specifications
Brand Name
Belden
Manufacturer Part Number
1583E.01U305
Product Series
Category Cable
Product Type
Network Cable
General information
Package Type
Reel-in-a-Box
Technical information
American Wire Gauge
24AWG
Cable Type
Category 5e
CPR Euroclass Rating
Eca
Device Supported
Network Device
Impedance
100Ohm
Number of Conductors
8
Number of Pairs
4
Shielding
No
Solid or Stranded
Solid
Certifications
RoHS compliance
Compliant
WEEE compliance
Compliant
Media & performance
Data Transfer Rate
1Gbps
Physical characteristics
Cable Length
305.00m
Colour
Blue
Insulation Material
PE
Material
PVC
Miscellaneous
Compatibility
Category 5e applications, Horizontal and building backbone cable
Attributes
Compatibility
Category 5e applications, Horizontal and building backbone cable
Device Supported
Network Device
Features
Attenuation Crosstalk Ratio Far-end (ACR-F), Attenuation to Crosstalk Ratio (ACR), Bendable, Equal Level Far End Crosstalk (ELFEXT), Minimized Near-End Crosstalk (NEXT), PoE, Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Equal Level Far-End Crosstalk (PSELFEXT), Power-sum Near End Crosstalk (PSNEXT), Unshielded Twisted Pair (UTP)
Specifications
| Brand Name | Belden |
|---|---|
| Manufacturer Part Number | 1583E.01U305 |
| Product Series | Category Cable |
| Product Type | Network Cable |
General information
| Package Type | Reel-in-a-Box |
|---|
Technical information
| American Wire Gauge | 24AWG |
|---|---|
| Cable Type | Category 5e |
| CPR Euroclass Rating | Eca |
| Device Supported | Network Device |
| Impedance | 100Ohm |
| Number of Conductors | 8 |
| Number of Pairs | 4 |
| Shielding | No |
| Solid or Stranded | Solid |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Media & performance
| Data Transfer Rate | 1Gbps |
|---|
Physical characteristics
| Cable Length | 305.00m |
|---|---|
| Colour | Blue |
| Insulation Material | PE |
| Material | PVC |
Miscellaneous
| Compatibility | Category 5e applications, Horizontal and building backbone cable |
|---|
Attributes
| Compatibility | Category 5e applications, Horizontal and building backbone cable |
|---|---|
| Device Supported | Network Device |
| Features | Attenuation Crosstalk Ratio Far-end (ACR-F), Attenuation to Crosstalk Ratio (ACR), Bendable, Equal Level Far End Crosstalk (ELFEXT), Minimized Near-End Crosstalk (NEXT), PoE, Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Equal Level Far-End Crosstalk (PSELFEXT), Power-sum Near End Crosstalk (PSNEXT), Unshielded Twisted Pair (UTP) |
