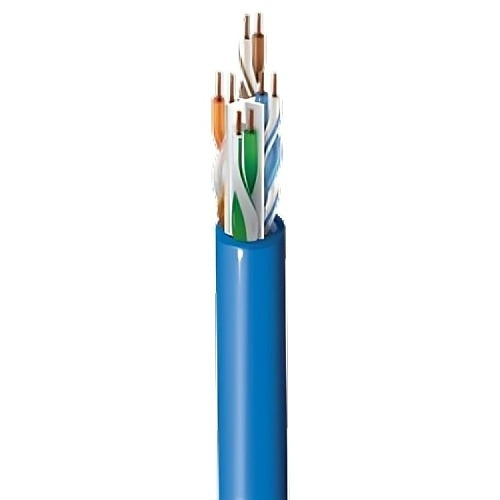

Belden 7965GLZ.00A305 network cable, 305m
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Belden 7965GLZ.00A305 is a network cable from the Category Cable range.
Category 6 Premise Horizontal Cable (250MHz), 4-Pair, 24 AWG solid Bare copper conductors, U/UTP, Polyethylene insulation, LSZH jacket CPR Eca. Suitable Applications, horizontal and building backbone cable; support current and future Category 6 and 5e applications, such as 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM.
Key features
- 305m length for extensive coverage
- Category 6 cable supporting up to 250MHz
- 24 AWG solid bare copper conductors
- U/UTP with polyethylene insulation
- LSZH jacket for low smoke and zero halogen
- Supports Gigabit Ethernet, 100Base-T, 10Base-T, FDDI, and ATM
- Ideal for horizontal and building backbone cabling
If you are matching this to an existing installation, work from the 7965GLZ.00A305 part number rather than the description.
-
Download
- 7965GLZ.00A305 — Product Manual
Specifications
General information
Technical information
Media & performance
Physical characteristics
Miscellaneous
Attributes
Specifications
| Brand Name | Belden |
|---|---|
| Manufacturer Part Number | 7965GLZ.00A305 |
| Product Series | Category Cable |
| Product Type | Network Cable |
General information
| Package Type | Reel/Spool |
|---|
Technical information
| American Wire Gauge | 24AWG |
|---|---|
| Cable Rating | Eca |
| Cable Type | Category 6 |
| CPR Euroclass Rating | Eca |
| Device Supported | ATM, Network Device |
| Impedance | 100Ohm |
| Jacket Type | Halogen-Free Jacket |
| Number of Pairs | 4 |
| Shielding | No |
| Solid or Stranded | Solid |
Media & performance
| Data Transfer Rate | 1Gbps |
|---|
Physical characteristics
| Cable Length | 305.00m |
|---|---|
| Colour | Blue |
| Insulation Material | PE |
| Jacket Material | LSZH |
| Material | LSZH |
Miscellaneous
| Compatibility | Category 6 and 5e applications, Horizontal and building backbone cable |
|---|---|
| Environmental status | Yes |
Attributes
| Compatibility | Category 6 and 5e applications, Horizontal and building backbone cable |
|---|---|
| Device Supported | ATM, Network Device |
| Features | Attenuation Crosstalk Ratio Far-end (ACR-F), Attenuation to Crosstalk Ratio (ACR), Bendable, Flame Retardant, Halogen Free, Minimized Near-End Crosstalk (NEXT), PoE, Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Near End Crosstalk (PSNEXT), Unshielded Twisted Pair (UTP) |
