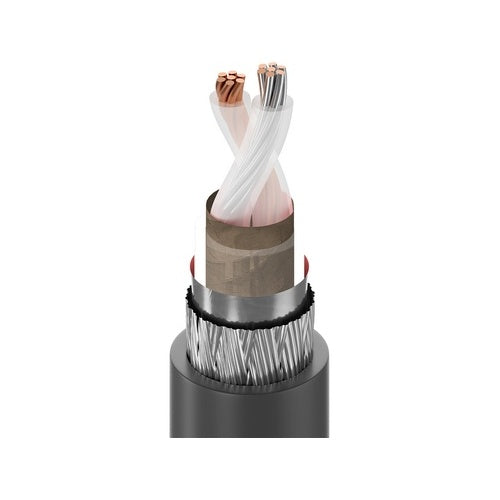

Belden 9207 0101000 ohms cable, 305.00m
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Belden 9207 0101000 is an ohms cable from the Coaxial range.
This page covers Belden part 9207 0101000. Everything below is recorded against that exact part number rather than against the wider range it belongs to.
The figures held against it cover application/usage, package type, packaged quantity among others. Anything not listed we have not stated.
Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.
Key features
- Application/Usage: Computer, Instrumentation. This is the figure the record carries for this exact part number.
- Package Type: Reel/Spool. Parts in the same family can differ here, so check the code rather than the family.
- Packaged Quantity: 305. It is listed for this part number, not for the range as a whole.
- American Wire Gauge: 20AWG. Where your specification names a figure, compare it against this one before ordering.
- Cable Type: Twinaxial. Parts in the same family can differ here, so check the code rather than the family.
- Conductor Count: 2. This is the figure the record carries for this exact part number.
- Conductor Material: Tinned Copper. Where your specification names a figure, compare it against this one before ordering.
- CPR Euroclass Rating: Eca. It is listed for this part number, not for the range as a whole.
- Fibre Category: OM3. This is the figure the record carries for this exact part number.
- Impedance: 100Ohm. Parts in the same family can differ here, so check the code rather than the family.
- Number of Conductors: 2. It is listed for this part number, not for the range as a whole.
- Number of Pairs: 1. Where your specification names a figure, compare it against this one before ordering.
- Shielding: Present on this part number. The record states it as a property of this part rather than of the wider range. Parts in the same family can differ here, so check the code rather than the family.
- Solid or Stranded: Stranded. This is the figure the record carries for this exact part number.
Use cases
Specify this part where the ohms cable role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.
- Where it goes: Recorded for indoor, outdoor use.
- Typical application: Computer, Instrumentation.
If you are matching this to an existing installation, work from the 9207 0101000 part number rather than the description.
Specifications
General information
Technical information
Certifications
Environmental conditions
Physical characteristics
Miscellaneous
Attributes
Specifications
| Brand Name | Belden |
|---|---|
| Manufacturer Part Number | 9207 0101000 |
| Product Series | Coaxial |
General information
| Application/Usage | Computer, Instrumentation |
|---|---|
| Package Type | Reel/Spool |
| Packaged Quantity | 305 |
Technical information
| American Wire Gauge | 20AWG |
|---|---|
| Cable Type | Twinaxial |
| Conductor Count | 2 |
| Conductor Material | Tinned Copper |
| CPR Euroclass Rating | Eca |
| Fibre Category | OM3 |
| Impedance | 100Ohm |
| Number of Conductors | 2 |
| Number of Pairs | 1 |
| Shielding | Yes |
| Solid or Stranded | Stranded |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Environmental conditions
| Operating Temperature (T-T) | -30-75°C |
|---|
Physical characteristics
| Cable Length | 305.00m |
|---|---|
| Colour | Black |
| Insulation Material | PE |
| Jacket Material | PVC |
| Material | PE, PVC, Tinned Copper |
Miscellaneous
| Compatibility | Computer, Instrumentation |
|---|
Attributes
| Compatibility | Computer, Instrumentation |
|---|---|
| Indoor or outdoor use | Indoor, Outdoor |
