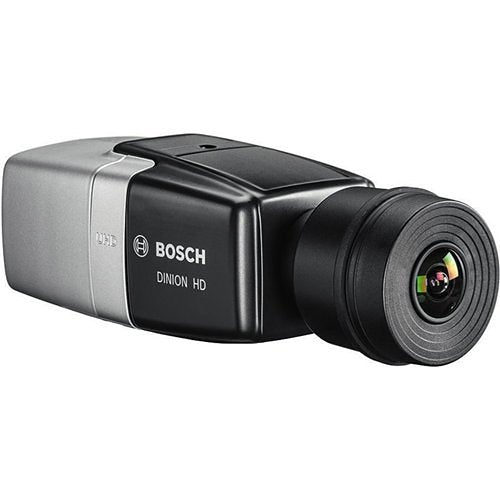

Bosch F.01U.364.633 box camera, 12MP
Free Delivery
£
1,581
07
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Bosch F.01U.364.633 is a box camera from the 8000 range.
The DINION IP ultra 8000 MP with 12 megapixel resolution offers crisp, clear and extremely detailed images for the most demanding IP video surveillance requirements. It captures 12 megapixel at 20 fps, and 4K UHD at 30 fps, so providing images of fast moving objects in high resolutions. The content-rich image allows effective retrospective analysis at the level of detail that makes the difference when collecting forensic evidence.
The camera offers a wide-angle overview and multiple focus points on a single screen so now you can focus on details without losing the bigger picture.
Key features
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- Up to 1920 x 1080 resolution for surveillance in real-time
£
1,581
07
Price
Technical Details
Specifications
Brand Name
Bosch
Manufacturer Part Number
F.01U.364.633
Product Series
8000
Product Type
Box Cameras
General information
Packaged Quantity
1
Technical information
Connectivity Technology
Wired
Effective resolution
12MP
Lens Mount Type
CS-Mount
Maximum Frame Rate
30fps
Minimum Focal Length
4.00mm
Night Vision Type
NIR Active Illumination
Video Formats
H.264 / AVC, MJPEG
Video Resolution
1280 x 720
Video Signal Format
NTSC, PAL
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Display & graphics
Maximum Illumination
0.09lux
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
50°C
Minimum Operating Temperature
-20°C
Operating Humidity
20-93%
Exposure
Longest Shutter Speed
1/25s
Shortest Shutter Speed
1/15000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
35mm, 4-13mm, 50mm, 75mm
Lens Included
No
Maximum Focal Length
75.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
Silver
Form Factor
Box
Weight
690.00g
Power description
Input Voltage
100-240V AC, 110-240V AC, 12V DC, 24V AC
Product information
Mount Type
Junction Box Mount
Storage
Recording Formats
H.264
Storage Type
RAM (Volatile Memory), SD Card
Video
Analog Video Signal Format
NTSC, PAL
Maximum Resolution
1920 x 1080
Miscellaneous
Environmental status
Yes
Features
Audio Detection, Automatic Defog, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Motion Detection, Noise Reduction, Privacy Masking, White Balance
Indoor or outdoor use
Outdoor
Attributes
Input Voltage
100-240V AC, 110-240V AC, 12V DC, 24V AC
Package Contents
DINION IP Ultra 8000 MP; Quick Install Instructions; Power Connector; Data/Alarm Connector; Identification Labels
Weight
690.00g
Specifications
| Brand Name | Bosch |
|---|---|
| Manufacturer Part Number | F.01U.364.633 |
| Product Series | 8000 |
| Product Type | Box Cameras |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 12MP |
| Lens Mount Type | CS-Mount |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 4.00mm |
| Night Vision Type | NIR Active Illumination |
| Video Formats | H.264 / AVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Video Signal Format | NTSC, PAL |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Display & graphics
| Maximum Illumination | 0.09lux |
|---|---|
| Maximum video resolution | 1920 x 1080 |
Environmental conditions
| Maximum Operating Temperature | 50°C |
|---|---|
| Minimum Operating Temperature | -20°C |
| Operating Humidity | 20-93% |
Exposure
| Longest Shutter Speed | 1/25s |
|---|---|
| Shortest Shutter Speed | 1/15000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 35mm, 4-13mm, 50mm, 75mm |
|---|---|
| Lens Included | No |
| Maximum Focal Length | 75.00mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Silver |
|---|---|
| Form Factor | Box |
| Weight | 690.00g |
Power description
| Input Voltage | 100-240V AC, 110-240V AC, 12V DC, 24V AC |
|---|
Product information
| Mount Type | Junction Box Mount |
|---|
Storage
| Recording Formats | H.264 |
|---|---|
| Storage Type | RAM (Volatile Memory), SD Card |
Video
| Analog Video Signal Format | NTSC, PAL |
|---|---|
| Maximum Resolution | 1920 x 1080 |
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | Audio Detection, Automatic Defog, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Motion Detection, Noise Reduction, Privacy Masking, White Balance |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 100-240V AC, 110-240V AC, 12V DC, 24V AC |
|---|---|
| Package Contents | DINION IP Ultra 8000 MP; Quick Install Instructions; Power Connector; Data/Alarm Connector; Identification Labels |
| Weight | 690.00g |
