Bosch F.01U.314.806 boxed IP camera, 2MP

Visit CCTV Cameras
Free Delivery
£ 1,118 77
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

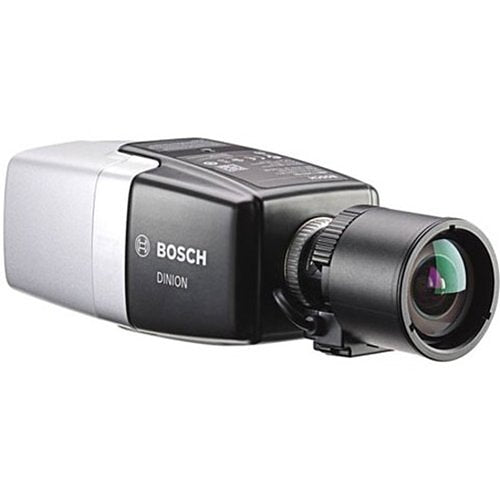

Bosch F.01U.314.806 is a boxed IP camera from the 7000 range.

This camera provides clear images 24/7 - even at night or under low-light conditions. The exceptional starlight sensitivity enables this camera to work with a minimum of ambient light. The extended dynamic mode provides detailed images in scenes with challenging lighting.

The camera is available in 1080p or 720p resolution versions and provides up to 60 images per second. There is a selection of high quality lenses separately available.

Key features

  • Excellent low-light performance
  • Built-in Intelligent Video Analytics to trigger relevant alerts and quickly retrieve data
  • Intelligent Dynamic Noise Reduction reduces bandwidth and storage requirements by up to 50%
  • Extended Dynamic Range mode to see details in bright and dark areas simultaneously
  • Auto back focus for fast installation
£ 1,118 77
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£1,118.77 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Bosch
Manufacturer Part Number
F.01U.314.806
Product Series
7000
Product Type
Box Cameras
General information
Packaged Quantity
1
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Lens Mount Type
CS-Mount
Maximum Frame Rate
60fps
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Formats
H.264 / AVC, MJPEG
Video Resolution
1280 x 720
Video Signal Format
NTSC, PAL
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Display & graphics
Maximum Illumination
0.0069lux
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
50°C
Minimum Operating Temperature
-20°C
Operating Humidity
93%
Exposure
Longest Shutter Speed
1/30 Second
Minimum Illumination
0.0069lux
Shortest Shutter Speed
1/15000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Lens Included
No
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Form Factor
Box Mount
Height
66.00mm
Weight
840.00g
Power description
Input Voltage
12V DC, 24V AC, 48V DC
Product information
Length
140.00mm
Mount Type
Ceiling Mount, Junction Box Mount, Pole Mount, Tripod Mount, Wall Mount
Storage
Recording Formats
H.264
Storage Type
SD Card
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Maximum Resolution
1920 x 1080
Miscellaneous
Environmental status
Yes
Features
Audio Detection, Auto Gain Control, Automatic Defog, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Dynamic Noise Reduction, Enter/Exit Detector, ePTZ, Privacy Masking, Region of Interest, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Indoor or outdoor use
Indoor, Outdoor
Package Contents
1 x DINION IP Starlight 7000 HD 1 x Sensor protection cap (mounted on camera) 1 x Power connector (2 Pins) 1 x Data/Alarm connector (12 Pins) 1 x Installation Guide , 1 x Identification Label Sheet 1 x C/CS Mount Adapter Ring for Mounting a Lens with a C-Mount
Attributes
Input Voltage
12V DC, 24V AC, 48V DC
Package Contents
1 x DINION IP Starlight 7000 HD 1 x Sensor protection cap (mounted on camera) 1 x Power connector (2 Pins) 1 x Data/Alarm connector (12 Pins) 1 x Installation Guide , 1 x Identification Label Sheet 1 x C/CS Mount Adapter Ring for Mounting a Lens with a C-Mount
Weight
840.00g
Specifications
General information
Technical information
Camera
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes

Specifications

Brand Name Bosch
Manufacturer Part Number F.01U.314.806
Product Series 7000
Product Type Box Cameras

General information

Packaged Quantity 1

Technical information

Connectivity Technology Wired
Effective resolution 2MP
Lens Mount Type CS-Mount
Maximum Frame Rate 60fps
Night Vision Yes
Night Vision Type Active Illumination, Near-Infrared (NIR)
Video Formats H.264 / AVC, MJPEG
Video Resolution 1280 x 720
Video Signal Format NTSC, PAL
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS

Display & graphics

Maximum Illumination 0.0069lux
Maximum video resolution 1920 x 1080

Environmental conditions

Maximum Operating Temperature 50°C
Minimum Operating Temperature -20°C
Operating Humidity 93%

Exposure

Longest Shutter Speed 1/30 Second
Minimum Illumination 0.0069lux
Shortest Shutter Speed 1/15000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Lens Included No

Network & communication

Remote Management Yes

Physical characteristics

Colour White
Form Factor Box Mount
Height 66.00mm
Weight 840.00g

Power description

Input Voltage 12V DC, 24V AC, 48V DC

Product information

Length 140.00mm
Mount Type Ceiling Mount, Junction Box Mount, Pole Mount, Tripod Mount, Wall Mount

Storage

Recording Formats H.264
Storage Type SD Card

Video

Analog Video Signal Format CVBS (Composite Video Baseband Signal)
Maximum Resolution 1920 x 1080

Miscellaneous

Environmental status Yes
Features Audio Detection, Auto Gain Control, Automatic Defog, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Dynamic Noise Reduction, Enter/Exit Detector, ePTZ, Privacy Masking, Region of Interest, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Indoor or outdoor use Indoor, Outdoor
Package Contents 1 x DINION IP Starlight 7000 HD 1 x Sensor protection cap (mounted on camera) 1 x Power connector (2 Pins) 1 x Data/Alarm connector (12 Pins) 1 x Installation Guide , 1 x Identification Label Sheet 1 x C/CS Mount Adapter Ring for Mounting a Lens with a C-Mount

Attributes

Input Voltage 12V DC, 24V AC, 48V DC
Package Contents 1 x DINION IP Starlight 7000 HD 1 x Sensor protection cap (mounted on camera) 1 x Power connector (2 Pins) 1 x Data/Alarm connector (12 Pins) 1 x Installation Guide , 1 x Identification Label Sheet 1 x C/CS Mount Adapter Ring for Mounting a Lens with a C-Mount
Weight 840.00g

Bosch F.01U.314.806 boxed IP camera

Bosch F.01U.314.806 boxed IP camera, 2MP

Who this is for

For the installer — this is the boxed IP camera supplied under Bosch part number F.01U.314.806. Specify it by that part number.

The entries in the specification table are the ones held against this part number.

In plain English: this is a boxed IP camera made by Bosch. The part number F.01U.314.806 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this boxed IP camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact boxed IP camera I have been quoted? Check the manufacturer part number F.01U.314.806 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against F.01U.314.806 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
