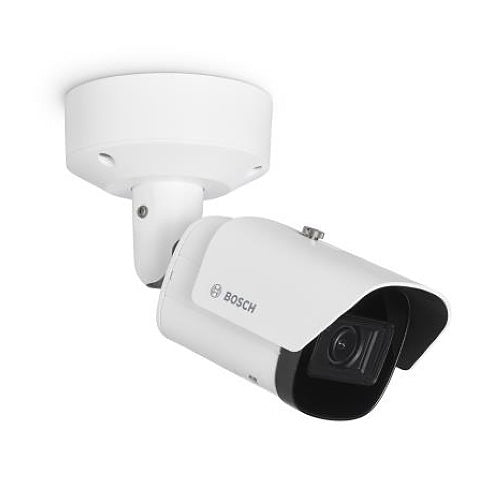

Bosch F.01U.393.998 bullet camera, 5MP
Free Delivery
£
1,017
06
(Incl. VAT)
About this product
Bosch F.01U.393.998 is a bullet camera from the 5100i IR range.
The camera is a versatile and professional surveillance camera for outdoor monitoring. It offers a 1/2.7’’ sensor and HDR technology at 5 MP resolution with a built-in intelligent infrared illuminator that provides high performance in extreme low-light environments.Built-in Intelligent Video Analytics Pro (IVA Pro) enriches full situational awareness and triggers relevant alerts.The robust design and stable housing with sunshield prevent overexposure in certain periods of the dayand help to provide optimal image stability.
Key features
- 5 MP for highly detailed images
- Starlight camera technology with excellent low-light performance
- IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
- High Dynamic Range to see every detail in both bright and dark areas of the scene
- Built-in intelligent IR illuminator with up to 60 m (197 ft) viewing distance
- H.265 high-efficiency video encoding
- Intelligent Video Analytics Pro (IVA Pro)
- Two-way audio
- DORI coverage
£
1,017
06
Price
Technical Details
Specifications
Brand Name
Bosch
Manufacturer Part Number
F.01U.393.998
Product Series
5100i IR
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
5MP
Field of View
Horizontal, Vertical
Field of View (Horizontal)
96.0°
Field of View (Vertical)
71.00°
Lens Type
Varifocal
Maximum Aperture
f/2.8
Maximum Frame Rate
30fps
Minimum Focal Length
3.20mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
3.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
60.00m
Certifications
Ingress protection
IP66, IP67
Display & graphics
Maximum video resolution
2592 x 1944
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-40°C
Operating Humidity
93%
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
3.2-10.5mm
Lens Included
Yes
Maximum Focal Length
10.50mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof, Impact Resistant, Waterproof
Form Factor
Bullet
Height
97.00mm
Weight
2.50kg
Power description
Input Voltage
12V DC, 24V AC
Product information
Diameter
148.00mm
Mount Type
Surface Mount
Storage
Storage Type
SD Card
Miscellaneous
Environmental status
Yes
Features
Audio Compression, Day/Night, Dynamic Noise Reduction, Mirror, Multi-view Stream, Privacy Masking, SD Card Local Storage, Video Management System, White Balance, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Input Voltage
12V DC, 24V AC
Package Contents
1 Desicant, 1 Mounting plate, 1 NBE-5703 -AL camera, 1 Quick Installation Guide, 1 RJ45 guider, 1 Safety information, 1 Secure screw (pre-installed in the camera), 1 TR20 Allen Key, 2 Grommets (pre-installed in the camera’s bottom cover, 2 Rubbers for conduit, 2 Terminal connectors (8 -pin,2 -pin) for audio/alarm/power, 3 Installer UX labels
Weight
2.50kg
Specifications
| Brand Name | Bosch |
|---|---|
| Manufacturer Part Number | F.01U.393.998 |
| Product Series | 5100i IR |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 5MP |
| Field of View | Horizontal, Vertical |
| Field of View (Horizontal) | 96.0° |
| Field of View (Vertical) | 71.00° |
| Lens Type | Varifocal |
| Maximum Aperture | f/2.8 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.20mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 3.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 60.00m |
Certifications
| Ingress protection | IP66, IP67 |
|---|
Display & graphics
| Maximum video resolution | 2592 x 1944 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 93% |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.2-10.5mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 10.50mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Bullet |
| Height | 97.00mm |
| Weight | 2.50kg |
Power description
| Input Voltage | 12V DC, 24V AC |
|---|
Product information
| Diameter | 148.00mm |
|---|---|
| Mount Type | Surface Mount |
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | Audio Compression, Day/Night, Dynamic Noise Reduction, Mirror, Multi-view Stream, Privacy Masking, SD Card Local Storage, Video Management System, White Balance, Wide Dynamic Range |
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 12V DC, 24V AC |
|---|---|
| Package Contents | 1 Desicant, 1 Mounting plate, 1 NBE-5703 -AL camera, 1 Quick Installation Guide, 1 RJ45 guider, 1 Safety information, 1 Secure screw (pre-installed in the camera), 1 TR20 Allen Key, 2 Grommets (pre-installed in the camera’s bottom cover, 2 Rubbers for conduit, 2 Terminal connectors (8 -pin,2 -pin) for audio/alarm/power, 3 Installer UX labels |
| Weight | 2.50kg |
