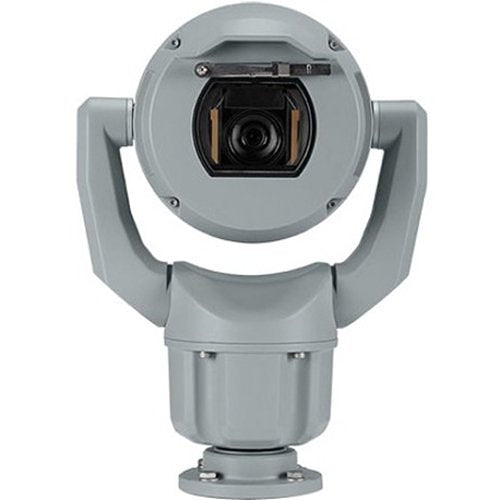

Bosch F.01U.353.590 camera, 2MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Bosch F.01U.353.590 is a camera from the IP starlight 7100i range.
The MIC IP starlight 7100i camera is an advanced PTZ surveillance platform for mission-critical applications. With starlight imaging technology and excellent lowlight sensitivity, the camera is the perfect solution for robust and high-quality imaging needs. The camera's ruggedized design meets customer expectations in demanding environments that exceed the capabilities of conventional IP cameras.
Even in installations subject to harsh shock/vibration conditions and/or extreme weather, the camera provides high-quality video images.
Key features
- Starlight camera technology with excellent low-light sensitivity (color = 0.0047 lx) and High dynamic range (120 dB) (to see details in bright and dark areas simultaneously)
- Exceptional strength and ruggedness for any outdoor application including traffic monitoring (bridges, tunnels, or highways), perimeter protection, city surveillance, and mining
- Built-in Camera Trainer to train the camera to recognize user-specified target objects, such as moving and non-moving objects, to alert operators of unusual scene activity
- Edge intelligence with Intelligent Tracking and object detection even when the camera is moving
- Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field (up to 550 m (1804.50 ft)) to avoid dark spots or an over-illuminated scene
Specifications
General information
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Bosch |
|---|---|
| Manufacturer Part Number | F.01U.353.590 |
| Product Series | IP starlight 7100i |
| Product Type | Camera |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.5 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 6.60mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 30.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 550.00m |
Certifications
| Ingress protection | IP68 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 65°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 100% |
Exposure
| Longest Shutter Speed | 1/1 Second |
|---|---|
| Shortest Shutter Speed | 1/60000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 6.6-198mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 198.00mm |
| Minimum Aperture | f/4.8 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Silver |
|---|---|
| Durability | Corrosion Resistant, Dust Resistant, Impact Resistant, Shock Resistant, Vibration Resistant, Waterproof, Weather Resistant |
| Form Factor | Dome |
| Weight | 8.70kg |
Power description
| Input Voltage | 21-30V AC |
|---|
Product information
| Mount Type | Conduit Box Mount, Corner Mount, Pole Mount, Wall Mount |
|---|
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1920 x 1080 |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Infrared Illuminator, Built-in IR LED, Cross Line Detection, Day/Night, Defog, Dynamic Noise Reduction, Enter/Exit Detector, Privacy Masking, Removable IR Cut-off Filter, Rugged Design, Wide Dynamic Range |
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 21-30V AC |
|---|---|
| Package Contents | 1 x PTZ 2MP HDR 30x IP68 Gray ; 1 x Spanner Tool ; 1 x Base Gasket ; 1 x RJ45 Coupler ; 1 x MAC Address Labels ; 1 x Quick Installation Guide ; 1 x Safety Instructions |
| Weight | 8.70kg |
Bosch F.01U.353.590 camera, 2MP
