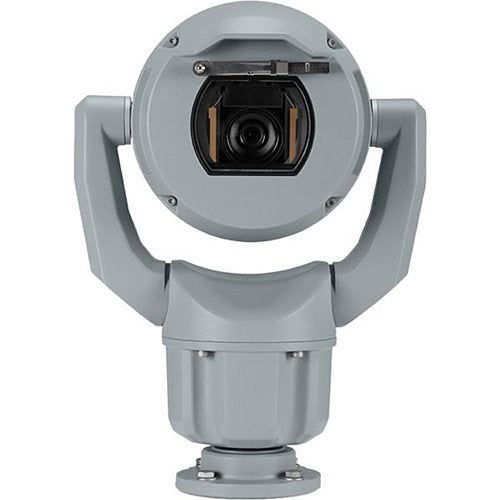

Bosch F.01U.359.797 camera, 2MP
Free Delivery
£
7,230
37
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Bosch F.01U.359.797 is a camera from the IP starlight 7100i range.
The MIC IP starlight 7100i camera is an advanced PTZ surveillance platform for mission-critical applications. With starlight imaging technology and excellent lowlight sensitivity, the camera is the perfect solution for robust and high-quality imaging needs. The camera's ruggedized design meets customer expectations in demanding environments that exceed the capabilities of conventional IP cameras.
Even in installations subject to harsh shock/vibration conditions and/or extreme weather, the camera provides high-quality video images.
Key features
- Starlight camera technology with excellent low-light sensitivity (color = 0.0047 lx) and High dynamic range (120 dB) (to see details in bright and dark areas simultaneously)
- Exceptional strength and ruggedness for any outdoor application including traffic monitoring (bridges, tunnels, or highways), perimeter protection, city surveillance, and mining
- Built-in Camera Trainer to train the camera to recognize user-specified target objects, such as moving and non-moving objects, to alert operators of unusual scene activity
- Edge intelligence with Intelligent Tracking and object detection even when the camera is moving
- Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field (up to 550 m (1804.50 ft)) to avoid dark spots or an over-illuminated scene
If you are matching this to an existing installation, work from the F.01U.359.797 part number rather than the description.
£
7,230
37
Price
Technical Details
Specifications
Brand Name
Bosch
Manufacturer Part Number
F.01U.359.797
Product Series
IP starlight 7100i
Product Type
Camera
General information
Packaged Quantity
1
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Lens Type
Varifocal
Maximum Aperture
f/1.5
Maximum Frame Rate
60fps
Minimum Focal Length
6.60mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Optical Zoom
30.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
550.00m
Certifications
Ingress protection
IP68
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
65°C
Minimum Operating Temperature
-40°C
Operating Humidity
100%
Exposure
Longest Shutter Speed
1/1 Second
Shortest Shutter Speed
1/60000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
6.6-198mm
Lens Included
Yes
Maximum Focal Length
198.00mm
Minimum Aperture
f/4.8
Network & communication
Remote Management
Yes
Physical characteristics
Colour
Grey
Durability
Corrosion Resistant, Dust Resistant, Impact Resistant, Shock Resistant, Vibration Resistant, Waterproof, Weather Resistant
Form Factor
Dome
Weight
8.70kg
Power description
Input Voltage
21-30V AC
Product information
Mount Type
Conduit Box Mount, Corner Mount, Pole Mount, Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Maximum Resolution
1920 x 1080
Miscellaneous
Environmental status
Yes
Features
Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Infrared Illuminator, Built-in IR LED, Cross Line Detection, Day/Night, Defog, Dynamic Noise Reduction, Enter/Exit Detector, Privacy Masking, Removable IR Cut-off Filter, Rugged Design, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Input Voltage
21-30V AC
Package Contents
1 x PTZ 2MP HDR 30x IP68 Black ; 1 x Spanner Tool ; 1 x Base Gasket ; 1 x RJ45 Coupler ; 1 x MAC Address Labels ; 1 x Quick Installation Guide ; 1 x Safety Instructions
Weight
8.70kg
Specifications
| Brand Name | Bosch |
|---|---|
| Manufacturer Part Number | F.01U.359.797 |
| Product Series | IP starlight 7100i |
| Product Type | Camera |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.5 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 6.60mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 30.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 550.00m |
Certifications
| Ingress protection | IP68 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 65°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 100% |
Exposure
| Longest Shutter Speed | 1/1 Second |
|---|---|
| Shortest Shutter Speed | 1/60000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 6.6-198mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 198.00mm |
| Minimum Aperture | f/4.8 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Grey |
|---|---|
| Durability | Corrosion Resistant, Dust Resistant, Impact Resistant, Shock Resistant, Vibration Resistant, Waterproof, Weather Resistant |
| Form Factor | Dome |
| Weight | 8.70kg |
Power description
| Input Voltage | 21-30V AC |
|---|
Product information
| Mount Type | Conduit Box Mount, Corner Mount, Pole Mount, Wall Mount |
|---|
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1920 x 1080 |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Infrared Illuminator, Built-in IR LED, Cross Line Detection, Day/Night, Defog, Dynamic Noise Reduction, Enter/Exit Detector, Privacy Masking, Removable IR Cut-off Filter, Rugged Design, Wide Dynamic Range |
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 21-30V AC |
|---|---|
| Package Contents | 1 x PTZ 2MP HDR 30x IP68 Black ; 1 x Spanner Tool ; 1 x Base Gasket ; 1 x RJ45 Coupler ; 1 x MAC Address Labels ; 1 x Quick Installation Guide ; 1 x Safety Instructions |
| Weight | 8.70kg |
