About this product
Please note: this is a non-returnable item (excluding faulty goods)

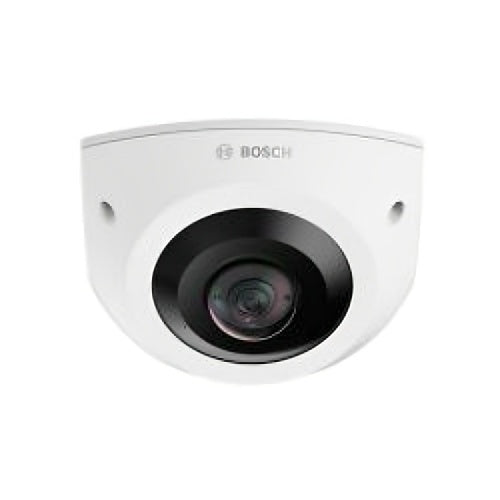

Bosch F.01U.407.683 is a dome from the 7100i range.
Vandal resistant 6 MP corner camera with IVA Pro, Intelligent Audio Analytics, HDR, 940nm IR and IP66 protectionNDAA compliant.
Key features
- 131° Horizontal and 96° Vertical field of views for complete scene coverage with no blind spots
- HDR and intelligent IR illumination with invisible IR (940 nm) for better images in bright and dark scenes
- Corner-mount and anti-ligature (no-grip) design for maximum safety with quick and easy installation and set-up
- Hard exterior shell to withstand the harshest environments
- Built-in Intelligent Video and Audio Analytics to trigger relevant alerts and quickly retrieve data
£
1,729
00
Price
Technical Details
Specifications
Brand Name
Bosch
Manufacturer Part Number
F.01U.407.683
Product Series
7100i
Product Type
Dome
Technical information
Connectivity Technology
Wired
Effective resolution
6MP
Field of View
Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/2.4
Maximum Frame Rate
30fps
Minimum Focal Length
2.50mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
15.00m
Certifications
CE marking
Yes
Ingress protection
IP66
Environmental conditions
Maximum Operating Temperature
50°C
Minimum Operating Temperature
-10°C
Operating Humidity
5-100%
Exposure
Minimum Illumination
0.0720lux
Shortest Shutter Speed
1/30000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.5mm
Lens Included
Yes
Maximum Focal Length
2.50mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Depth
202.30mm
Durability
Vandal Resistant
Form Factor
Dome
Height
136.50mm
Width
184.40mm
Power description
Input Voltage
12V DC, 24V AC
Product information
Mount Type
Corner Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Environmental status
Yes
Features
Back Light Compensation (BLC), Built-in IR LED, Built-in Microphone, Day/Night, Human Detection, Privacy Masking, Vehicle Detection, Video Content Analytics, White Balance
Impact protection
IK10, IK11
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
12V DC, 24V AC
Package Contents
FLEXIDOME corner 7100i IR camera; Corner mount box; Face plate; IR cover; TR20 Allen key for camera installation; RJ-45 punch-through aid; M20 rubber grommets (attached to the camera) MAC address labels; Quick Installation Guide; Safety and security information manual
