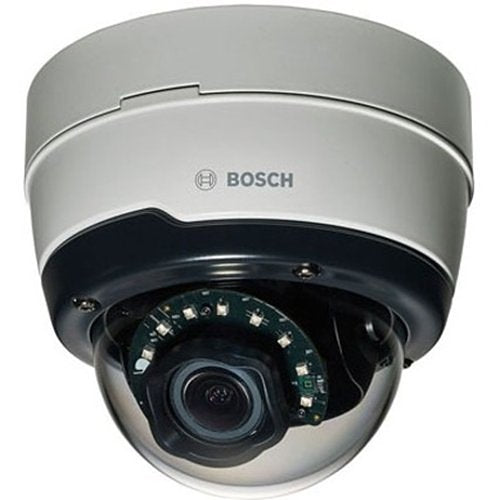

Bosch F.01U.379.283 dome IP camera, 5MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Bosch F.01U.379.283 is a dome IP camera from the 5000i range.
The 5MP outdoor dome cameras from Bosch are professional surveillance cameras that provide high quality images for demanding security and surveillance network requirements. These robust domes are true day/night cameras offering excellent performance day or night. There is a version with a built-in active infrared illuminator that provides high performance in extreme low-light environments.
System overview
Vandal resistant outdoor dome with varifocal lens
Ideal for outdoor use, the IK10-rated design is suitable for installations where a vandal resistance is important. The camera is protected against water and dust to IP66 standards. The varifocal lens allows you to choose the coverage area to best suit your application.
Mounting options are numerous, including surface, wall, and suspended-ceiling mounting. The wizard is activated from the PC or from the on-board camera push button making it easy to choose the workflow that suits best. The AVF (Automatic Varifocal) feature means that the zoom can be changed without opening the camera.
The automatic motorized zoom/focus adjustment with 1:1 pixel mapping ensures the camera is always accurately focused. Functions
Essential Video Analytics
The built-in video analysis reinforces the Intelligence- at-the-Edge concept and now delivers even more powerful features. Essential Video Analytics is ideal for use in controlled environments with limited detection ranges. The system reliably detects, tracks, and analyzes objects, and alerts you when predefined alarms are triggered.
A smart set of alarm rules makes complex tasks easy and reduces false alarms to a minimum. Metadata is attached to your video to add sense and structure. This enables you to quickly retrieve the relevant images from hours of stored video.
Metadata can also be used to deliver irrefutable forensic evidence or to optimize business processes based on people counting or crowd density information.
Key features
- Fully configurable H.265 multi-streaming
- 5MP resolution with image quality up to 30 fps for highly detailed images
Specifications
Technical information
Camera
Certifications
Environmental conditions
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Bosch |
|---|---|
| Manufacturer Part Number | F.01U.379.283 |
| Product Series | 5000i |
| Product Type | Dome Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 5MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.3 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.00mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Number of IR LEDs | 10 |
| Optical Zoom | 3.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Video Signal Format | NTSC |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 30.00m |
Certifications
| Ingress protection | IP66 |
|---|
Environmental conditions
| Operating Humidity | 100% |
|---|
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.2-10.5mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 10.00mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Silver |
|---|---|
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Weight | 1.10kg |
Power description
| Input Voltage | 24V AC |
|---|
Product information
| Mount Type | Surface Mount |
|---|
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | Cloud-Only Storage, SD Card |
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1280 x 720 |
Miscellaneous
| Features | Audio Detection, Automatic Defog, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Noise Reduction, Privacy Masking, SD Card Local Storage, Tamper Detection, White Balance, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 24V AC |
|---|---|
| Weight | 1.10kg |
