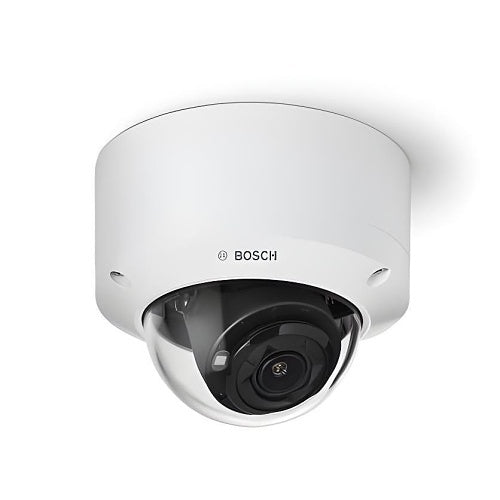

Bosch F.01U.394.428 dome IP camera, 2MP
Free Delivery
£
743
38
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Bosch F.01U.394.428 is a dome IP camera from the indoor 5100i IR range.
The camera is a versatile and professional surveillance camera for indoor monitoring. It delivers exceptional image quality, starlight performance and High Dynamic Range at resolution HD 1080p for highly detailed image for demanding security and surveillance network requirements. Built-in Intelligent Video Analytics Pro (IVA Pro) enriches full situational awareness and triggers relevant alerts.
Key features
- 1080p60 for highly detailed images
- Starlight camera technology with excellent low-light performance
- IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
- High Dynamic Range to see every detail in both bright and dark areas of the scene
- Built-in intelligent IR illuminator with up to 45 m (148 ft) viewing distance
-
Download
- F.01U.394.428 — Product Manual
£
743
38
Price
Technical Details
Specifications
Brand Name
Bosch
Manufacturer Part Number
F.01U.394.428
Product Series
indoor 5100i IR
Product Type
Network Camera
Technical information
Connectivity Technology
Wired, Wireless
Effective resolution
2MP
Field of View
Horizontal
Lens Type
Fixed
Maximum Frame Rate
60fps
Minimum Focal Length
3.20mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
3.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1920 x 1080
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
45.00m
Certifications
Ingress protection
IP54
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
50°C
Minimum Operating Temperature
-20°C
Operating Humidity
0-100%
Exposure
Longest Shutter Speed
2.4 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/15000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
3.2-10.5mm
Lens Included
Yes
Maximum Focal Length
10.50mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
Black
Durability
Vandal Resistant
Form Factor
Dome
Height
122.00mm
Power description
Input Voltage
48V DC
Product information
Diameter
148.00mm
Mount Type
Surface Mount
Storage
Storage Type
SD Card
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Miscellaneous
Environmental status
Yes
Impact protection
IK10
Indoor or outdoor use
Indoor
Package Contents
8-pin terminal block Adapter plate for cable conduit (0.5" / M20) Adapter plate for cable conduit (0.75" / M25) FLEXIDOME indoor 5100i IR - 2 MP camera Mount plate Quick installation guide RJ45 guider Safety information T-20 security Torx Allen key
Attributes
Input Voltage
48V DC
Package Contents
8-pin terminal block Adapter plate for cable conduit (0.5" / M20) Adapter plate for cable conduit (0.75" / M25) FLEXIDOME indoor 5100i IR - 2 MP camera Mount plate Quick installation guide RJ45 guider Safety information T-20 security Torx Allen key
Specifications
| Brand Name | Bosch |
|---|---|
| Manufacturer Part Number | F.01U.394.428 |
| Product Series | indoor 5100i IR |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired, Wireless |
|---|---|
| Effective resolution | 2MP |
| Field of View | Horizontal |
| Lens Type | Fixed |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 3.20mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 3.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1920 x 1080 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 45.00m |
Certifications
| Ingress protection | IP54 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 50°C |
|---|---|
| Minimum Operating Temperature | -20°C |
| Operating Humidity | 0-100% |
Exposure
| Longest Shutter Speed | 2.4 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/15000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.2-10.5mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 10.50mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Black |
|---|---|
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Height | 122.00mm |
Power description
| Input Voltage | 48V DC |
|---|
Product information
| Diameter | 148.00mm |
|---|---|
| Mount Type | Surface Mount |
Storage
| Storage Type | SD Card |
|---|
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Indoor |
| Package Contents | 8-pin terminal block Adapter plate for cable conduit (0.5" / M20) Adapter plate for cable conduit (0.75" / M25) FLEXIDOME indoor 5100i IR - 2 MP camera Mount plate Quick installation guide RJ45 guider Safety information T-20 security Torx Allen key |
Attributes
| Input Voltage | 48V DC |
|---|---|
| Package Contents | 8-pin terminal block Adapter plate for cable conduit (0.5" / M20) Adapter plate for cable conduit (0.75" / M25) FLEXIDOME indoor 5100i IR - 2 MP camera Mount plate Quick installation guide RJ45 guider Safety information T-20 security Torx Allen key |
Bosch F.01U.394.428 dome IP camera, 2MP
