Bosch F.01U.389.264 fixed dome camera, 12MP

Free Delivery
£ 1,876 94
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

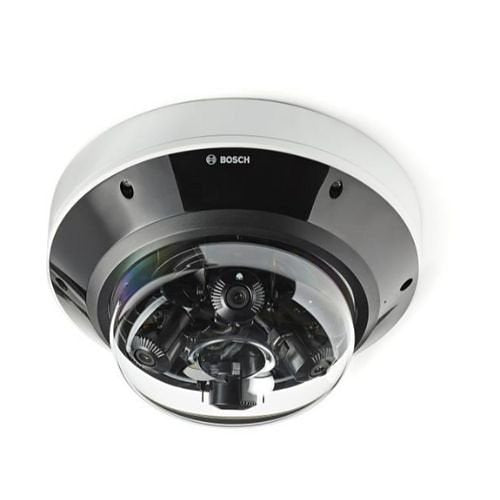

Bosch F.01U.389.264 is a fixed dome camera from the multi 7000i IR range.

The FLEXIDOME multi 7000i IR camera is built for high-quality performance, featuring four independent imagers with motorized zoom/focus lenses. It helps to simplify installation and lower costs while maintaining flexibility in coverage. With four scenes simultaneously in a single camera, it is perfect for wide area coverage, traffic intersections and building corners.

With its integrated 360° IR lighting, the camera can capture crisp images in extremely low light conditions, such as at night-time or dusk. When the lenses are tilted at the right angle, the camera can even cover an area up to full 360°. Additionally, the zoom capability allows the camera to obtain detailed coverage for more distant areas.

Functions

12-megapixel multi-directional overviews

Four independent 3-megapixel imagers with separate remote zoom and focus lenses capture very highquality images with a total resolution of 12 megapixels. Each of the four imagers can be set-up flexibly with 3- axis movement along a circular track. This enables surround coverage, capturing detailed images from every angle for comprehensive video coverage with four separate views from a single IP address.

High Dynamic Range

The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight.

The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. This method is used to provide standardized measurements, which can be used to compare different cameras. H.265 high-efficiency video encoding

The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 has become the new compression standard of choice for IP video surveillance systems.

Two-way audio and built-in microphone

Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. Alternatively, there is an integrated microphone to capture crisp and clear audio. By using the integrated or external microphone, audio detection can be used to generate alarms to alert the security operator quicker and act more proactively.

If required by local laws, the microphone can be blocked via a secure license key.

Key features

  • Four 3 MP imagers at 30 fps in one camera on a single IP address
  • Easy and flexible installation with four motorized zoom/focus lenses
  • High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
  • Built-in Intelligent Video Analytics to trigger relevant alerts and quickly retrieve data
  • Integrated surround IR illumination up to 30 m distance for pitch dark scenes
  • Two-way audio with built-in microphone
  • Flexible 3-axis movement for comprehensive coverage
  • Ideal for wide area coverage, traffic intersections, and building corners

If you are matching this to an existing installation, work from the F.01U.389.264 part number rather than the description.

£ 1,876 94
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£1,876.94 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Bosch
Manufacturer Part Number
F.01U.389.264
Product Series
multi 7000i IR
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
12MP
Field of View
Horizontal, Vertical
Lens Type
Varifocal
Maximum Aperture
f/1.9
Maximum Frame Rate
30fps
Minimum Focal Length
3.70mm
Night Vision
Yes
Night Vision Type
NIR Active Illumination
Optical Zoom
2.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
30.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
2048 x 1536
Number of Sensors
4
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-50°C
Operating Humidity
100%
Exposure
Longest Shutter Speed
1/25 Second
Shortest Shutter Speed
1/5000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Lens Included
Yes
Maximum Focal Length
7.70mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
Silver
Durability
Dust Resistant, Rain Resistant, Tamper Resistant, Vandal Resistant, Water Resistant
Form Factor
Dome
Height
137.00mm
Weight
3.38kg
Power description
Input Voltage
24V AC
Product information
Diameter
275.00mm
Mount Type
Gang Box Mount, Junction Box Mount, Surface Mount
Storage
Storage Type
SD Card
Miscellaneous
Environmental status
Yes
Features
Audio Compression, Back Light Compensation (BLC), Built-in Microphone, Day/Night, Highlight Compensation (HLC), Human Detection, Noise Reduction, Privacy Masking, Vehicle Detection, Video Content Analytics
Impact protection
IK10
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
24V AC
Package Contents
1 x Camera; 1 x Mounting plate; 1 x RJ-45 punch-through aid; 1 x TR20 Allen key; 1 x 2-pin power connector; 1 x 8-pin Audio and I/O connector; 2 x M20 rubber grommets , 1 x Quick installation guide; 1 x Safety information; 3 x Installer UX labels
Weight
3.38kg

Specifications

Brand Name Bosch
Manufacturer Part Number F.01U.389.264
Product Series multi 7000i IR
Product Type Network Camera

Technical information

Connectivity Technology Wired
Effective resolution 12MP
Field of View Horizontal, Vertical
Lens Type Varifocal
Maximum Aperture f/1.9
Maximum Frame Rate 30fps
Minimum Focal Length 3.70mm
Night Vision Yes
Night Vision Type NIR Active Illumination
Optical Zoom 2.0x
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution 1280 x 720
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 30.00m

Certifications

Ingress protection IP66

Display & graphics

Maximum video resolution 2048 x 1536
Number of Sensors 4

Environmental conditions

Maximum Operating Temperature 55°C
Minimum Operating Temperature -50°C
Operating Humidity 100%

Exposure

Longest Shutter Speed 1/25 Second
Shortest Shutter Speed 1/5000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Lens Included Yes
Maximum Focal Length 7.70mm

Network & communication

Remote Management Yes

Physical characteristics

Colour Silver
Durability Dust Resistant, Rain Resistant, Tamper Resistant, Vandal Resistant, Water Resistant
Form Factor Dome
Height 137.00mm
Weight 3.38kg

Power description

Input Voltage 24V AC

Product information

Diameter 275.00mm
Mount Type Gang Box Mount, Junction Box Mount, Surface Mount

Storage

Storage Type SD Card

Miscellaneous

Environmental status Yes
Features Audio Compression, Back Light Compensation (BLC), Built-in Microphone, Day/Night, Highlight Compensation (HLC), Human Detection, Noise Reduction, Privacy Masking, Vehicle Detection, Video Content Analytics
Impact protection IK10
Indoor or outdoor use Indoor, Outdoor

Attributes

Input Voltage 24V AC
Package Contents 1 x Camera; 1 x Mounting plate; 1 x RJ-45 punch-through aid; 1 x TR20 Allen key; 1 x 2-pin power connector; 1 x 8-pin Audio and I/O connector; 2 x M20 rubber grommets , 1 x Quick installation guide; 1 x Safety information; 3 x Installer UX labels
Weight 3.38kg

Bosch F.01U.389.264 fixed dome camera

Bosch F.01U.389.264 fixed dome camera, 12MP

Who this is for

For the installer — this is the fixed dome camera supplied under Bosch part number F.01U.389.264. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a fixed dome camera made by Bosch. The part number F.01U.389.264 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this fixed dome camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact fixed dome camera I have been quoted? Check the manufacturer part number F.01U.389.264 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against F.01U.389.264 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
