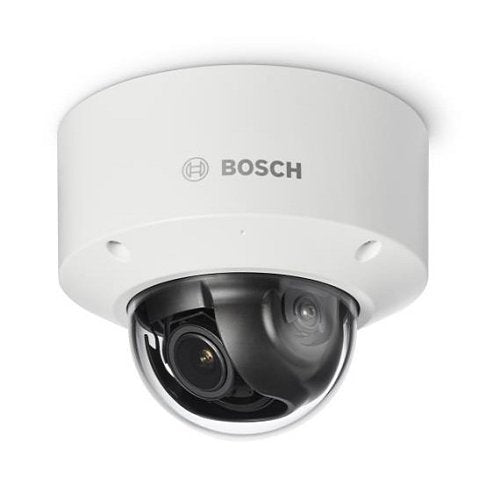

Bosch F.01U.393.108 fixed dome camera, 2MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Bosch F.01U.393.108 is a fixed dome camera from the IP indoor 8000i range.
The FLEXIDOME IP indoor 8000i - 2 MP X series camera offers a 1/1.8" sensor, starlight X and HDR X technology at HD 1080p resolution. It provides the perfect balance between high resolution and extreme low-light sensitivity with starlight X technology, ensuring highly detailed images even in the most challenging situations. HDR X enables the camera to capture video with a wide dynamic range across different light levels and without HDR motion blur and artefacts on moving objects.
Fast moving objects are easily captured with frame rates of up to 60 frames per second. The camera's remote commissioning functionality makes sure installation and commissioning can be done in very little time. Using a PC or a mobile device with the Bosch Project Assistant app, you can pan, tilt, roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens.
Key features
- Motorized Pan, Tilt, Roll, and Zoom (PTRZ) to set the required field of view, without having to touch the camera or lens allows for remote configuration and commissioning
- Starlight X technology with 1/1.8 HD 1080p sensor for next level low-light performance with maximum detail
- HDR X technology for wide dynamic range
- Frame rates up to 60 fps for fast-moving objects
- Remote commissioning via PC or mobile app
- PTRZ functionality for easy camera adjustment
- 4.4-10mm lens for versatile viewing angles
- IP54 rating for dust and water resistance
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Interfaces/ports
Lens
Network & communication
Physical characteristics
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Bosch |
|---|---|
| Manufacturer Part Number | F.01U.393.108 |
| Product Series | IP indoor 8000i |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Horizontal, Vertical |
| Maximum Aperture | f/1.3 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 4.40mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 2.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP54 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -20°C |
| Operating Humidity | 93% |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Lens Included | Yes |
|---|---|
| Maximum Focal Length | 10.00mm |
| Minimum Aperture | f/1.97 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 177.00mm |
| Durability | Dust Resistant, Impact Resistant, Water Resistant |
| Form Factor | Dome |
| Height | 148.00mm |
| Material | Aluminum, PC |
| Weight | 2.04kg |
Product information
| Mount Type | Surface Mount |
|---|
Storage
| Recording Formats | H.264, H.265 (HEVC) |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1920 x 1080 |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | Cross Line Detection, Day/Night, Human Detection, Ingress Protection, Mirror, Noise Reduction, Region of Interest, Vehicle Detection, Video Content Analytics, Wide Dynamic Range |
| Impact protection | IK10 |
| Indoor or outdoor use | Indoor |
Attributes
| Weight | 2.04kg |
|---|
Bosch F.01U.393.108 fixed dome camera, 2MP
