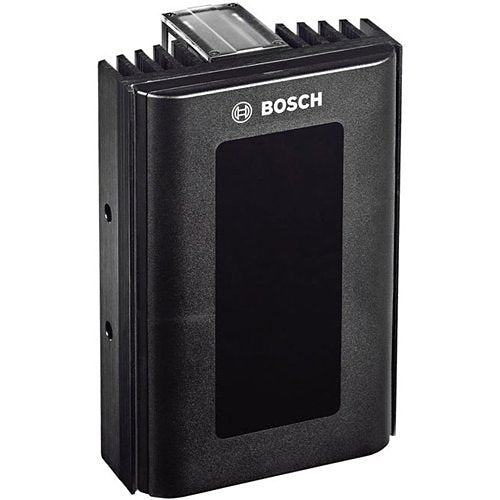

Bosch F.01U.319.318 infrared illuminator, IP66

Free Delivery
£ 639 82
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Bosch F.01U.319.318 is an infrared illuminator.

The infrared illuminator provides covert or semi-covert lighting for long-range indoor and outdoor surveillance applications. IR illumination dramatically improves night-time imaging, and reduces noise and bit rates.The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes. The self-cleaning window reduces maintenance requirements.

Specifically designed for energy efficient operation, the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply for faster, flexible, cost effective installations. System overview

Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management, long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling.

Easy access to power and photo cell adjustment facilitates quick and easy installation.

Key features

  • Adjustable IR intensity
  • Integrated adjustable photocell
  • Interchangeable beam pattern diffusers to match beam to camera
  • Self-cleaning lens coating technology
  • Telemetry input and photocell output for external switching
  • The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes.
  • The self-cleaning window reduces maintenance requirements. Specifically designed for energy efficient operation, the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply for faster, flexible, cost effective installations.System overviewEnergy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption.
  • Advanced electronic control circuitry delivers improved thermal management, long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling. Easyaccess to power and photo cell adjustment facilitates quick and easy installation.
  • A pressure equalization valve prevents thermal expansion and pressure cycling. Easyaccess to power and photo cell adjustment facilitates quick and easy installation.
  • Easyaccess to power and photo cell adjustment facilitates quick and easy installation.

If you are matching this to an existing installation, work from the F.01U.319.318 part number rather than the description.

£ 639 82
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£639.82 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Bosch
Manufacturer Part Number
F.01U.319.318
Product Type
Infrared Illuminator
Certifications
CE marking
Yes
Ingress protection
IP66
General information
Application/Usage
Surveillance
Packaged Quantity
1
Miscellaneous
Environmental status
Yes
Features
IP66, Robust, Surface Mount
Indoor or outdoor use
Indoor, Outdoor
Package Contents
Illuminator, 940nm, Long Range Bracket 5 x Beam Pattern Diffusers 1 x Installation Guide
Physical characteristics
Colour
Black
Depth
74.90mm
Durability
Vandal Resistant
Height
161.50mm
Material
Anodized Aluminum, Polycarbonate
Weight
1.40kg
Width
110.00mm
Power description
Power Source
AC Power, DC Power
Attributes
Package Contents
Illuminator, 940nm, Long Range Bracket 5 x Beam Pattern Diffusers 1 x Installation Guide
Power Source
AC Power, DC Power
Weight
1.40kg
Specifications
Certifications
General information
Miscellaneous
Physical characteristics
Power description
Attributes

Specifications

Brand Name Bosch
Manufacturer Part Number F.01U.319.318
Product Type Infrared Illuminator

Certifications

CE marking Yes
Ingress protection IP66

General information

Application/Usage Surveillance
Packaged Quantity 1

Miscellaneous

Environmental status Yes
Features IP66, Robust, Surface Mount
Indoor or outdoor use Indoor, Outdoor
Package Contents Illuminator, 940nm, Long Range Bracket 5 x Beam Pattern Diffusers 1 x Installation Guide

Physical characteristics

Colour Black
Depth 74.90mm
Durability Vandal Resistant
Height 161.50mm
Material Anodized Aluminum, Polycarbonate
Weight 1.40kg
Width 110.00mm

Power description

Power Source AC Power, DC Power

Attributes

Package Contents Illuminator, 940nm, Long Range Bracket 5 x Beam Pattern Diffusers 1 x Installation Guide
Power Source AC Power, DC Power
Weight 1.40kg

Bosch F.01U.319.318 infrared illuminator

Bosch F.01U.319.318 infrared illuminator, IP66

Who this is for

For the installer — this is the infrared illuminator supplied under Bosch part number F.01U.319.318. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an infrared illuminator made by Bosch. The part number F.01U.319.318 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this infrared illuminator is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact infrared illuminator I have been quoted? Check the manufacturer part number F.01U.319.318 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against F.01U.319.318 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
