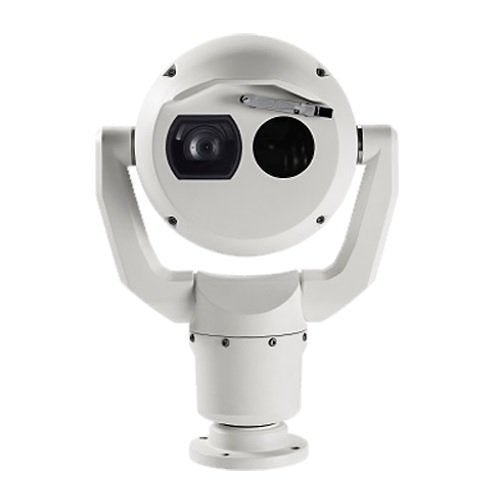

Bosch F.01U.368.932 IP PTZ camera, 2MP
Free Delivery
£
31,649
06
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Bosch F.01U.368.932 is an IP PTZ camera from the IP FUSION 9000i range.
The MIC IP fusion 9000i camera is an advanced PTZ surveillance platform designed to provide early detection in mission-critical applications. With its dual visible/thermal imaging capabilities, the MIC IP fusion 9000i camera is the perfect solution for robust and high-quality imaging needs. The camera’s distinctive, ruggedized design is wellsuited for extreme environments and adverse weather conditions such as high winds, rain, fog, ice, and snow.
Precision engineered using Bosch’s domain expertise in material and mechanical engineering, the camera offers the most advanced imaging and positioning system solution available on the market.
Key features
- Ruggedized IP PTZ camera with high performance thermal imager and HD visible imager sitting side-by-side
- Designed to provide the highest availability of useable images regardless of lighting conditions in extreme environments (weather, dust/debris/smoke, etc.)
- Unique metadata fusion feature provides the ultimate in situation awareness
- Exceptional early detection capabilities: Object detection up to 4517 m (14,820 ft) based on DRI criteria
- Advanced on-board intelligent video tracking, object detection even when camera is on tours
-
Download
- F.01U.368.932 — Product Manual
£
31,649
06
Price
Technical Details
Specifications
Brand Name
Bosch
Manufacturer Part Number
F.01U.368.932
Product Series
IP FUSION 9000i
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Lens Type
Varifocal
Maximum Aperture
f/1.6
Maximum Frame Rate
60fps
Minimum Focal Length
4.30mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Optical Zoom
30.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Camera
Image Sensor Type
Exmor R CMOS
Certifications
Ingress protection
IP68
Display & graphics
Maximum video resolution
1920 x 1080
Number of Sensors
2
Environmental conditions
Maximum Operating Temperature
65°C
Minimum Operating Temperature
-40°C
Operating Humidity
100%
Exposure
Longest Shutter Speed
1/1 Second
Shortest Shutter Speed
1/30000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Lens Included
Yes
Maximum Focal Length
129.00mm
Maximum Thermal Focal Length
50.00mm
Minimum Aperture
f/4.7
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Depth
181.00mm
Durability
Corrosion Resistant
Height
298.00mm
Weight
9.00kg
Width
421.00mm
Power description
Input Voltage
21V AC, 30V AC, 56V DC
Product information
Mount Type
Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Miscellaneous
Environmental status
Yes
Features
Audio Compression, Auto Tracking, Day/Night, Gain Control, Human Detection, Noise Reduction, Region of Interest, SD Card Local Storage, Video Management System, White Balance
Attributes
Input Voltage
21V AC, 30V AC, 56V DC
Weight
9.00kg
Impact protection
IK10
Specifications
| Brand Name | Bosch |
|---|---|
| Manufacturer Part Number | F.01U.368.932 |
| Product Series | IP FUSION 9000i |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 4.30mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 30.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
Camera
| Image Sensor Type | Exmor R CMOS |
|---|
Certifications
| Ingress protection | IP68 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|---|
| Number of Sensors | 2 |
Environmental conditions
| Maximum Operating Temperature | 65°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 100% |
Exposure
| Longest Shutter Speed | 1/1 Second |
|---|---|
| Shortest Shutter Speed | 1/30000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Lens Included | Yes |
|---|---|
| Maximum Focal Length | 129.00mm |
| Maximum Thermal Focal Length | 50.00mm |
| Minimum Aperture | f/4.7 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 181.00mm |
| Durability | Corrosion Resistant |
| Height | 298.00mm |
| Weight | 9.00kg |
| Width | 421.00mm |
Power description
| Input Voltage | 21V AC, 30V AC, 56V DC |
|---|
Product information
| Mount Type | Wall Mount |
|---|
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | Audio Compression, Auto Tracking, Day/Night, Gain Control, Human Detection, Noise Reduction, Region of Interest, SD Card Local Storage, Video Management System, White Balance |
Attributes
| Input Voltage | 21V AC, 30V AC, 56V DC |
|---|---|
| Weight | 9.00kg |
| Impact protection | IK10 |
