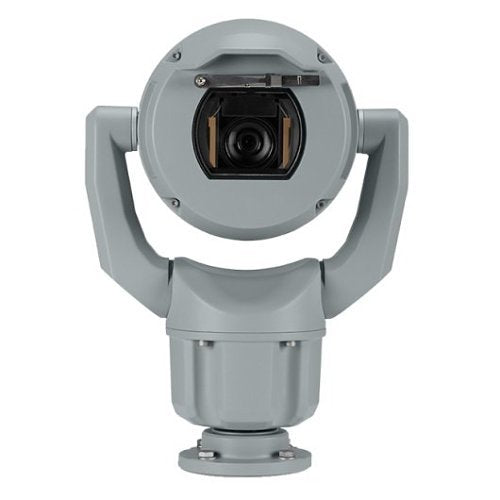

Bosch F.01U.386.568 IP PTZ camera, 8MP
Free Delivery
£
9,412
43
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Bosch F.01U.386.568 is an IP PTZ camera from the inteox 7100i range.
The MIC inteox 7100i camera is an advanced PTZ surveillance platform "driven by OSSA", ensuring seamless connectivity with the Azena Application Store to add easily third-party software apps that meet customer-specific requirements. With starlight imaging technology and excellent lowlight sensitivity, the camera is the perfect solution for robust and high-quality imaging needs for missioncritical applications. The camera's ruggedized design meets customer expectations in demanding environments that exceed the capabilities of conventional IP cameras.
Even in installations subject to harsh shock/vibration conditions and/or extreme weather, the camera provides high-quality video images.
Key features
- UHD “4K” resolution (3840 x 2160 pixels) @ 30fps, 12x zoom with Optical Image Stabilization (OIS)
- Exceptional strength and ruggedness for any outdoor application including traffic monitoring (bridges, tunnels, or highways), perimeter protection, city surveillance, and mining
- Built-in Camera Trainer to train the camera to recognize user-specified target objects, such as moving and non-moving objects, to alert operators of unusual scene activity
- Edge intelligence with Intelligent Tracking and object detection even when the camera is moving
- Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field to avoid dark spots or an over-illuminated scene
£
9,412
43
Price
Technical Details
Specifications
Brand Name
Bosch
Manufacturer Part Number
F.01U.386.568
Product Series
inteox 7100i
Product Type
Network Camera
General information
Packaged Quantity
1
Technical information
Connectivity Technology
Wired
Effective resolution
8MP
Lens Type
Varifocal
Maximum Aperture
f/2.8
Maximum Frame Rate
30fps
Minimum Focal Length
9.30mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Optical Zoom
12.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Camera
Image Sensor Type
Exmor R CMOS
Certifications
Ingress protection
IP66, IP67, IP68
Environmental conditions
Maximum Operating Temperature
65°C
Minimum Operating Temperature
-40°C
Operating Humidity
100%
Exposure
Longest Shutter Speed
1/1 Second
Shortest Shutter Speed
1/10000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Lens Included
Yes
Maximum Focal Length
111.60mm
Minimum Aperture
f/4.5
Network & communication
Remote Management
Yes
Physical characteristics
Colour
Silver
Depth
210.70mm
Durability
Corrosion Resistant, Impact Resistant
Height
400.30mm
Weight
8.70kg
Width
287.90mm
Power description
Input Voltage
24V AC, 56V DC
Product information
Mount Type
Conduit Box Mount, Corner Mount, Pole Mount, Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Environmental status
Yes
Features
Audio Compression, Day/Night, Dynamic Noise Reduction, Multi-view Stream, Privacy Masking, Region of Interest, SD Card Local Storage, Video Management System, White Balance, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
24V AC, 56V DC
Weight
8.70kg
Specifications
| Brand Name | Bosch |
|---|---|
| Manufacturer Part Number | F.01U.386.568 |
| Product Series | inteox 7100i |
| Product Type | Network Camera |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 8MP |
| Lens Type | Varifocal |
| Maximum Aperture | f/2.8 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 9.30mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 12.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
Camera
| Image Sensor Type | Exmor R CMOS |
|---|
Certifications
| Ingress protection | IP66, IP67, IP68 |
|---|
Environmental conditions
| Maximum Operating Temperature | 65°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 100% |
Exposure
| Longest Shutter Speed | 1/1 Second |
|---|---|
| Shortest Shutter Speed | 1/10000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Lens Included | Yes |
|---|---|
| Maximum Focal Length | 111.60mm |
| Minimum Aperture | f/4.5 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Silver |
|---|---|
| Depth | 210.70mm |
| Durability | Corrosion Resistant, Impact Resistant |
| Height | 400.30mm |
| Weight | 8.70kg |
| Width | 287.90mm |
Power description
| Input Voltage | 24V AC, 56V DC |
|---|
Product information
| Mount Type | Conduit Box Mount, Corner Mount, Pole Mount, Wall Mount |
|---|
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | Audio Compression, Day/Night, Dynamic Noise Reduction, Multi-view Stream, Privacy Masking, Region of Interest, SD Card Local Storage, Video Management System, White Balance, Wide Dynamic Range |
| Impact protection | IK10 |
| Indoor or outdoor use | Indoor, Outdoor |
Attributes
| Input Voltage | 24V AC, 56V DC |
|---|---|
| Weight | 8.70kg |
