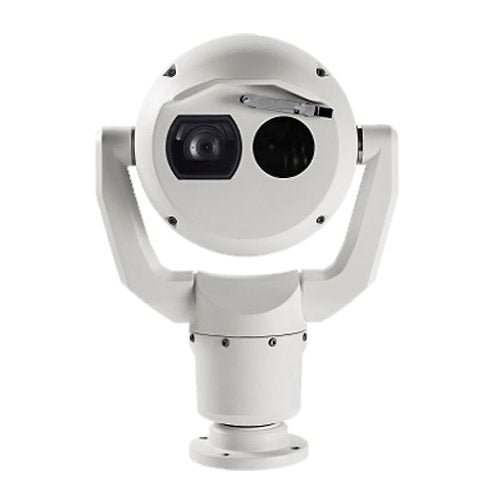

Bosch F.01U.398.557 IP PTZ camera, 2MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Bosch F.01U.398.557 is an IP PTZ camera from the IP FUSION 9000i range.
The MIC IP fusion 9000i camera is an advanced PTZ surveillance platform designed to provide early detection in mission-critical applications. With its dual visible/thermal imaging capabilities, the MIC IP fusion 9000i camera is the perfect solution for robust and high-quality imaging needs. The camera’s distinctive, ruggedized design is wellsuited for extreme environments and adverse weather conditions such as high winds, rain, fog, ice, and snow.
Precision engineered using Bosch’s domain expertise in material and mechanical engineering, the camera offers the most advanced imaging and positioning system solution available on the market.
Key features
- Ruggedized IP PTZ camera with high performance thermal imager and HD visible imager sitting side-by-side
- Designed to provide the highest availability of useable images regardless of lighting conditions in extreme environments (weather, dust/debris/smoke, etc.)
- Unique metadata fusion feature provides the ultimate in situation awareness
- Exceptional early detection capabilities: Object detection up 800 m (2625 ft) based on DRI criteria
- Advanced on-board intelligent video tracking, object detection even when camera is on tours
- Advanced PTZ surveillance platform
- Precision engineered by Bosch
- Ideal for mission-critical applications
-
Download
- F.01U.398.557 — Product Manual
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Bosch |
|---|---|
| Manufacturer Part Number | F.01U.398.557 |
| Product Series | IP FUSION 9000i |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 4.30mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 30.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
Camera
| Image Sensor Type | Exmor R CMOS |
|---|
Certifications
| Ingress protection | IP66, IP67, IP68 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|---|
| Number of Sensors | 2 |
Environmental conditions
| Maximum Operating Temperature | 65°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 100% |
Exposure
| Longest Shutter Speed | 1/1 Second |
|---|---|
| Shortest Shutter Speed | 1/30000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Lens Included | Yes |
|---|---|
| Maximum Focal Length | 129.00mm |
| Maximum Thermal Focal Length | 9.00mm |
| Minimum Aperture | f/4.7 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 181.00mm |
| Durability | Impact Resistant |
| Height | 298.00mm |
| Weight | 9.00kg |
| Width | 421.00mm |
Power description
| Input Voltage | 21V AC, 30V AC, 56V DC |
|---|
Storage
| Recording Formats | H.264, H.265 (HEVC) |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | Audio Compression, Day/Night, Dynamic Noise Reduction, Multi-view Stream, Privacy Masking, Region of Interest, SD Card Local Storage, Video Management System, White Balance, Wide Dynamic Range |
Attributes
| Input Voltage | 21V AC, 30V AC, 56V DC |
|---|---|
| Weight | 9.00kg |
| Impact protection | IK10 |
